PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 120 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		407 ± 2 hli (16.02 nti) 174 ± 2 hli (6.85 nti) 238 ± 2 hli (9.37 nti) 238 ± 2 hli (9.37 nti)
Qhov hnyav				Kwv yees li. 35.5Kg (78.26 lbs)
Standard Terminal				Bolt-thiab-ntsuab terminal Bolt hom: M6
						Shimastu NP series AGM VRLA Roj teeb tau tsim los ua cov roj teeb uas muaj lub hom phiaj, lawv yog cov roj teeb tswj cov kua qaub uas muaj cov khoom zoo. Absorbed Glass Mat (AGM) cov khoom sib cais & cov ntaub ntawv siab purity raw, tshwj xeeb los ntawm kev ua tau zoo zoo thiab txhim khu kev qha standby kev pab cuam lub neej. Nta: 1.Ntawm-spillable 2.Sealed and Maintenance-free Operation 3.Qhov zoo thiab kev ntseeg siab 4. Tsawg gassing, qis tus kheej tso tawm 5. Tsawg sab hauv tsis kam 6.Long tsim lub neej mus txog 10 xyoo hauv kev pabcuam ntab ntawm 25 degree (77 0F)
ELECTRICAL SPECIFICATION

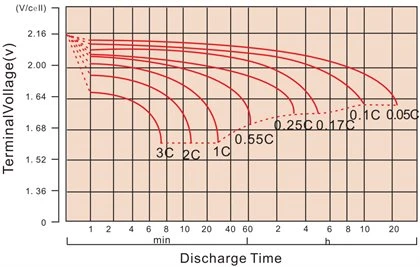

Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (12A) 5 teev tus nqi (20.4A) 3 teev tus nqi (30A) 1 teev tus nqi (72A)		120 Aw 102 Aw 90 aw ah 72 aw ah
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104 0F) 25 degree (77 0F) 0 degree (32 0F)		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			1200A (5 sec)
Short Circuit Current			2220A
Internal Resistance			Lub roj teeb them tag nrho (25 degree ,77 0F) 5.2mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam sim no tsawg dua 30A Voltage 14.1 ~ 14.4V ntawm 25 degree (77 0F) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77 0F) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	280.7	220.1	131.3	74.4	34.0	22.7	15.3	12.7	6.62
1.65V	258.1	210.4	126.1	71.6	32.9	22.1	15.1	12.5	6.53
1.70V	237.6	197.1	120.6	68.9	32.0	21.5	14.8	12.3	6.44
1.75V	217.5	183.5	115.2	66.0	31.0	21.0	14.6	12.2	6.36
1.80V	196.9	169.4	110.2	63.6	30.0	20.4	14.4	12.0	6.30
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	464.4	384.8	238.6	139.9	64.8	43.9	30.0	25.1	13.0
1.65V	447.3	373.3	231.5	135.3	63.1	42.7	29.5	24.7	12.8
1.70V	419.3	354.8	223.5	131.0	61.6	41.8	29.1	24.3	12.7
1.75V	390.7	335.1	215.6	126.3	60.1	40.9	28.7	24.0	12.6
1.80V	359.8	313.9	208.4	122.4	58.2	39.9	28.4	23.6	12.5

Cim npe nrov: agm leisure roj teeb 120ah, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, kev cai, lag luam wholesale, nqe, ntshuam, ua nyob rau hauv Suav teb

Shimastu agm leisure roj teeb 120ah ua tau raws li IEC, JIS, BS thiab EU cov qauv kev xeem, muaj cov txheej txheem siab tshaj plaws ntawm kev sib khi tshuab thiab daim phiaj hlau zoo, thiab muaj kev tiv thaiv corrosion zoo; Tus kheej tsim additives yog ntxiv, uas muaj cov yam ntxwv ntawm lub neej ntev thiab txhim khu kev qha kev pab cuam lub neej thiab zoo sib xws ntawm tag nrho cov pab pawg neeg.

Nta

Lub roj teeb 12V120Ah uas yog lub valve tswj kev saib xyuas dawb lead-acid roj teeb nrog cov thev naus laus zis tshiab thiab electrolyte adsorbed ntawm AGM cais.

1) AGM txheej txheem: cov electrolyte yog tas mus li adsorbed nyob rau hauv lub iav fiber muab faib tsis ntws electrolyte. AGM separator tuaj yeem txo cov electrolyte stratification thiab txo cov roj teeb tus kheej tawm.

2) Muaj cov pa oxygen recombination cov tshuaj tiv thaiv hauv lub roj teeb, uas tuaj yeem txo cov dej haus hauv lub roj teeb lub neej, tiv thaiv kab sib chaws zoo thiab txo kev xeb.

3) Nrog lub siab sib dhos ntawm pawg phaj, cov khoom siv kho tshuab thiab tshuaj lom neeg n

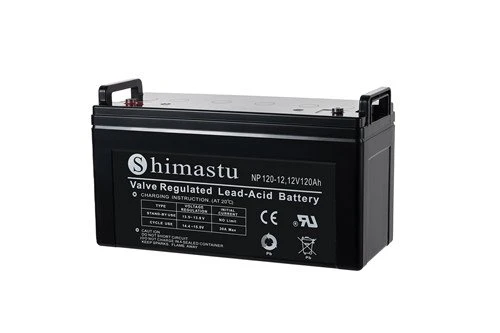

AGM Leisure Battery 120Ah
