PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 26 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		175 ± 1 hli (6.89 nti) 165 ± 1 hli (6.50 nti) 126 ± 1 hli (4.96 nti) 126 ± 1 hli (4.96 nti)
Qhov hnyav				Kwv yees li. 8.4 Kg ± 3% (18.52 lbs)
Standard Terminal				Bolt-thiab-ntsuab terminal Bolt Hom: M5
						Shimastu NP series AGM VRLA Roj teeb tau tsim los ua cov roj teeb lub hom phiaj, lawv yog cov roj teeb tswj cov kua qaub uas muaj cov khoom zoo Absorbed iav Mat (AGM) cov khoom sib cais & cov khoom siv purity siab, tshwj xeeb los ntawm kev ua tau zoo thiab txhim khu kev qha kev pabcuam lub neej. Nta: 1.Ntawm-spillable 2.Sealed and Maintenance-free Operation 3.Qhov zoo thiab kev ntseeg siab 4. Tsawg gassing, qis tus kheej tso tawm 5. Tsawg sab hauv tsis kam 6.Long tsim lub neej mus txog 8 xyoo hauv kev pabcuam ntab ntawm 25 degree (77⁰F )
ELECTRICAL SPECIFICATION

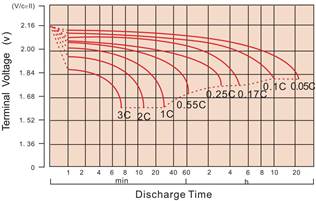

Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (2.6A) 5 teev tus nqi (4.42A) 3 teev tus nqi (6.5A) 1 teev tus nqi (14.26A)		26 Aw 22 Aw 19.5 Nws 14.3 Nws
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			260A (5 sec)
Short Circuit Current			900A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 10mΩ

Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam sim no tsawg dua 6.5A Voltage 14.1 ~ 14.4V ntawm 25 degree (77⁰F ) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77⁰F ) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	94.00	66.43	48.02	28.44	15.92	7.34	4.91	2.75	1.43
1.65V	87.40	62.77	45.91	27.34	15.36	7.11	4.77	2.71	1.41
1.70V	78.86	57.80	43.00	26.16	14.81	6.92	4.66	2.67	1.39
1.75V	70.66	52.89	40.02	24.98	14.26	6.70	4.54	2.63	1.38
1.80V	62.04	47.89	36.94	23.87	13.79	6.50	4.42	2.60	1.36
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	155.8	112.9	83.93	51.68	29.93	13.99	9.48	5.42	2.80
1.65V	146.6	108.8	81.45	50.19	29.04	13.63	9.23	5.31	2.76
1.70V	135.3	102.0	77.43	48.49	28.17	13.32	9.03	5.24	2.73
1.75V	123.9	95.00	73.10	46.78	27.28	12.99	8.84	5.20	2.72
1.80V	111.1	87.50	68.44	45.17	26.51	12.62	8.64	5.11	2.70

Cim npe nrov: 12v26ah rau thaum muaj xwm ceev backup fais fab mov, Tuam Tshoj 12v26ah rau thaum muaj xwm ceev backup fais fab mov manufacturers, lwm tus neeg, Hoobkas

Nqe lus piav qhia:

Qauv: NP{0}}(12V26AH)

Hom Lub Npe: Shimastu

Keeb kwm: Suav teb

OEM Orders: Txais

Voltage ib txwm: 12V

Rated Peev Xwm: 26Ah

Qhov hnyav (kwv yees): 8.4KGS

Qhov Loj (hli): 175 * 165 * 126 * 126 (± 1)

Nta

● Lub 12V26AH Rau Kev Siv Hluav Taws Xob Thaum Muaj Xwm Ceev siv cov ntaub ntawv zoo thiab cov txheej txheem tsim khoom siab heev kom ntseeg tau tias lawv tuaj yeem tiv taus cov xwm txheej kub ntxhov, suav nrog hluav taws xob hluav taws xob thiab huab cua huab cua. Thib ob, peb cov khoom muaj ntau yam zoo. Nws tuaj yeem siv rau ntau yam kev siv xws li lub zog thaub qab rau tsev, kev lag luam thiab txawm tias tsheb. Lub roj teeb tuaj yeem txuas nrog lub inverter lossis lwm yam khoom siv uas hloov cov hluav taws xob ncaj qha uas nws ua rau hloov tam sim no, uas yog siv los khiav cov khoom siv hluav taws xob thiab lwm yam khoom siv hluav taws xob. Qhov tseem ceeb tshaj, peb tau txais cov thev naus laus zis tshiab ntawm kev tsim cov roj teeb kom txo tau qhov muaj kuab paug thib ob ntawm cov phaj txhuas thiab txhim kho qhov sib xws ntawm lub roj teeb. Thaum kawg, peb muaj ntau lwm yam nta uas ua rau nws yog ib qho kev xaiv txaus nyiam rau thaum muaj xwm ceev backup hwj chim.

Daim ntawv thov

Qhov no 12V26AH Rau Kev Pabcuam Thaum Muaj Xwm Ceev Backup Power Supply yog tsim rau ntau yam kev siv, suav nrog kev siv hauv tsev, chaw ua haujlwm, tsev kho mob, thiab lwm qhov chaw tseem ceeb uas yuav tsum muaj lub zog thaub qab. Nws muaj cov qauv compact, yooj yim nqa, thiab yooj yim rau khaws thiab thauj. Qhov thib ob, peb siv cov roj teeb ua haujlwm siab uas tuaj yeem muab lub zog ruaj khov thaum lub sijhawm siv hluav taws xob ntev. Nws kuj muaj cov yam ntxwv kev nyab xeeb siab heev, suav nrog kev tiv thaiv overcharging thiab tso tawm, kom ntseeg tau tias muaj kev nyab
