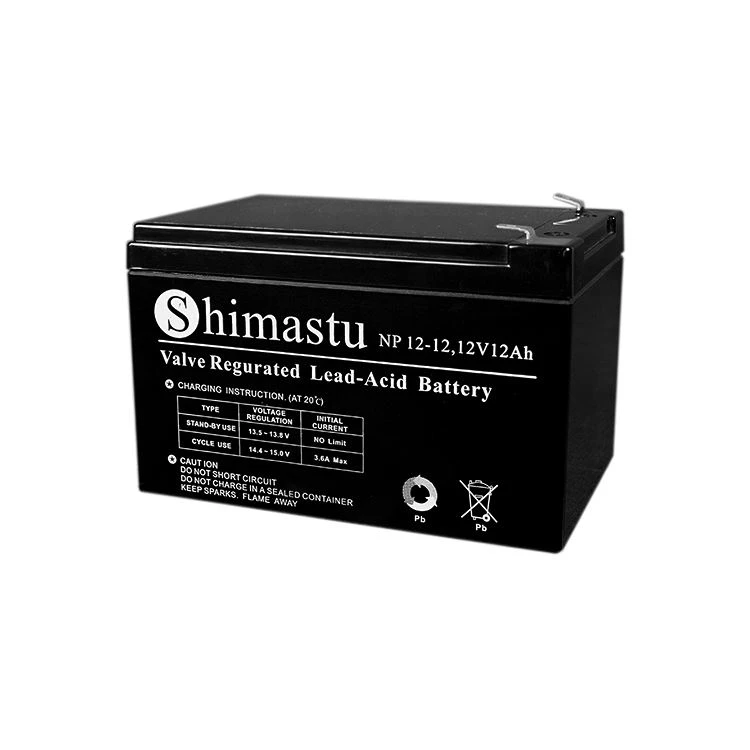

12 volt roj teeb thaum muaj xwm ceev

12 volt roj teeb thaum muaj xwm ceev

Kev kho tsis pub dawb, tsis muaj dej nchuav thaum muaj xwm txheej ceev roj teeb 12 volt kaw cov kua qaub (SLA) hloov roj teeb. Siv feem ntau hauv cov dej num hnyav lossis chaw teeb pom kev xwm txheej ceev & Cov Ntawv Qhia Tawm.

Xa kev nug

image006.jpg image004

PHYSICAL SPECIFICATION

Nominal voltage
Nominal Peev Xwm (20HR)

12V

12 Aw


Dimension

Ntev
Dav
Thawv qhov siab
Tag nrho qhov siab

151 ± 1 hli (5.94 nti)

98 ± 1 hli (3. {3}} ntiv tes)

95 ± 1 hli (3.74 nti)

100 ± 1 hli (3.94 nti)

Qhov hnyav

Kwv yees li. 3.35 Kg ± 3% (7.39 lbs)

Standard Terminal

Fasten Tab No.250E(F2)

image010image012


Shimastu NP series AGM VRLA Roj teeb tau tsim los ua cov roj teeb uas muaj lub hom phiaj, lawv yog cov roj teeb tswj cov kua qaub uas muaj cov khoom zoo. Absorbed iav Mat (AGM) cov khoom sib cais & cov ntaub ntawv purity siab, tshwj xeeb los ntawm kev ua haujlwm zoo kawg nkaus thiab txhim khu kev qha kev pabcuam lub neej.
Nta:
1.Ntawm-spillable
2.Sealed and Maintenance-free Operation
3.Qhov zoo thiab kev ntseeg siab
4. Tsawg gassing, qis tus kheej tso tawm
5. Tsawg sab hauv tsis kam
6.Long tsim lub neej mus txog 6 xyoo hauv kev pabcuam ntab ntawm 25 degree
(77 0F )­

ELECTRICAL SPECIFICATION

Yam ntxwv

Tshem tawm curves @ 25 degree (77 degree F)

Muaj peev xwm

20 teev tus nqi (0.6A)

10 teev tus nqi (1.122A)

5 teev tus nqi (2.04A)

3 teev tus nqi (3.0A)

1 teev tus nqi (6.6A)

12 Aw

11.2 Aw

10.2 Aw

9. 0Aw

6.6 aw


Muaj peev xwm cuam tshuam
los ntawm qhov kub thiab txias

40 degree (1040F）

25 degree (770F）

0 degree (320F）

102 feem pua

100 feem pua

85 feem pua

Max tawm tam sim no

120A (5 sec)

Short Circuit Current

560A

Internal Resistance

Lub roj teeb tag nrho (25 degree, 770F) 25mΩ

Tsis tu ncua Voltage
Them nqi

Lub voj voog

Pib Them Tam Sim No tsawg dua 3.6A

Voltage 14.4 ~ 15. 0V ntawm 25 degree (770F )

Kub Coefficient -30mV / degree

Standby

Tsis muaj kev txwv rau Initial Charging Current

Voltage 13.5 ~ 13.8V ntawm 25 degree (770F )

Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree

FV/TSI

5 MIN

10 MIN

15 MIN

30 MIN

1 HR

3 HR

5 HR

10 HR

20 HR

1.60V

44.24

31.59

23.06

13.25

7.344

3.381

2.261

1.182

0.624

1.65V

41.13

29.85

22.05

12.72

7.093

3.276

2.203

1.170

0.613

1.70V

37.12

27.49

20.65

12.15

6.852

3.189

2.146

1.150

0.606

1.75V

33.26

25.16

19.22

11.62

6.600

3.092

2.094

1.135

0.600

1.80V

29.20

22.76

17.76

11.11

6.348

3.000

2.040

1.122

0.595

Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree

FV/TSI

5 MIN

10 MIN

15 MIN

30 MIN

1 HR

3 HR

5 HR

10 HR

20 HR

1.60V

73.340

53.700

40.310

24.050

13.800

6.457

4.357

2.324

1.228

1.65V

68.970

51.710

39.110

23.340

13.400

6.282

4.262

2.303

1.209

1.70V

63.670

48.500

37.180

22.510

13.030

6.144

4.165

2.267

1.197

1.75V

58.300

45.190

35.100

21.760

12.630

5.982

4.079

2.240

1.186

1.80V

52.280

41.590

32.890

21.010

12.210

5.827

3.988

2.216

1.178

Cim npe nrov: Tuam Tshoj 12 volt thaum muaj xwm ceev roj teeb manufacturers, lwm tus neeg, Hoobkas

Nyob rau niaj hnub no lub ntiaj teb ceev ceev, hloov pauv mus ib txhis, kev nkag mus rau lub hwj chim ntseeg tau yog qhov tseem ceeb. Txawm hais tias koj muaj qhov xwm txheej tsis zoo xws li hluav taws xob tam sim ntawd lossis lub tsheb tso tseg, lossis koj tsuas yog xav tau lwm txoj kev siv hluav taws xob rau koj cov dej num sab nraum zoov, 12 volt roj teeb thaum muaj xwm ceev tuaj yeem ua rau koj txoj sia. Ua ntej, peb cov khoom tau paub txog lawv txoj kev txav mus los. Nws yog compact thiab hnav, tso cai rau koj mus nqa tau yooj yim nyob ib ncig ntawm. Qhov no ua rau nws zoo tagnrho rau siv ntau yam xwm txheej, los ntawm kev mus pw hav zoov thiab noj mov rau thaum muaj xwm txheej ceev. Koj tuaj yeem khaws nws yooj yim hauv koj lub tsheb, hnab ev ntawv lossis cov khoom siv thaum muaj xwm ceev. Nws qhov kev txav tau yooj yim ua kom ntseeg tau tias koj ib txwm npaj txhij rau txhua qhov kev xav tau hluav taws xob poob lossis teeb meem.


Nominal voltage: 12V
Peev Xwm: los ntawm 0.8AH txog 250AH
Tsim Lub Neej: 6 ~ 10 xyoo hauv kev pabcuam ntab ntawm 25 degree (77 0F)


Daim ntawv thov

Lwm qhov tshwj xeeb ntawm 12 volt roj teeb thaum muaj xwm ceev yog lawv ntau yam. Cov cuab yeej muaj ntau yam kev siv thiab tuaj yeem ua tau raws li qhov xav tau sib txawv. Nws feem ntau yog siv los dhia pib lub tsheb nrog lub roj teeb tsis ua haujlwm. Los ntawm kev txuas lub roj teeb lub davhlau ya nyob twg mus rau qhov sib thooj terminals hauv koj lub tsheb, koj tuaj yeem tsis txhob raug tso tseg ntawm txoj kev uas muaj suab puam lossis hauv huab cua huab cua. Tsis tas li ntawd, lub roj teeb no tuaj yeem siv hluav taws xob ntau yam khoom siv hluav taws xob thiab khoom siv, suav nrog xov tooj, xov tooj cua, GPS, thiab txawm tias lub teeb mus pw hav zoov.


Yam ntxwv

Ib qho txiaj ntsig tseem ceeb tshaj plaws ntawm peb cov khoom yog lawv cov khoom siv
