Electric Scooter Lead Acid Roj teeb

Shimastu hluav taws xob scooter lead acid roj teeb yog cov hlau lead-dioxide tshuab. Lub dilute sulfuric acid electrolyte yog absorbed los ntawm separators thiab yog li immobilized.Yuav tsum lub roj teeb yuav tsum tsis txhob overcharged ua bydrogen thiab oxygen, Tshwj xeeb ib-txoj kev li qub tso cai rau cov gases kom dim yog li tsis txhob muaj siab build-up.

Xa kev nug


PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 24 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		175 ± 2 hli (6.89 nti) 165 ± 2 hli (6.50 nti) 126 ± 2 hli (4.96 nti) 126 ± 2 hli (4.96 nti)
Qhov hnyav				Kwv yees li. 8 Kg ± 3% (17.63 lbs)
Standard Terminal				Bolt-thiab-ntsuab terminal Bolt Hom: M5
						Shimastu NP series AGM VRLA Roj teeb tau tsim los ua cov roj teeb uas muaj lub hom phiaj, lawv yog cov roj teeb tswj cov kua qaub uas muaj cov khoom zoo. Absorbed iav Mat (AGM) cov khoom sib cais & cov ntaub ntawv purity siab, tshwj xeeb los ntawm kev ua haujlwm zoo kawg nkaus thiab txhim khu kev qha kev pabcuam lub neej. Nta: 1.Ntawm-spillable 2.Sealed and Maintenance-free Operation 3.Qhov zoo thiab kev ntseeg siab 4. Tsawg gassing, qis tus kheej tso tawm 5. Tsawg sab hauv tsis kam 6.Long tsim lub neej mus txog 8 xyoo hauv kev pabcuam ntab ntawm 25 degree (77 0F)
ELECTRICAL SPECIFICATION

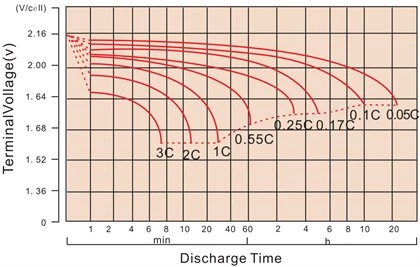

Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (2.4A) 5 teev tus nqi (4.08A) 3 teev tus nqi (6A) 1 teev tus nqi (13.16A)		24 Aw 20.4 Aws 18 Aw 13.2 Aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			240A (5 sec)
Short Circuit Current			850A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 10mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No tsawg dua 6A Voltage 14.1 ~ 14.4V ntawm 25 degree (77⁰F ) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77⁰F ) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	86.77	61.32	44.32	26.25	14.69	6.77	4.53	2.54	1.32
1.65V	80.68	57.94	42.38	25.24	14.18	6.56	4.41	2.50	1.30
1.70V	72.80	53.35	39.69	24.15	13.67	6.39	4.30	2.46	1.28
1.75V	65.23	48.83	36.94	23.05	13.16	6.19	4.19	2.43	1.27
1.80V	57.27	44.20	34.10	22.04	12.73	6.00	4.08	2.40	1.26
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	143.8	104.2	77.48	47.70	27.62	12.91	8.75	5.00	2.58
1.65V	135.3	100.4	75.18	46.33	26.81	12.58	8.52	4.91	2.55
1.70V	124.9	94.15	71.48	44.76	26.00	12.29	8.34	4.84	2.52
1.75V	114.3	87.70	67.48	43.18	25.19	11.99	8.16	4.80	2.51
1.80V	102.5	80.77	63.17	41.69	24.47	11.65	7.98	4.72	2.50

Cim npe nrov: hluav taws xob scooter lead acid roj teeb, Tuam Tshoj hluav taws xob scooter lead acid roj teeb manufacturers, lwm tus neeg, Hoobkas

Lub Electric Scooter Lead Acid Roj teeb yog paub txog lawv cov nqi pheej yig. Lead-acid roj teeb kuj tseem pheej yig piv rau lwm hom roj teeb ntawm lub khw, ua rau lawv xaiv rau cov tuam txhab hluav taws xob scooter. Qhov kev pheej yig no tsis yog tsuas yog pab cov tuam txhab txo cov nqi tsim khoom, tab sis nws kuj ua rau hluav taws xob scooters nkag mus rau ntau pawg. Lwm zoo feature ntawm nws yog nws durability. Cov roj teeb no muaj lub neej ntev thiab muaj peev xwm tiv taus ntau lub voj voog, ua rau lawv muaj peev xwm txhim khu kev qha rau hluav taws xob scooter. Tsis tas li ntawd, nws muaj zog heev rau kev co thiab kev poob siab, ua rau nws haum rau txhua hom av.

Nta

Lub Electric Scooter Lead Acid Battery paub txog lawv qhov kev ua haujlwm siab ntawm qhov kub thiab txias. Tsis zoo li lwm hom roj teeb uas degrade loj heev nyob rau hauv cov huab cua txias, nws muab ib tug ruaj khov zog tso zis. Qhov no tshwj xeeb tshaj yog muaj txiaj ntsig zoo rau cov neeg caij e-scooter hauv cov huab cua txias, vim nws ua kom muaj kev sib tw, tsis muaj kev cuam tshuam kev caij tsheb txhua xyoo. Tsis tas li ntawd, peb cov khoom tau paub txog lawv qhov yooj yim ntawm kev saib xyuas. Cov roj teeb no xav tau kev saib xyuas thiab kev saib xyuas me ntsis, ua rau lawv xaiv tsis muaj teeb meem rau cov tswv hluav taws xob scooter.

Daim ntawv thov

Fais Scooter Lead Acid Roj teeb yuav hnyav dua piv rau cov khoom, cuam tshuam rau tag nrho qhov hnyav thiab maneuverability ntawm hluav taws xob scooter. Txawm li cas los xij, cov neeg tsim khoom ua haujlwm tsis tu ncua los txo qhov hnyav ntawm cov roj ntsha lead-acid yam tsis muaj kev cuam tshuam lawv cov kev ua tau zoo, txhawm rau kov yeej qhov kev txwv no. Tag nrho cov nyob rau hauv tag nrho cov, hluav taws xob scooters siv nws cov yam ntxwv los ua nws tus nqi-zoo, ruaj thiab txhim khu kev qha xaiv rau cov neeg caij
