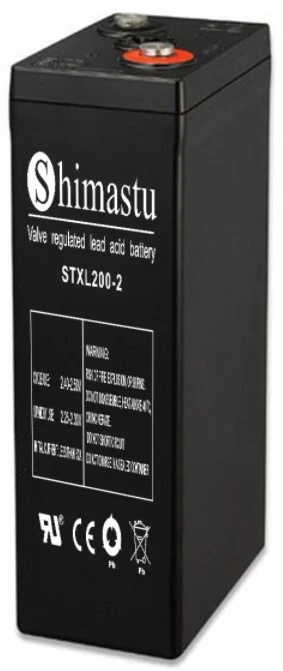

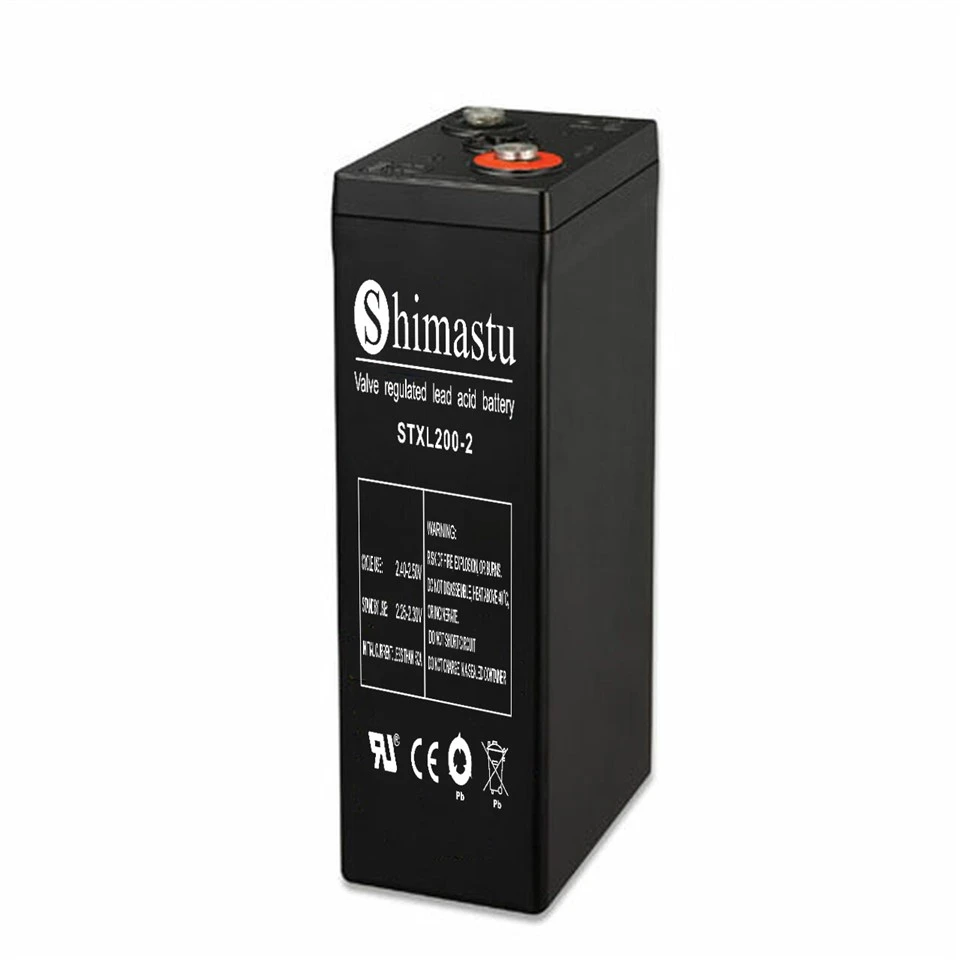

2V200AH Rau Telecom

Qauv: STXL200-2(2V200AH) Lub Npe: Shimastu
Hom kev lag luam: Chaw tsim khoom & Exporting
Rated voltage (V): 2V


PHYSICAL SPECIFICATION

Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		173 ± 2 hli (6.81 nti) 111 ± 2 hli (4.37 nti) 329 ± 2 hli (12.95 nti) 365 ± 2 hli (14.37 nti)
Qhov hnyav				Kwv yees li. 13.5 Kg ± 3% (29.75 lbs)
Standard Terminal				Bolt-and-nuts davhlau ya nyob twg Bolt Hom: M8

ELECTRICAL SPECIFICATION
Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			20 teev tus nqi (10.6A) 10 teev tus nqi (20A) 5 teev tus nqi (34A) 3 teev tus nqi (50A) 1 teev tus nqi (110A)		212 Aw 200 Aw 170 Aw 150 Aw 110 Aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			1000A (5 sec)
Short Circuit Current			2600A
Tsim lub neej ntab			15 xyoo ntawm 25 xyoo⁰C( 77 ⁰F )
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 0.75mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam sim no tsawg dua 50A Voltage 2.35 ~ 2.40V ntawm 25 degree (77⁰F ) Kub Coefficient -5mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 2.23V ntawm 25 degree (77⁰F ) Kub Coefficient -3.3mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	15 MIN	30 MIN	1 HR	3 HR	4 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	307.7	194.4	122.5	56.6	45.5	37.9	25.4	21.2	11.0
1.65V	288.3	186.7	118.3	54.8	44.3	36.8	25.1	20.9	10.9
1.70V	269.9	178.4	114.5	53.3	43.1	35.9	24.7	20.6	10.7
1.75V	251.2	170.5	110.0	51.7	42.0	35.0	24.4	20.3	10.6
1.80V	232.0	163.0	106.1	50.0	40.8	34.0	24.0	20.0	10.5
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	15 MIN	30 MIN	1 HR	3 HR	4 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	537.9	353.1	230.2	108.0	87.3	73.0	50.0	41.8	21.7
1.65V	511.4	342.6	223.6	105.2	85.2	71.2	49.1	41.1	21.4
1.70V	486.2	330.7	217.6	102.7	83.2	69.6	48.5	40.6	21.2
1.75V	459.0	319.4	210.5	100.2	81.4	68.1	47.9	40.0	21.0
1.80V	429.7	308.4	204.1	97.1	79.4	66.5	47.3	39.3	20.8

Cim npe nrov: 2v200ah rau telecom, Tuam Tshoj 2v200ah rau telecom manufacturers, lwm tus neeg, Hoobkas

Nqe lus piav qhia:

Qauv: STXL{0}}(2V200AH)

Lub npe: Shimastu

Hom kev lag luam: Chaw tsim khoom & Exporting

Rated voltage (V): 2V

Rated peev (Ah): 200AH

Roj teeb loj (mm): 173 * 111 * 329 * 365 (± 2)

Qhov hnyav (kg): 13.5kg

Terminal Hom: M8

Nta:

●2V200AH Rau Telecom yog ib qho ntawm cov khoom siv hluav taws xob zoo tshaj plaws thiab muaj txiaj ntsig zoo. Paub txog lawv lub peev xwm zoo tshaj plaws, lub roj teeb lub cev muaj peev xwm muab lub zog thaub qab tsis sib haum xeeb rau telecom yees thiab lwm lub tshuab. Qhov thib ob, ib qho ntawm nws cov yam ntxwv tseem ceeb tshaj plaws yog nws lub zog siab ceev. Qhov no feature tso cai rau ib tug loj npaum li cas ntawm lub zog yuav tsum tau khaws cia nyob rau hauv ib tug me me qhov chaw, ua rau nws ib tug zoo tagnrho kev daws teeb meem rau kev sib txuas lus cov chaw uas muaj tsawg chaw. Lwm qhov tseem ceeb yog nws lub neej ua haujlwm ntev. Lub roj teeb system tuaj yeem kav ntev txog 10 xyoo, ua rau nws muaj peev xwm txaus nyiam rau cov tuam txhab xov tooj. Dab tsi ntxiv, peb cov khoom tau paub txog lawv cov kev ua tau zoo hauv qhov kub thiab txias, kom ntseeg tau tias lawv tuaj yeem tiv taus huab cua hnyav. Thaum kawg, peb tsuas yog ua tau zoo, muab kev ntseeg siab, txuas ntxiv ntawm lub zog rau cov khoom siv sib txuas lus. Qhov no ua kom ntseeg tau tias kev sib txuas lus network yuav tsis cuam tshuam txawm tias lub zog loj tsis muaj.

Daim ntawv thov:

●2V200AH Rau Telecom xav tau kev saib xyuas tsawg, txo cov nqi khiav lag luam tag nrho rau telcos. Qhov no yog vim nws qhov kev tsim kho-dawb tsim thiab nws lub peev xwm los ua haujlwm hauv qhov chaw huab cua tsis muaj teeb meem. Qhov no yog lub roj teeb saum toj kawg nkaus uas muab kev ua haujlwm tshwj xeeb, kev ntseeg tau thiab lub zog ua haujlwm.
