PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 200 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		522 ± 2 hli (20.55 nti) 240 ± 2 hli (9.45 nti) 219 ± 2 hli (8.62 nti) 223 ± 2 hli (8.78 nti)
Qhov hnyav				Kwv yees li. 61.2Kg (134.92 lbs)
Standard Terminal				Bolt-thiab-ntsuab terminal Bolt hom: M8
						Shimastu Gel series Gel Batteries yog tsim los nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev. Nta: 1.Tshwj xeeb polar phaj tsim, uas ua kom paub tseeb tias tus qauv tsim lub neej ntawm 15 xyoo ntawm 25 degree (77⁰F ) 2.Equalized tam sim no faib, cov khoom siv tsis yooj yim rau poob 3.High gas recombination efficiency 4.Zoo sib sib zog nqus tawm resilience kev ua tau zoo 5.No delamination phenomena nyob rau hauv lub electrolyte 6.Manufactured nrog high-porosity
ELECTRICAL SPECIFICATION

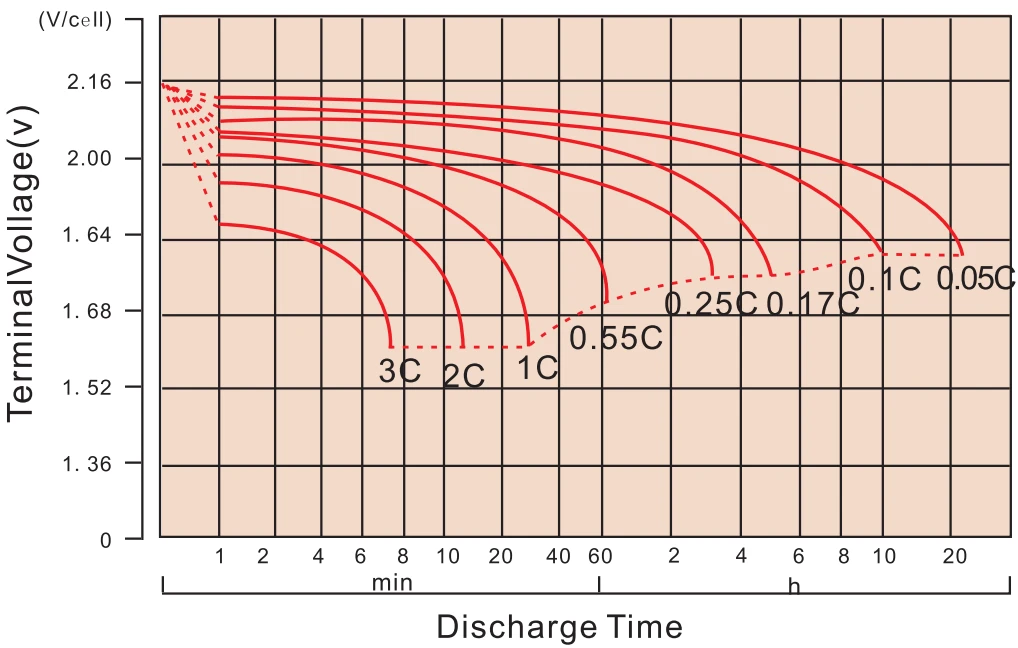

Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (20A) 5 teev tus nqi (34A) 3 teev tus nqi (50A) 1 teev tus nqi (120A)		200 Aw 170 Aw 150 Aw 120 Aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			2000A (5 sec)
Short Circuit Current			3430A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 4mΩ

Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam sim no tsawg dua 50A Voltage 14.1 ~ 14.4V ntawm 25 degree (77⁰F ) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77⁰F ) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	477.1	352.1	216.7	124.0	56.6	37.9	25.4	21.2	11.0
1.65V	438.7	336.6	208.0	119.3	54.8	36.8	25.1	20.9	10.9
1.70V	404.0	315.3	198.9	114.8	53.3	35.9	24.7	20.5	10.7
1.75V	369.8	293.6	190.0	110.0	51.7	35.0	24.4	20.3	10.6
1.80V	334.8	271.0	181.8	106.1	50.0	34.0	24.0	20.0	10.5
Lub Hwj Chim Nthuav Tawm RATING WATT PER CELL @ 25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	789.4	615.7	397.7	233.2	108.0	73.1	50.0	41.8	21.7
1.65V	760.4	597.3	385.7	225.6	105.2	71.2	49.1	41.1	21.4
1.70V	712.9	567.7	372.4	218.3	102.7	69.6	48.5	40.6	21.1
1.75V	664.3	536.3	359.7	210.5	100.2	68.1	47.9	40.0	21.0
1.80V	611.7	502.2	347.2	204.0	97.1	66.5	47.3	39.3	20.8

Cim npe nrov: Hnub ci gel roj teeb 12v200ah

Nqe lus piav qhia:

Qauv No.:GEL{0}} (12V200AH)

Lub npe: Shimastu

Hom kev lag luam: Chaw tsim khoom & Exporting

Rated voltage (V): 12V

Rated peev (Ah): 200AH

Roj teeb loj (mm): 522 * 240 * 219 * 223 (± 2)

Raws li qhov hnyav (kg): 61kg

Terminal Hom: M8

Kev pabcuam OEM: Txais

Nta:

Shimastu Solar GEL roj teeb 12V200AH yog lub roj teeb uas muaj gel electrolyte, siv cov ntaub ntawv tshwj xeeb, uas ua rau lub roj teeb zoo ib puag ncig thiab txo cov pa phem rau ib puag ncig. Cov txheej txheem ntawm kev ntxiv gel zoo txo cov roj teeb. Nws yog dav siv nyob rau hauv ib puag ncig uas yuav tsum tau kub hnyav thiab cua tsis zoo. Cov Cov cuab yeej siv tsis tu ncua ua rau lub roj teeb zoo dua qub.Lub plhaub ABS roj teeb yog ua los ntawm cov khoom siv ABS, uas txhim kho qhov cuam tshuam tsis kam, corrosion kuj thiab kub tsis kam.

Daim ntawv thov:

Cov Cuab Yeej Hluav Taws Xob, Cov Khoom Siv Hauv Tsev, Cov Tsheb Nkoj Golf, BOATS, SUBMARINES, Hluav Taws Xob Wheelchairs, Hluav Taws Xob Hluav Taws Xob, Hnub Ci Zog Cia Systems, Cov Khoom Siv Hluav Taws Xob Tsis Muaj Hluav Taws Xob, Hnub Ci System, telecom, UPS thiab lwm yam.

Hnub ci GEL roj teeb 12V200AH

Nqe lus piav qhia:

Nta:
