PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 60 Aw
Dimension		Ntev Dav Thawv Qhov siab Tag nrho qhov siab		257 ± 2 hli (10.12 nti) 133 ± 2 hli (5.24 nti) 200 ± 2 hli (7.87 nti) 200 ± 2 hli (7.87 nti)
Qhov hnyav				Kwv yees li. 18.1 Kg ± 3% (39.89 lbs)
Standard Terminal				Bolt-thiab-ntsuab terminal Bolt Hom: M5
						Shimastu Gel series Gel Batteries yog tsim los nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev. Nta: 1. Tshwj xeeb polar phaj tsim, uas ua kom ib tug tsim floating nqi lub neej ntawm 15 xyoo ntawm 25 degree (77⁰F ) 2. Kev faib tawm tam sim no sib npaug, cov khoom siv tsis yooj yim poob 3. High gas recombination efficiency 4. Zoo sib sib zog nqus paug resilience kev ua tau zoo 5. Tsis muaj delamination tshwm sim hauv cov electrolyte 6. Tsim los nrog high-porosity
ELECTRICAL SPECIFICATION

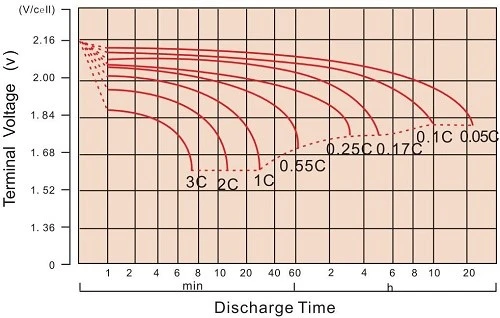

Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (6A) 5 teev tus nqi (10.2A) 3 teev tus nqi (15A) 1 teev tus nqi (33A)		60 Aw 57 aw ah 45 Aw 33 Aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			600A (5 sec)
Short Circuit Current			1380A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 6mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam sim no tsawg dua 15A Voltage 14.1 ~ 14.4V ntawm 25 degree (77⁰F ) Kub Coefficient -18mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77⁰F ) Kub Coefficient -18mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	203.4	144.2	108.6	64.9	37.2	17.0	11.4	6.36	3.30
1.65V	189.2	136.3	103.8	62.4	35.8	16.5	11.1	6.27	3.27
1.70V	170.7	125.5	97.2	59.7	34.4	16.0	10.8	6.15	3.22
1.75V	152.9	114.8	90.5	56.8	33.0	15.5	10.5	6.08	3.18
1.80V	134.3	104.0	83.5	54.3	31.8	15.0	10.2	6.00	3.15
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	337.3	245.1	189.8	117.8	69.9	32.4	21.9	12.5	6.45
1.65V	317.2	236.1	184.2	114.5	67.7	31.6	21.4	12.3	6.40
1.70V	292.7	221.4	175.1	110.7	65.5	30.8	20.9	12.1	6.34
1.75V	268.1	206.3	165.3	106.5	63.1	30.0	20.4	12.0	6.27
1.80V	240.4	190.0	154.8	102.8	61.2	29.1	19.9	11.8	6.24

Cim npe nrov: 12v60ah gel roj teeb, Tuam Tshoj 12v60ah gel roj teeb manufacturers, lwm tus neeg, Hoobkas

Kev piav qhia

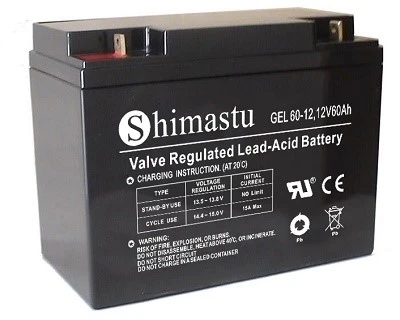

Shimastu 12V60AH GEL BATTERY yog ib yam ntawm cov roj teeb uas muaj kua qaub, zoo li absorbed iav lev (AGM) roj teeb. Vim tias lawv tau "sau", 12V60AH GEL BATTERY tsis xav tau lawv cov qib dej tshuaj xyuas thiab saib xyuas zoo li cov txheej txheem kev xaiv cov hmoov lead-acid, thiab lawv tsis tshem cov roj. Cov yam tseem ceeb no feem ntau ua rau cov roj teeb gel muaj kev nyab xeeb dua li cov kev xaiv cov hmoov lead-acid, vim lawv muaj ntau dua ntawm "teeb nws thiab tsis nco qab nws" cov khoom. Txij li thaum 12V60AH GEL roj teeb muaj qhov sib txawv ntawm sab hauv, koj tuaj yeem nruab rau hauv ntau hom kev taw qhia thiab txoj haujlwm. Kev sib xyaw ua ke nrog cov pa qis dua / tsis muaj pa tawm thaum lub sijhawm ua haujlwm ua rau cov roj teeb gel siv tau rau hauv cov xwm txheej uas qhov cua tsuas yog txwv.

Nta
♦ Gelled electrolyte ua los ntawm kev sib xyaw sulfuric acid nrog silica fume
♦ Cov electrolyte yog gel zoo li, immobile thiab tsis xau, ua rau cov tshuaj tiv thaiv tsis sib xws ntawm txhua feem ntawm cov phaj.
♦ Kev ua tau zoo ntawm kev ua haujlwm siab vim yog kev sib dhos nruj
♦ Muaj zog cua sov dissipation thiab dav kev khiav hauj lwm kub ntau yam
♦ Tsis txhob muab cov kua qaub cais tawm, kev ua phooj ywg ib puag ncig
♦ Lub tshuab ua haujlwm tau zoo tso cov roj ntau dhau tuaj

Daim ntawv thov
1. Hnub ci thiab cua zog cia qhov system
2. EPS thiab UPS roj teeb thaub qab
3. Teeb pom kev zoo, teeb pom kev kub ceev, kev ruaj ntseg system
4. Cov khoom siv sib txuas lus
5. Lub hwj chim qhov chaw rau cov khoom siv los yog cov cuab yeej siv tau yooj yim
