PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (20HR)				6V 4 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		70 ± 1 hli (2.76 nti) 47 ± 1mm (1.85 nti) 100 ± 1 hli (3.94 nti) 106 ± 1 hli (4.17 nti)
Qhov hnyav				Kwv yees li. 0.67Kg ± 3 feem pua (1.48lbs)
Standard Terminal				Fasten Tab No.187E (F1)

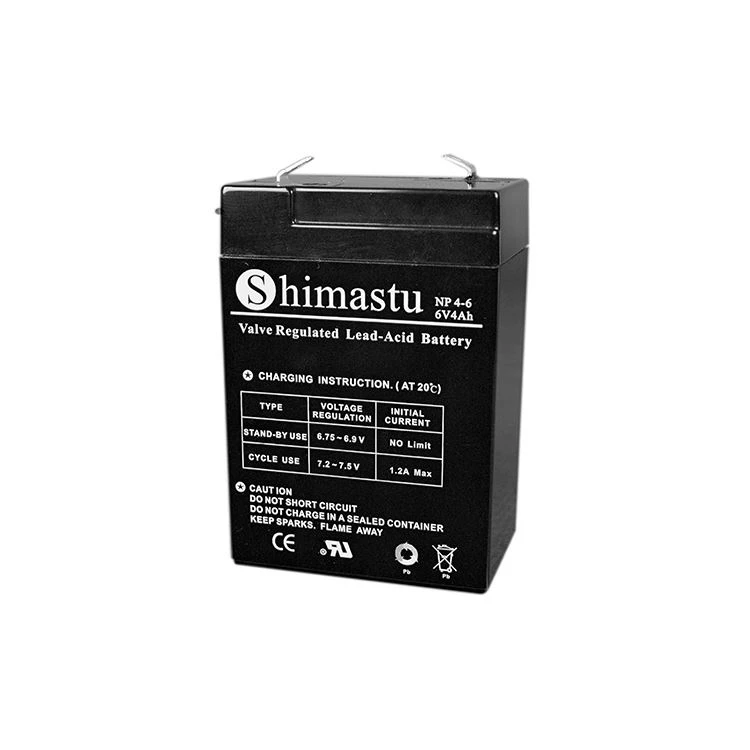

						Shimastu NP series AGM VRLA Roj teeb tau tsim los ua cov roj teeb uas muaj lub hom phiaj, lawv yog cov roj teeb tswj cov kua qaub uas muaj cov khoom zoo. Absorbed iav Mat (AGM) cov khoom sib cais & cov ntaub ntawv purity siab, tshwj xeeb los ntawm kev ua haujlwm zoo kawg nkaus thiab txhim khu kev qha kev pabcuam lub neej. Nta: 1.Ntawm-spillable 2.Sealed and Maintenance-free Operation 3.Qhov zoo thiab kev ntseeg siab 4. Tsawg gassing, qis tus kheej tso tawm 5. Tsawg sab hauv tsis kam 6.Long tsim lub neej mus txog 6 xyoo hauv kev pabcuam ntab ntawm 25 degree (77 0F )
ELECTRICAL SPECIFICATION
Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			20 teev tus nqi (0.2A) 10 teev tus nqi (0.375A) 5 teev tus nqi (0.68A) 3 teev tus nqi (1.0A) 1 teev tus nqi (2.2A)		4.0Aw 3.8 aw 3.4 Aw 3. 0Aw 2.2 Aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			40A (5 sec)
Short Circuit Current			210A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 25mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No tsawg dua 1.2A Voltage 7.20 ~ 7.50V ntawm 25 degree (77⁰F ) Kub Coefficient -15mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 6.75 ~ 6.90V ntawm 25 degree (77⁰F ) Kub Coefficient -10mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	15.26	10.76	7.758	4.457	2.445	1.130	0.756	0.395	0.209
1.65V	14.19	10.16	7.418	4.279	2.361	1.095	0.737	0.390	0.206
1.70V	12.81	9.351	6.947	4.091	2.284	1.064	0.719	0.384	0.203
1.75V	11.49	8.562	6.465	3.910	2.200	1.032	0.700	0.380	0.200
1.80V	10.10	7.721	5.910	3.737	2.115	1.000	0.680	0.375	0.197
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	25.29	18.28	13.55	8.096	4.593	2.157	1.455	0.776	0.411
1.65V	23.80	17.59	13.15	7.854	4.462	2.100	1.425	0.767	0.405
1.70V	21.97	16.49	12.50	7.585	4.343	2.050	1.395	0.756	0.401
1.75V	20.14	15.37	11.80	7.322	4.209	1.996	1.363	0.748	0.395
1.80V	18.08	14.11	10.94	7.069	4.070	1.942	1.329	0.740	0.390

Technical nta:

Sealed Construction Shimastu qhov tshwj xeeb kev tsim kho thiab cov txheej txheem sib khi ua kom tsis txhob muaj hluav taws xob los ntawm rooj plaub lossis cov terminals.

Electrolyte Suspension System, Dhau li ntawm 6 volt roj teeb rau caij ntawm cov khoom ua si, tag nrho lwm cov NP series roj teeb siv Shimastu qhov tshwj xeeb electrolyte ncua kev kawm ntawv suav nrog microfine iav lev kom khaws cov nyiaj ntau tshaj ntawm electrolyte hauv cov hlwb. Theelectrolyte khaws cia hauv cov khoom sib cais thiab tsis muaj cov electrolyte dawb kom khiav tawm ntawm cov hlwb. Tsis muaj gels lossis lwm yam kab mob ntxiv.

Kev tswj cov roj Generation Tus tsim ntawm Shimastu's NP roj teeb suav nrog cov pa oxygen recombination tshiab tshaj plaws los tswj cov roj hluav taws xob zoo thaum siv ib txwm siv.

Kev Ua Haujlwm Tsis Muaj Kev Pabcuam Vim yog kev tsim kho zoo kawg nkaus thiab kev sib txuas ntawm cov pa roj hauv lub cell, lub roj teeb yuav luag tsis muaj kev saib xyuas.

Terminals NP roj teeb yog tsim los siv ntau yam ntawm cov terminals uas txawv ntawm qhov loj thiab hom. Thov xa mus rau cov ntsiab lus raws li qhia.

Kev ua haujlwm nyob rau hauv ib qho kev taw qhia Kev sib xyaw ua ke ntawm kev tsim kho thiab Shimastu qhov tshwj xeeb electrolyte ncua kev kawm ntawv tso cai rau kev ua haujlwm hauv txhua qhov kev taw qhia, tsis muaj kev poob haujlwm lossis kev ntshai ntawm electrolyte to. (Tsis suav nrog kev siv txuas ntxiv inverted)

Valve Regulated Design Cov roj teeb tau nruab nrog qhov yooj yim, muaj kev nyab xeeb qis qhov cua uas tso cov roj ntau dhau thiab yuav rov ua dua tshiab yog tias muaj cov roj tsim tawm hauv lub roj teeb vim muaj kev them nyiaj ntau dhau. Nco tseg. Tsis muaj tus account yuav tsum tau them lub roj teeb rau hauv ib lub thawv kaw.

Lead Calcium Grids Lub luag haujlwm hnyav txhuas calcium alloy daim phiaj muab cov npoo ntxiv ntawm kev ua tau zoo thiab lub neej nyob rau hauv ob qho tib si cyclic thiab ntab daim ntaub ntawv thiab muab kev rov qab tsis sib xws los ntawm kev tso tawm tob.

Long Cycle Service Life Nyob ntawm qhov nruab nrab qhov tob ntawm kev tso tawm, ntau tshaj ib txhiab tawm/them nqi tuaj yeem xav tau.

Float Service Life Lub neej ua haujlwm yuav tsum yog tsib xyoos hauv cov ntawv thov float standby.

Separators Kev siv cov khoom sib cais tshwj xeeb muab cov rwb thaiv tsev zoo heev ntawm cov phaj tiv thaiv kev sib tshuam ntawm cov phaj luv luv thiab txwv tsis pub cov khoom siv ua haujlwm.

Lub neej txee ntev Lub neej tsis tshua muaj qhov tso tawm tus kheej tso cai rau lub roj teeb khaws cia rau lub sijhawm ntev mus txog ib xyoos ntawm qhov kub thiab txias tsis muaj peev xwm mus tas li.

Kev khiav hauj lwm qhov kub thiab txias Lub roj teeb tuaj yeem siv ntau qhov kub thiab txias tso cai rau kev hloov pauv ntau hauv kev tsim qauv thiab qhov chaw.

* Them nqi - 15 degree rau 50 degree

* Tshem tawm - 20 degree txog 60 degree

* Cia - 20 degree txog 50 degree (tag nrho them roj teeb)

Cim npe nrov: 6 volt caij ntawm roj teeb, Tuam Tshoj 6 volt caij ntawm roj teeb manufacturers, lwm tus neeg, Hoobkas

Lub 6 volt caij ntawm lub roj teeb muaj kev nyab xeeb rau cov menyuam yaus. Lawv tau tsim los nrog cov yam ntxwv kev nyab xeeb xws li qhov qis qis tshaj plaws, siv lub rooj zaum thiab cov pedals yooj yim rau kev nkag. Cov niam txiv tuaj yeem so yooj yim paub tias lawv tus menyuam yuav tsis khiav nrawm dua li qhov yuav tsum tau thiab txoj siv sia yuav ua rau lawv muaj kev nyab xeeb. Ntxiv rau, yooj yim-rau-siv pedals tso cai rau cov menyuam yaus kom tswj tau cov khoom ua si yam tsis muaj kev pheej hmoo ntawm kev poob tswj thiab raug mob.

Nta

Lub hauv paus ntsiab lus ua haujlwm ntawm 6 volt caij ntawm lub roj teeb yog siv lub zog hluav taws xob sab nraud los tsim cov khoom siv hluav taws xob sab hauv thaum them nyiaj, khaws cov hluav taws xob ua hluav taws xob ua hluav taws xob, thiab hloov cov hluav taws xob hluav taws xob rau hluav taws xob hluav taws xob rov qab thaum nws xav tau tawm, xws li cov roj teeb hauv lub xov tooj uas nquag siv hauv lub neej.
