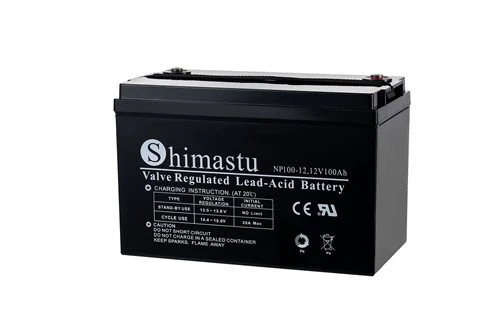

12V 100Ah hnub ci roj teeb

Shimastu 12v 100ah hnub ci roj teeb yog tsim los nrog AGM thev naus laus zis.Battery paste formulations nrog siab magnification thiab siab corrosion resistant alloy multi-grid, thiab tshwj xeeb tso cov qauv thiab sealing tshuab, nrog siab paug peev xwm, ntev lub neej, muaj kev nyab xeeb thiab txhim khu kev qha, tsis tshua muaj tus kheej paug tus nqi, saj zawg zog installation, txij nkawm, yooj yim nta.


PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 100 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		331 ± 2 hli (13.03 nti) 172 ± 2 hli (6.77 nti) 216 ± 2 hli (8.50 nti) 222 ± 2 hli (8.74 nti)
Qhov hnyav				Kwv yees li. 28.5 Kg ± 3% (62.83 lbs)
Standard Terminal				B3 (Bolt-thiab-txiv ntseej davhlau ya nyob twg) Bolt hom: M6
						Shimastu NP series AGM VRLA Roj teeb tau tsim los ua cov roj teeb uas muaj lub hom phiaj, lawv yog cov roj teeb tswj cov kua qaub uas muaj cov khoom zoo. Absorbed iav Mat (AGM) cov khoom sib cais & cov ntaub ntawv purity siab, tshwj xeeb los ntawm kev ua haujlwm zoo kawg nkaus thiab txhim khu kev qha kev pabcuam lub neej. Nta: 1.Ntawm-spillable 2.Sealed and Maintenance-free Operation 3.Qhov zoo thiab kev ntseeg siab 4. Tsawg gassing, qis tus kheej tso tawm 5. Tsawg sab hauv tsis kam 6.Long tsim lub neej mus txog 10 xyoo hauv kev pabcuam ntab ntawm 25 degree (77 0F)
ELECTRICAL SPECIFICATION
Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (10A) 5 teev tus nqi (17A) 3 teev tus nqi (25A) 1 teev tus nqi (55A)		100 Aw 85ah ua 75 aw ah 55 Ah aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			1000A (5 sec)
Short Circuit Current			2150A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 6.8mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No tsawg dua 25A Voltage 14.1 ~ 14.4V ntawm 25 degree (77⁰F ) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77⁰F ) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	240.4	181.0	108.1	62.0	28.3	18.9	12.7	10.6	5.51
1.65V	218.9	173.0	103.9	59.7	27.4	18.4	12.5	10.4	5.44
1.70V	198.9	162.1	99.5	57.4	26.7	17.9	12.4	10.3	5.36
1.75V	181.7	150.8	94.7	55.0	25.8	17.5	12.2	10.1	5.30
1.80V	165.0	139.2	90.6	53.0	25.0	17.0	12.0	10.0	5.25
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	397.7	316.5	196.4	116.6	54.0	36.6	25.0	20.9	10.8
1.65V	379.4	307.0	190.8	112.8	52.6	35.6	24.6	20.6	10.7
1.70V	351.0	291.8	184.4	109.1	51.3	34.8	24.2	20.3	10.6
1.75V	326.3	275.5	177.3	105.2	50.1	34.0	23.9	20.0	10.5
1.80V	301.5	258.0	171.4	102.0	48.5	33.2	23.7	19.7	10.4

Cim npe nrov: 12v100ah hnub ci roj teeb, Tuam Tshoj 12v100ah hnub ci roj teeb manufacturers, lwm tus neeg, Hoobkas

Model: NP{0}}(12V100AH)

Hom Lub Npe: Shimastu

Keeb kwm: Suav teb

OEM Orders: Txais

Voltage ib txwm: 12V

Rated Peev Xwm: 100Ah

Qhov hnyav (kwv yees): 28.5KGS

Qhov Loj (hli): 329 * 172 * 214 * 218 (± 2)

Nta

Lub 12V100Ah hnub ci roj teeb no tau txais kev tswj hwm lub tshuab kaw lus siab heev, thiab iav fiber ntau diaphragm tau teeb tsa rau hauv nws, uas muaj cov dej me me thaum siv thiab tsis tas yuav ntxiv electrolyte nquag. Nws cov qauv sealing tshwj xeeb tuaj yeem ua kom tsis muaj electrolyte to, tsis txhob muaj roj ntau dhau hauv lub roj teeb, thiab xyuas kom meej tias lub peev xwm yuav tsis raug txo vim siv rov ua dua. Tsis tas li ntawd, nws cov lattice tswj thev naus laus zis ntawm cov hlau lead-calcium alloy slab yog pab tau kom txo qis tus kheej tawm mus rau qib qis tshaj plaws thiab txuag cov teeb meem ntawm kev siv lub sijhawm ntev.

Daim ntawv thov

Lub 12V100Ah hnub ci roj teeb tuaj yeem muab lub zog muaj zog, ua kom nws muaj nyob rau txhua lub sijhawm, thiab tsis muaj kev cuam tshuam sab nraud. Nws yog dav siv nyob rau hauv ntau yam kev siv sab hauv tsev thiab sab nraum zoov, nrog rau lub tswb nrov, cable TV, khoom siv sib txuas lus, cov khoom siv hauv hiav txwv thiab cov khoom siv kho mob. Nyob rau tib lub sijhawm, nws muaj peev xwm sealing zoo heev, uas tuaj yeem tiv thaiv kev ua qias tuaj thiab xeb, thiab tseem muaj kev ua tau zoo hauv cov khoom siv hauv chaw ua haujlwm, lub hnub ci hluav taws xob thiab lwm qhov chaw uas xav tau kev siv hluav taws xob tsis cuam tshuam.
