12V 40Ah SLA roj teeb

Shimastu 12v 40ah SLA roj teeb siv lub ntsiab ntawm AGM thev naus laus zis thiab tsim cov cathode absorption valve tswj kaw cov roj ntsha-acid roj teeb. Cov khoom siv dav dav, haum rau txhua yam kev pib, kev kub ntxhov, cov khoom ua si hluav taws xob, hluav taws xob teeb pom kev zoo thiab lwm yam kev thov.

Xa kev nug


PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 40 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		198 ± 2 hli (7.80 nti) 166 ± 2 hli (6.54 nti) 170 ± 2 hli (6.69 nti) 170 ± 2 hli (6.69 nti)
Qhov hnyav				Kwv yees li. 13Kg ± 3% (28.65 lbs)
Standard Terminal				Bolt-thiab-ntsuab terminal Bolt hom: M6
						Shimastu NP series AGM VRLA Roj teeb tau tsim los ua cov roj teeb uas muaj lub hom phiaj, lawv yog cov roj teeb tswj cov kua qaub uas muaj cov khoom zoo. Absorbed iav Mat (AGM) cov khoom sib cais & cov ntaub ntawv purity siab, tshwj xeeb los ntawm kev ua haujlwm zoo kawg nkaus thiab txhim khu kev qha kev pabcuam lub neej. Nta: 1.Ntawm-spillable 2.Sealed and Maintenance-free Operation 3.Qhov zoo thiab kev ntseeg siab 4. Tsawg gassing, qis tus kheej tso tawm 5. Tsawg sab hauv tsis kam 6.Long tsim lub neej mus txog 10 xyoo hauv kev pabcuam ntab ntawm 25 degree (77 0F)
ELECTRICAL SPECIFICATION

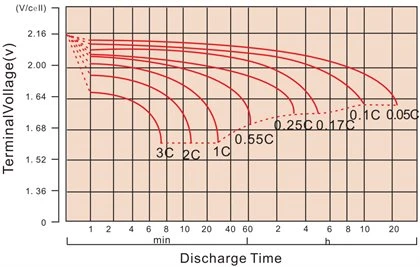

Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (4A) 5 teev tus nqi (6.8A) 3 teev tus nqi (10A) 1 teev tus nqi (22A)		40 Aw 34 Aw 30 Aw 22 Aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			400A (5 sec)
Short Circuit Current			920A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F)9.8mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam sim no tsawg dua 10A Voltage 14.1 ~ 14.4V ntawm 25 degree (77⁰F ) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77⁰F ) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	141.7	100.2	72.39	43.24	24.80	11.32	7.58	4.24	2.20
1.65V	131.8	94.64	69.22	41.58	23.86	10.97	7.37	4.18	2.18
1.70V	118.9	87.14	64.82	39.79	22.96	10.67	7.18	4.10	2.15
1.75V	106.5	79.75	60.34	37.89	22.00	10.34	6.99	4.05	2.12
1.80V	93.54	72.20	55.70	36.23	21.21	10.00	6.80	4.00	2.10
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	234.9	170.2	126.5	78.56	46.63	21.59	14.63	8.35	4.30
1.65V	221.0	164.0	122.8	76.33	45.11	21.04	14.25	8.20	4.27
1.70V	203.9	153.8	116.7	73.77	43.66	20.53	13.92	8.07	4.23
1.75V	186.8	143.2	110.2	70.98	42.09	20.03	13.62	8.00	4.18
1.80V	167.5	131.9	103.2	68.55	40.79	19.42	13.29	7.87	4.16

Cim npe nrov: 12v 40ah sla roj teeb, Tuam Tshoj 12v 40ah sla roj teeb manufacturers, lwm tus neeg, Hoobkas

Lub 12V 40Ah SLA Roj Teeb no yog lub roj teeb uas muaj cov kua qaub uas tswj tau los ntawm AGM thev naus laus zis thiab cathode absorption valve, uas yog tsim rau ntau yam pib, xwm txheej ceev, cov khoom ua si hluav taws xob, hluav taws xob teeb pom kev zoo thiab lwm yam kev thov. Nws muaj qhov sib piv qis zog-rau-hnyav, tab sis nws tuaj yeem muab kev kub ntxhov tam sim no, uas tuaj yeem ua tau raws li cov kev xav tau ntawm cov kev siv hluav taws xob siab xws li cov khoom siv hluav taws xob standby. Nws yog compact nyob rau hauv tsos, ua los ntawm corrosion-resistant cov ntaub ntawv, thiab muaj cov yam ntxwv ntawm durability thiab ntev kev pab cuam lub neej.

Model: NP{0}}(12V40AH)

Hom Lub Npe: Shimastu

Keeb kwm: Suav teb

OEM Orders: Txais

Voltage ib txwm: 12V

Rated Peev Xwm: 40Ah

Qhov hnyav (kwv yees): 12.8KGS

Qhov Loj (hli): 198 * 166 * 172 * 172 (± 2)

Nta

Lub 12v 40Ah Sla roj teeb yog txij nkawm-dawb, koj tsis tas yuav ntxiv dej lossis xaiv cov qib electrolyte kom ntseeg tau tias tsis muaj kev pheej hmoo ntawm tag nrho lossis xau. Txawm hais tias koj tab tom tshawb nrhiav hauv ib puag ncig hauv nroog loj lossis sab nraum zoov, thov so kom paub tseeb tias cov qauv xau ntawm lub roj teeb no yuav ua rau koj ib puag ncig huv si thiab nyab xeeb. Nyob rau tib lub sijhawm, nws muaj cov yam ntxwv ntawm tus kheej qis qis, uas tuaj yeem khaws lub zog txawm tias nws tsis ua haujlwm ntev, kom ntseeg tau tias nws tuaj yeem muab tso rau hauv txhua lub sijhawm. Tsis tas li ntawd, nws qhov kub thiab txias ua haujlwm yog qhov zoo heev, txij li -25 C mus rau 50 degree, uas yuav tsis cuam tshuam txawm tias nws kub hauv lub caij ntuj sov lossis txias rau lub caij ntuj no.

Daim ntawv thov

1. Solar system

2. Cua zog tsim

3. Fais tsheb kauj vab thiab lub ro
