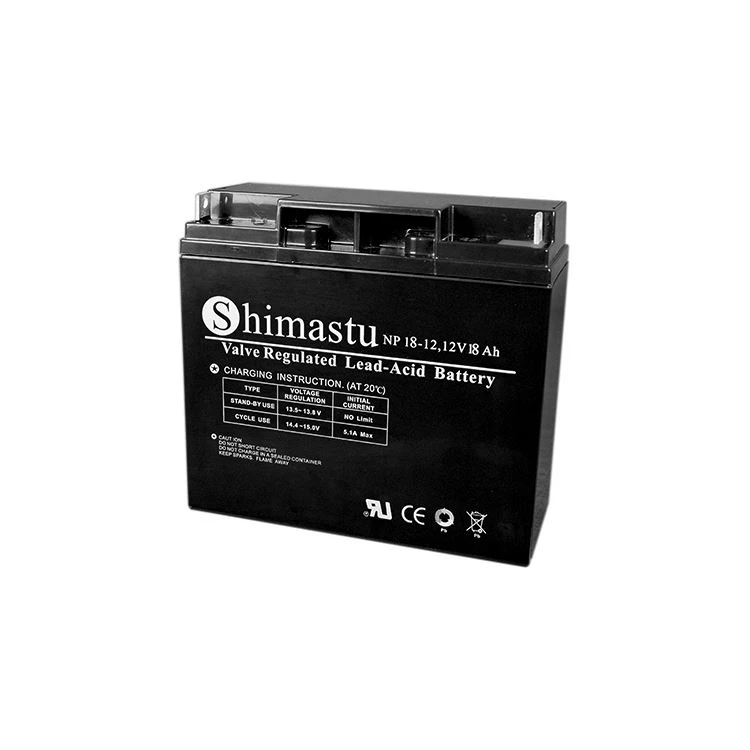

12V 18AH Sealed Lead Acid Roj teeb

12V 18AH Sealed Lead Acid Roj teeb

Shimastu 12v 18ah SLA roj teeb tsim ntab kev pab cuam lub neej 5-7 xyoo.100 feem pua ​​​​Kev tshuaj xyuas ua ntej xa khoom kom ruaj khov thiab Tsim los nrog AGM (Absorbent Glass Mat) thev naus laus zis, equipping high-performance plates thiab electrolytes.

Xa kev nug

image004.jpg image004

PHYSICAL SPECIFICATION

Nominal voltage
Nominal Peev Xwm (20HR)

12V

18 Aw


Dimension

Ntev
Dav
Thawv qhov siab
Tag nrho qhov siab

181 ± 1 hli (7.13 nti)

76 ± 1 hli (2.99 nti)

166 ± 1 hli (6.54 nti)

166 ± 1 hli (6.54 nti)

Qhov hnyav

Kwv yees li. 5.1Kg ± 3% (11.24lbs)

Standard Terminal

Bolt & ceev terminal

Bolt Hom: M5


image012image010


Shimastu NP series AGM VRLA Roj teeb tau tsim los ua cov roj teeb uas muaj lub hom phiaj, lawv yog cov roj teeb tswj cov kua qaub uas muaj cov khoom zoo. Absorbed iav Mat (AGM) cov khoom sib cais & cov ntaub ntawv purity siab, tshwj xeeb los ntawm kev ua haujlwm zoo kawg nkaus thiab txhim khu kev qha kev pabcuam lub neej.
Nta:
1.Ntawm-spillable
2.Sealed and Maintenance-free Operation
3.Qhov zoo thiab kev ntseeg siab
4. Tsawg gassing, qis tus kheej tso tawm
5. Tsawg sab hauv tsis kam
6.Long tsim lub neej mus txog 6 xyoo hauv kev pabcuam ntab ntawm 25 degree
(77 0F )­

ELECTRICAL SPECIFICATION

Yam ntxwv

Tshem tawm curves @ 25 degree (77 degree F)

Muaj peev xwm

20 teev tus nqi (0.9A)

10 teev tus nqi (1.683A)

5 teev tus nqi (3.058A)

3 teev tus nqi (4.499A)

1 teev tus nqi (9.899A)

18 Aw

16.8 Aws

15.3 Aws

13.5 Nws

9.9a ua


Muaj peev xwm cuam tshuam
los ntawm qhov kub thiab txias

40 degree (1040F）

25 degree (770F）

0 degree (320F）

102 feem pua

100 feem pua

85 feem pua

Max tawm tam sim no

180A (5 sec)

Short Circuit Current

750A

Internal Resistance

Lub roj teeb tag nrho (25 degree, 770F) 15mΩ

Tsis tu ncua Voltage
Them nqi

Lub voj voog

Pib Them Tam Sim No tsawg dua 5.4A

Voltage 14.4 ~ 15V ntawm 25 degree (770F )

Kub Coefficient -30mV / degree

Standby

Tsis muaj kev txwv rau Initial Charging Current

Voltage 13.5 ~ 13.8V ntawm 25 degree (770F )

Kub Coefficient -20mV / degree


NTAUB NTAWV TAM SIM NO RATING A@25 degree

FV/TSI

5 MIN

10 MIN

15 MIN

30 MIN

1 HR

3 HR

5 HR

10 HR

20 HR

1.60V

68.43

48.37

34.96

20.08

11.02

5.076

3.395

1.776

0.937

1.65V

63.64

45.70

33.43

19.28

10.62

4.919

3.307

1.752

0.922

1.70V

57.41

42.07

31.30

18.43

10.27

4.786

3.221

1.727

0.911

1.75V

51.44

38.51

29.13

17.62

9.899

4.643

3.140

1.704

0.900

1.80V

45.17

34.86

26.90

16.83

9.521

4.499

3.058

1.683

0.891

Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree

FV/TSI

5 MIN

10 MIN

15 MIN

30 MIN

1 HR

3 HR

5 HR

10 HR

20 HR

1.60V

113.4

82.20

61.12

36.47

20.71

9.714

6.558

3.496

1.849

1.65V

106.7

79.18

59.30

35.38

20.11

9.454

6.412

3.458

1.823

1.70V

98.47

74.23

56.37

34.16

19.58

9.238

6.267

3.411

1.803

1.75V

90.18

69.18

53.22

32.99

18.98

9.001

6.130

3.370

1.783

1.80V

80.87

63.71

49.83

31.84

18.36

8.756

5.993

3.331

1.768



Cim npe nrov: Tuam Tshoj 12v 18ah 12v 18ah kaw lead acid roj teeb manufacturers, lwm tus neeg, Hoobkas

Qhov no 12V 18AH Sealed Lead Acid Battery yog lub roj teeb uas muaj cov kua qaub uas muaj roj, tsim nrog AGM (Absorbent Glass Felt) thev naus laus zis, nruab nrog cov phaj ua haujlwm siab thiab electrolyte. Nws muaj lub neej ntab dej ntev ntev, thiab tuaj yeem tswj hwm nws cov txiaj ntsig thiab kev ntseeg tau ntev, muab kev daws teeb meem rau koj mus ntev. Nyob rau tib lub sijhawm, lub roj teeb tau txais cov tshuab pa oxygen sib xyaw, uas ua rau nws txawv ntawm cov roj teeb zoo sib xws. Txoj kev ua tiav no tuaj yeem ua kom muaj kev saib xyuas tsis pub muaj kev paub, tsis tas yuav ntxiv dej lossis tshuaj xyuas cov electrolyte tsis tu ncua, yog li koj tuaj yeem thov kev lav phib xaub rau kev tu siab thaum siv thiab them koj cov khoom txhua lub sijhawm.


Model: NP{0}}(12V18AH)

Hom Lub Npe: Shimastu

Keeb kwm: Suav teb

OEM Orders: Txais

Voltage ib txwm: 12V

Rated Peev Xwm: 18Ah

Qhov hnyav (kwv yees): 5.1KGS

Qhov Loj (hli): 181 * 76 * 168 * 168 (± 2)


Nta

Lub 12V 18AH Sealed Lead Acid Battery no siv cov kab sib chaws ua los ntawm Pb-CASN alloy, uas muaj cov pa me me, txo qhov kev pheej hmoo ntawm cov roj tsub zuj zuj, ua kom cov yam ntxwv ntawm tus kheej qis qis, thiab tuaj yeem tswj tau lub zog txawm tias nws tsis ua haujlwm ntev. Nws AGM diaphragm ua raws li kev tiv thaiv kev tiv thaiv, txo qhov muaj peev xwm ntawm sab hauv luv luv Circuit Court thiab tiv thaiv micro-short circuit. Tsis tas li ntawd, lub roj teeb muaj qhov kub thiab txias ua haujlwm, ua kom muaj kev ua haujlwm zoo tshaj plaws nyob rau lub caij ntuj sov thiab lub caij ntuj no txias.



Daim ntawv thov

1.Solar thiab cua zog cia system

2.EPS thiab UPS roj teeb thaub qab

3.Signal system, teeb pom kev zoo thaum muaj xwm ceev, kev ruaj ntseg system
