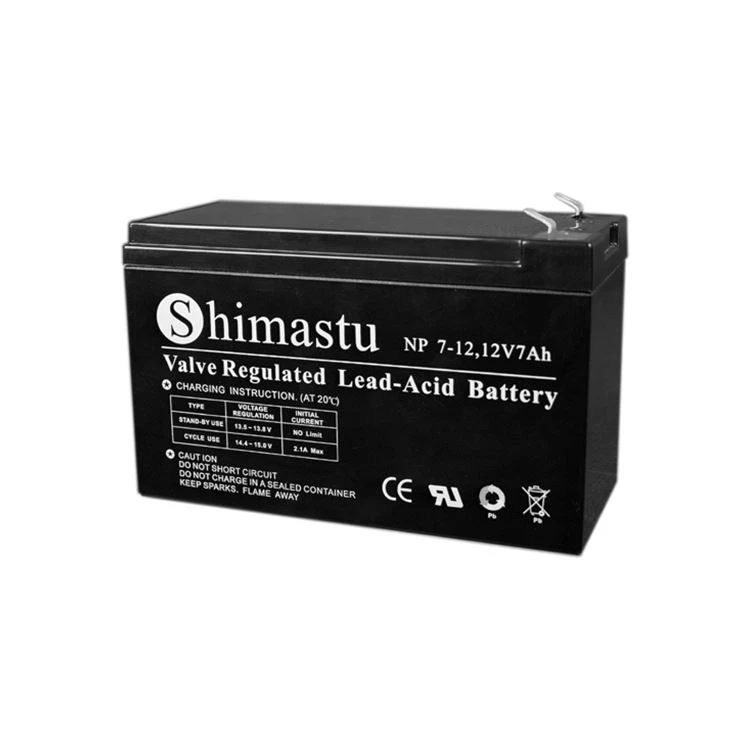

Valve Regulated Lead Acid Roj teeb 12V 7AH

Valve Regulated Lead Acid Roj teeb 12V 7AH

Shimastu valve tswj cov kua qaub roj teeb 12v 7ah yog rau hom zoo tib yam VRLA roj teeb, siv lub ntsiab ntawm AGM thev naus laus zis thiab tsim cov cathode absorption valve tswj kaw cov kua qaub roj teeb.Wide ntau yam khoom siv, haum rau txhua yam kev pib, xwm txheej, cov khoom ua si hluav taws xob, hluav taws xob teeb pom kev zoo thiab lwm yam kev thov ISO 100. UL thiab CE pom zoo.

Xa kev nug

image006.jpg image004

PHYSICAL SPECIFICATION

Nominal voltage
Nominal Peev Xwm (20HR)

12V

7 Aw


Dimension

Ntev
Dav
Thawv qhov siab
Tag nrho qhov siab

151 ± 1 hli (5.94 nti)

65 ± 1 hli (2.56 nti)

95 ± 1 hli (3.74 nti)

101 ± 1 hli (3.98 nti)

Qhov hnyav

Kwv yees li. 2.0 Kg ± 3% (4.41 lbs)

Standard Terminal

Fasten Tab No.187E(F1)

image012image010



Shimastu NP series AGM VRLA Roj teeb muaj

tau tsim los ua cov roj teeb uas muaj lub hom phiaj, lawv yog cov roj teeb tswj cov kua qaub uas muaj cov khoom zoo Absorbed iav Matt (AGM) cov khoom sib cais & cov ntaub ntawv siab purity raw, featured los ntawm kev ua tau zoo zoo kawg nkaus thiab txhim khu kev qha kev pabcuam lub neej.

Nta:
1.Ntawm-spillable
2.Sealed and Maintenance-free Operation
3.Qhov zoo thiab kev ntseeg siab
4. Tsawg gassing, qis tus kheej tso tawm
5. Tsawg sab hauv tsis kam
6.Long tsim lub neej mus txog 6years hauv kev pabcuam ntab ntawm 25 degree (770F )­

ELECTRICAL SPECIFICATION

Yam ntxwv

Tshem tawm curves @ 25 degree (77 degree F)

Muaj peev xwm

20 teev tus nqi (0.35A)

10 teev tus nqi (0.658A)

5 teev tus nqi (1.19A)

3 teev tus nqi (1.75A)

1 teev tus nqi (3.85A)

7. 0Aw

6.6 aw

6. 0 Aw

5.3 aw

3.9 aw


Muaj peev xwm cuam tshuam
los ntawm qhov kub thiab txias

40 degree (1040F）

25 degree (770F）

0 degree (320F）

102 feem pua

100 feem pua

85 feem pua

Max tawm tam sim no

70A (5 sec)

Short Circuit Current

340A

Internal Resistance

Lub roj teeb tag nrho (25 degree, 770F) 25mΩ

Tsis tu ncua Voltage
Them nqi

Lub voj voog

Pib Them Tam Sim No tsawg dua 2.1A

Voltage 14.4 ~ 15. 0V ntawm 25 degree (770F )

Kub Coefficient -30mV / degree

Standby

Tsis muaj kev txwv rau Initial Charging Current

Voltage 13.5 ~ 13.8V ntawm 25 degree (770F )

Kub Coefficient -20mV / degree


NTAUB NTAWV TAM SIM NO RATING A@25 degree

FV/TSI

5 MIN

10 MIN

15 MIN

30 MIN

1 HR

3 HR

5 HR

10 HR

20 HR

1.60V

26.83

18.96

13.71

7.871

4.305

1.982

1.324

0.691

0.365

1.65V

24.95

17.92

13.10

7.556

4.161

1.925

1.292

0.683

0.360

1.70V

22.50

16.49

12.27

7.222

4.004

1.866

1.257

0.676

0.354

1.75V

20.16

15.10

11.42

6.903

3.850

1.808

1.223

0.665

0.350

1.80V

17.71

13.67

10.54

6.598

3.710

1.750

1.190

0.658

0.346

Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree

FV/TSI

5 MIN

10 MIN

15 MIN

30 MIN

1 HR

3 HR

5 HR

10 HR

20 HR

1.60V

44.47

32.21

23.96

14.30

8.091

3.786

2.552

1.358

0.720

1.65V

41.82

31.06

23.23

13.87

7.863

3.692

2.500

1.346

0.708

1.70V

38.58

29.09

22.09

13.39

7.613

3.596

2.442

1.332

0.699

1.75V

35.35

27.12

20.87

12.93

7.365

3.499

2.383

1.313

0.692

1.80V

31.70

24.98

19.53

12.48

7.139

3.398

2.325

1.298

0.684



Cim npe nrov: Tuam Tshoj Customized Lead Acid Roj teeb 12v 7ah Chaw tsim tshuaj paus, lwm tus neeg, Hoobkas

Lub Valve Regulated Lead Acid Battery 12V 7AH yog tsom rau cov roj teeb uas tswj tau cov kua qaub zoo tib yam, feem ntau yog siv AGM thev naus laus zis thiab tsim, thiab tsim nyog rau ntau yam kev siv xws li pib, xwm txheej, cov khoom ua si hluav taws xob, hluav taws xob teeb thiab lwm yam. Lub roj teeb tau ntim nrog cov cuab yeej siv pa oxygen siab heev, uas tuaj yeem muab kev saib xyuas tsis muaj kev ua haujlwm thiab ua kom yooj yim dua rau koj siv. Peb siv cov qauv los tiv thaiv dej hauv lub roj teeb, kom nws muaj kev sib khi zoo thiab yuav tsis dhau los yog xau thaum ua haujlwm. Tsis tas li ntawd, nws qhov zoo tau txais daim ntawv pov thawj ISO 9001 thiab ISO 14001 daim ntawv pov thawj, UL thiab CE daim ntawv pov thawj, thiab yuav raug tshuaj xyuas dua ua ntej tawm hauv lub hoobkas.


Model: NP{0}}(12V7AH)

Hom Lub Npe: Shimastu

Keeb kwm: Suav teb

OEM Orders: Txais

Voltage ib txwm: 12V

Rated Peev Xwm: 7Ah

Qhov hnyav (kwv yees): 2KGS

Qhov Loj (hli): 151 * 65 * 95 * 101 (± 2)


Nta

Lub plhaub roj teeb ntawm Valve Regulated Lead Acid Battery 12V 7AH muaj cov khoom ABS ntim thiab npog, uas tuaj yeem tsis tsuas yog tiv thaiv lub roj teeb los ntawm kev cuam tshuam sab nraud, tab sis kuj ua kom lub neej kev pab cuam ntawm nws cov khoom siv sab hauv. Nws muaj tus nqi qis tus kheej tawm thiab lub txee lub neej ntev, thiab tuaj yeem khaws lub zog txawm tias nws tsis ua haujlwm ntev, yog li nws tuaj yeem muab lub zog rau lub sijhawm thaum muaj xwm txheej ceev thiab lub zog tsis ua haujlwm. Thiab nws qhov kev ruaj ntseg foob pob hluav taws thiab qhov kev tso tawm sib sib zog nqus rov ua haujlwm tseem yuav muab lub zog zoo ib yam thiab txhim khu kev qha thaum koj xav tau nws tshaj plaws, tso siab dhau thiab tiv thaiv txhua yam kev pheej hmoo.


Daim ntawv thov

1.Uninterrupt
