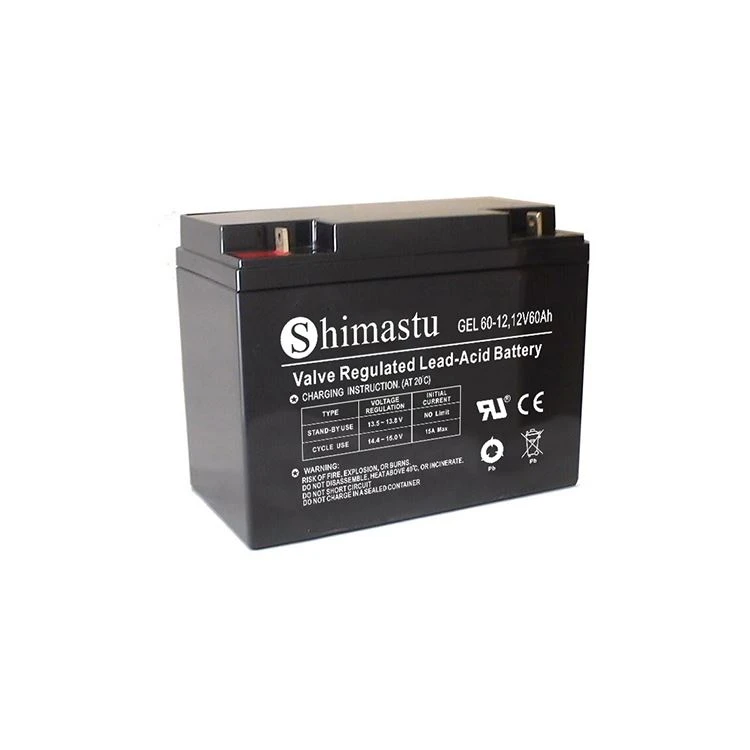

12V 60Ah GEL roj teeb

12V 60Ah GEL roj teeb

Shimastu 12v 60ah gel roj teeb Tsis muaj kua qaub pos huab cua nag lossis daus, tsis muaj electrolyte dhau, tsis muaj combustion, tsis tawg thiab tsis muaj kuab paug. Vim tias cov electrolyte yog khoom, lub roj teeb tseem tuaj yeem siv tau ib txwm siv txawm tias nws lub plhaub tau tawg thaum siv, thiab tsis muaj kua sulfuric acid ntws tawm.

Xa kev nug

image004.jpg image004

PHYSICAL SPECIFICATION

Nominal voltage
Nominal Peev Xwm (10HR)

12V

60 Aw


Dimension

Ntev
Dav
Thawv qhov siab
Tag nrho qhov siab

259 ± 2 hli (10.20 nti)

168 ± 2 hli (6.61 nti)

209 ± 2 hli (8.23 nti)

227 ± 2 hli (8.94 nti)

Qhov hnyav

Kwv yees li. 18.1 Kg ± 3% (39.89 lbs)

Standard Terminal

Bolt-thiab-ntsuab terminal

Bolt Hom: M5

image010image012



Shimastu Gel series Gel Batteries yog tsim los nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev.

Nta:

1.Tshwj xeeb polar phaj tsim, uas ua kom paub tseeb tias tus qauv tsim lub neej ntawm 15 xyoo ntawm 25 degree (770F )

2.Equalized tam sim no faib, cov khoom siv tsis yooj yim rau poob

3.High gas recombination efficiency

4.Zoo sib sib zog nqus tawm resilience kev ua tau zoo

5.No delamination phenomena nyob rau hauv lub electrolyte

6.Manufactured nrog high-porosity

ELECTRICAL SPECIFICATION

Yam ntxwv

Tshem tawm curves @ 25 degree (77 degree F)

Muaj peev xwm

10 teev tus nqi (6A)

5 teev tus nqi (10.2A)

3 teev tus nqi (15A)

1 teev tus nqi (33A)

60 Aw

57 aw ah

45 Aw

33 Aw


Muaj peev xwm cuam tshuam
los ntawm qhov kub thiab txias

40 degree (1040F）

25 degree (770F）

0 degree (320F）

102 feem pua

100 feem pua

85 feem pua

Max tawm tam sim no

600A (5 sec)

Short Circuit Current

1380A

Internal Resistance

Lub roj teeb tag nrho (25 degree, 770F) 6mΩ

Tsis tu ncua Voltage
Them nqi

Lub voj voog

Pib Them Tam sim no tsawg dua 15A

Voltage 14.1 ~ 14.4V ntawm 25 degree (770F )

Kub Coefficient -18mV / degree

Standby

Tsis muaj kev txwv rau Initial Charging Current

Voltage 13.5 ~ 13.8V ntawm 25 degree (770F )

Kub Coefficient -18mV / degree


NTAUB NTAWV TAM SIM NO RATING A@25 degree

FV/TSI

5 MIN

10 MIN

15 MIN

30 MIN

1 HR

3 HR

5 HR

10 HR

20 HR

1.60V

203.4

144.2

108.6

64.9

37.2

17.0

11.4

6.36

3.30

1.65V

189.2

136.3

103.8

62.4

35.8

16.5

11.1

6.27

3.27

1.70V

170.7

125.5

97.2

59.7

34.4

16.0

10.8

6.15

3.22

1.75V

152.9

114.8

90.5

56.8

33.0

15.5

10.5

6.08

3.18

1.80V

134.3

104.0

83.5

54.3

31.8

15.0

10.2

6.00

3.15

Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree

FV/TSI

5 MIN

10 MIN

15 MIN

30 MIN

1 HR

3 HR

5 HR

10 HR

20 HR

1.60V

337.3

245.1

189.8

117.8

69.9

32.4

21.9

12.5

6.45

1.65V

317.2

236.1

184.2

114.5

67.7

31.6

21.4

12.3

6.40

1.70V

292.7

221.4

175.1

110.7

65.5

30.8

20.9

12.1

6.34

1.75V

268.1

206.3

165.3

106.5

63.1

30.0

20.4

12.0

6.27

1.80V

240.4

190.0

154.8

102.8

61.2

29.1

19.9

11.8

6.24



Cim npe nrov: 12v 60ah gel roj teeb, Tuam Tshoj 12v 60ah gel roj teeb manufacturers, lwm tus neeg, Hoobkas

Qhov no 12V 60Ah GEL Roj teeb yog ib hom roj teeb tshwj xeeb, uas siv gel electrolyte es tsis txhob siv cov kua electrolyte ib txwm ua rau cov electrolyte gel. Qhov no colloidal electrolyte tuaj yeem tiv thaiv lub phaj electrode, ua kom muaj peev xwm tu thiab lub neej, thiab ua kom nws muaj zog thiab muaj zog cia tshuaj. Thiab vim hais tias cov khoom yog nyob rau hauv ib tug ruaj khov lub xeev, txawm yog hais tias lub plhaub ntawm lub roj teeb yog yuam kev thaum lub sij hawm siv, yuav tsis muaj kua sulfuric acid ntws tawm, thiab nws tseem yuav siv tau ib txwm. Tsis tas li ntawd, nws muaj kev ua haujlwm zoo sib sib zog nqus, tuaj yeem ua haujlwm ruaj khov hauv lub xeev, thiab tuaj yeem ua tau raws li kev xav tau ntau lub zog.


Nta

Lub 12V 60Ah GEL Roj teeb muaj nyob rau hauv muab nrog colloidal electrolyte rau kev tswj lub peev xwm, uas tuaj yeem tsim cov txheej txheem tiv thaiv ib puag ncig ntawm lub phaj electrode kom ntseeg tau tias muaj hluav taws xob txaus tuaj yeem khaws cia siv txhua lub sijhawm. Cov khoom siv zoo ib puag ncig nws siv tuaj yeem txo cov pa phem pov tseg thiab pab muab cov tshuaj ntxuav kom huv thiab muaj zog dua. Nyob rau tib lub sijhawm, lub roj teeb muaj cov yam ntxwv ntawm kev tso tawm me me ntawm tus kheej thiab lub sijhawm tos ntev, thiab tuaj yeem tso tawm thiab them nyiaj ntau zaus, muab kev sib txuas lus zoo thiab muaj txiaj ntsig zoo, ua rau nws muaj kev ntseeg siab thiab muaj peev xwm siv tau.


Daim ntawv thov

Nws tuaj yeem siv tau ntau yam, suav nrog kev sib txuas lus, kev tsim hluav taws xob, kev faib hluav taws xob, kev tswj cov chaw taws teeb thiab kev tsim hluav taws xob, kev ruaj ntseg fais fab, cov ntaub ntawv engineering systems, tswb ceeb toom thiab teeb pom kev ruaj ntseg.
