PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 100 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		329 ± 2 hli (12.95 nti) 172 ± 2 hli (6.77 nti) 214 ± 2 hli (8.4 nti) 218 ± 2 hli (8.58 nti)
Qhov hnyav				Kwv yees li. 28.5 Kg (62.83 lbs)
Standard Terminal				B3 (Bolt-thiab-txiv ntseej davhlau ya nyob twg) Bolt hom: M6
						Shimastu Gel series Gel Batteries yog tsim los nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev. Nta: 1.Tshwj xeeb polar phaj tsim, uas ua kom paub tseeb tias tus qauv tsim lub neej ntawm 15 xyoo ntawm 25 degree (77 0F) 2.Equalized tam sim no faib, cov khoom siv tsis yooj yim rau poob 3.High gas recombination efficiency 4.Zoo sib sib zog nqus tawm resilience kev ua tau zoo 5.No delamination phenomena nyob rau hauv lub electrolyte 6.Manufactured nrog high-porosity
ELECTRICAL SPECIFICATION
Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (10A) 5 teev tus nqi (17A) 3 teev tus nqi (25A) 1 teev tus nqi (60A)		100 Aw 85ah ua 75 aw ah 60 Aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104 0F) 25 degree (77 0F) 0 degree (32 0F)		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			1000A (5 sec)
Short Circuit Current			2150A
Internal Resistance			Lub roj teeb them tag nrho (25 degree, 77 0F) 6.8mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No tsawg dua 25A Voltage 14.1 ~ 14.4V ntawm 25 degree (77 0F) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77 0F) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	240.4	181.0	108.1	62.0	28.3	18.9	12.7	10.6	5.51
1.65V	218.9	173.0	103.9	59.7	27.4	18.4	12.5	10.4	5.44
1.70V	198.9	162.1	99.5	57.4	26.7	17.9	12.4	10.3	5.36
1.75V	181.7	150.8	94.7	55.0	25.8	17.5	12.2	10.1	5.30
1.80V	165.0	139.2	90.6	53.0	25.0	17.0	12.0	10.0	5.25
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	397.7	316.5	196.4	116.6	54.0	36.6	25.0	20.9	10.8
1.65V	379.4	307.0	190.8	112.8	52.6	35.6	24.6	20.6	10.7
1.70V	351.0	291.8	184.4	109.1	51.3	34.8	24.2	20.3	10.6
1.75V	326.3	275.5	177.3	105.2	50.1	34.0	23.9	20.0	10.5
1.80V	301.5	258.0	171.4	102.0	48.5	33.2	23.7	19.7	10.4

Cim npe nrov: 12v100ah gel roj teeb, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, kev cai, lag luam wholesale, nqe, ntshuam, ua nyob rau hauv Suav teb

Shimastu 12v 100ah gel roj teeb hloov sulfuric acid electrolyte nrog colloidal electrolyte tau txhim kho kev nyab xeeb, lub zog cia, tso tawm kev ua haujlwm thiab kev pabcuam lub neej piv nrog cov roj teeb zoo tib yam. Gel lead-acid roj teeb txais colloidal electrolyte, uas tsis muaj cov kua dawb hauv. Nyob rau hauv tib lub ntim, lub peev xwm electrolyte yog loj, thiab lub tshav kub dissipation muaj zog, uas muaj peev xwm zam lub thermal runaway tshwm sim ntawm cov roj teeb dav dav; Cov electrolyte concentration yog tsawg, thiab cov nyhuv corrosion ntawm electrode phaj tsis muaj zog; Cov concentration yog sib xws, thiab tsis muaj electrolyte stratification. Piv nrog rau cov roj ntsha lead-acid zoo tib yam, nws tsis yooj yim los tsim vulcanization. Yog li ntawd, cov roj teeb gel yog kev saib xyuas tsis pub dawb thiab muaj lub neej ua haujlwm ntev dua li cov roj lead-acid zoo tib yam!

Qauv: GEL 100-12
Rated voltage: 12V

Rated Peev Xwm: 100Ah @ 10HR
Roj teeb pob Dimension: 331 * 172 * 216 * 222mm
Qhov hnyav: 28.5Kg
Terminal hom: M8 (Ntsuas & Txiv ntseej)
Lub roj teeb xim: Dub lossis l

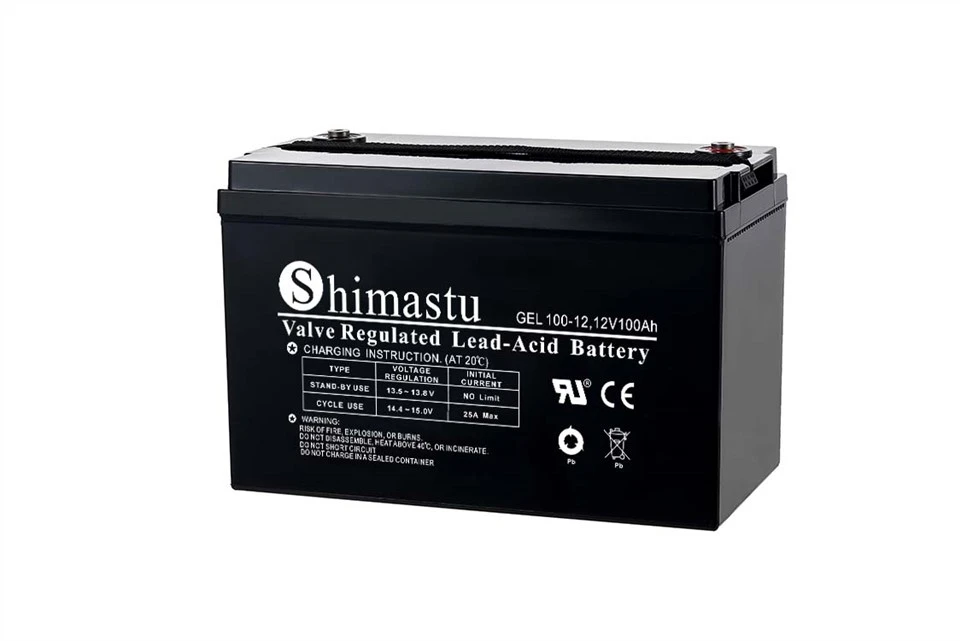

12V 100Ah GEL roj teeb
