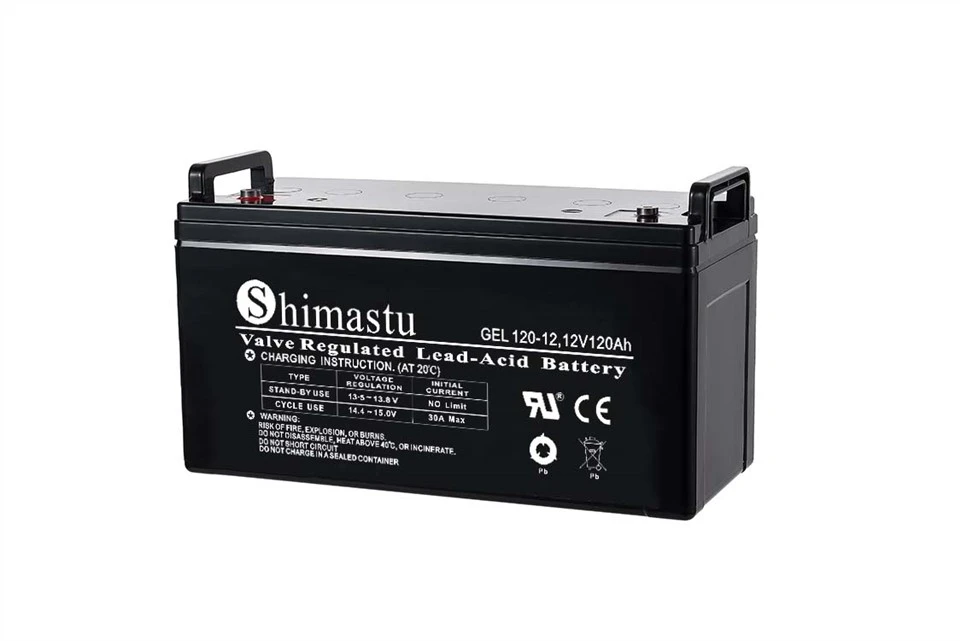

Gel Leisure Roj teeb 120AH

Shimastu Gel Leisure Battery 120AH integrates patent nano gel electrolyte nrog rau cov qauv AGM tshiab. Cov kab no muab lub neej tsim ntev nrog kev caij tsheb kauj vab zoo heev. Qhov no yog qhov zoo heev rau kev siv xov tooj cua sab nraum zoov, kev siv hluav taws xob tauj dua tshiab thiab lwm yam kev siv ib puag ncig hnyav.


PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 120 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		407 ± 2 hli (16.02 nti) 174 ± 2 hli (6.85 nti) 238 ± 2 hli (9.37 nti) 238 ± 2 hli (9.37 nti)
Qhov hnyav				Kwv yees li. 35.5Kg ± 3% (78.26lbs)
Standard Terminal				Bolt-thiab-ntsuab terminal Bolt hom: M6
						Shimastu Gel series Gel Batteries yog tsim los nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev. Nta: 1.Tshwj xeeb polar phaj tsim, uas ua kom paub tseeb tias tus qauv tsim lub neej ntawm 15 xyoo ntawm 25 degree (77⁰F ) 2.Equalized tam sim no faib, cov khoom siv tsis yooj yim rau poob 3.High gas recombination efficiency 4.Zoo sib sib zog nqus tawm resilience kev ua tau zoo 5.No delamination phenomena nyob rau hauv lub electrolyte 6.Manufactured nrog high-porosity
ELECTRICAL SPECIFICATION
Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (12A) 5 teev tus nqi (20.4A) 3 teev tus nqi (30A) 1 teev tus nqi (66A)		120 Aw 102 Aw 90 aw ah 66 aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			1200A (5 sec)
Short Circuit Current			2220A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F)5.2mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam sim no tsawg dua 30A Voltage 14.1 ~ 14.4V ntawm 25 degree (77⁰F ) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77⁰F ) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	280.7	220.1	131.3	74.4	34.0	22.7	15.3	12.7	6.62
1.65V	258.1	210.4	126.1	71.6	32.9	22.1	15.1	12.5	6.53
1.70V	237.6	197.1	120.6	68.9	32.0	21.5	14.8	12.3	6.44
1.75V	217.5	183.5	115.2	66.0	31.0	21.0	14.6	12.2	6.36
1.80V	196.9	169.4	110.2	63.6	30.0	20.4	14.4	12.0	6.30
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	464.4	384.8	238.6	139.9	64.8	43.9	30.0	25.1	13.0
1.65V	447.3	373.3	231.5	135.3	63.1	42.7	29.5	24.7	12.8
1.70V	419.3	354.8	223.5	131.0	61.6	41.8	29.1	24.3	12.7
1.75V	390.7	335.1	215.6	126.3	60.1	40.9	28.7	24.0	12.6
1.80V	359.8	313.9	208.4	122.4	58.2	39.9	28.4	23.6	12.5

Cim npe nrov: gel leisure roj teeb 120ah, Tuam Tshoj gel leisure roj teeb 120ah manufacturers, lwm tus neeg, Hoobkas

Raws li ib qho yooj yim-rau-siv roj teeb, Gel Leisure Battery 120AH integrates patented nano-gel electrolyte thiab AGM qauv, thiab muaj lub neej ntev tsim thiab muaj peev xwm zoo heev. Lub roj teeb yog qhov tsim nyog rau kev siv ib puag ncig hnyav, suav nrog lub zog huv lub zog tsim hluav taws xob, khoom siv hluav taws xob standby, kev sib txuas lus thiab lwm yam haujlwm. Tsis tas li ntawd, nws txais yuav tshwj xeeb polar phaj tsim, uas tuaj yeem ua kom lub neej ntev ntab thiab muab koj lub zog txhim khu kev qha rau lub sijhawm ntev. Nws yog ib tug txhim khu kev qha zog tov haum rau ntau yam kev siv.

Qauv: GEL{0}}(12V120AH)

Hom Lub Npe: Shimastu

Keeb kwm: Suav teb

OEM Orders: Txais

Voltage ib txwm: 12V

Rated Peev Xwm: 120Ah

Qhov hnyav (kwv yees): 35.5KGS

Qhov Loj (hli): 407 * 174 * 238 * 238 (± 2)

Nta

Lub Gel Leisure Battery 120AH yog tsim los nrog ib puag ncig-phooj ywg zoo-purity raw cov ntaub ntawv, thiab txais yuav compact sealing qauv tsim, uas muaj cov pa roj ntau efficiency thiab muaj peev xwm txhim khu lub zog txuag kev ua tau zoo. Nws poob dej tsawg heev hauv kev siv thiab tsis muaj electrolyte delamination, yog li nws tuaj yeem khiav seamlessly hauv ntau daim ntawv thov thiab ncua nws lub neej kev pab cuam. Tsis tas li ntawd, lub roj teeb muaj cov yam ntxwv ntawm tus kheej qis qis, uas tuaj yeem khaws lub zog rau lub sijhawm ntev yam tsis muaj lub zog poob, ua rau nws tsim nyog rau cov ntawv thov uas xav tau kev tso tawm mus ntev thiab them nyiaj.
