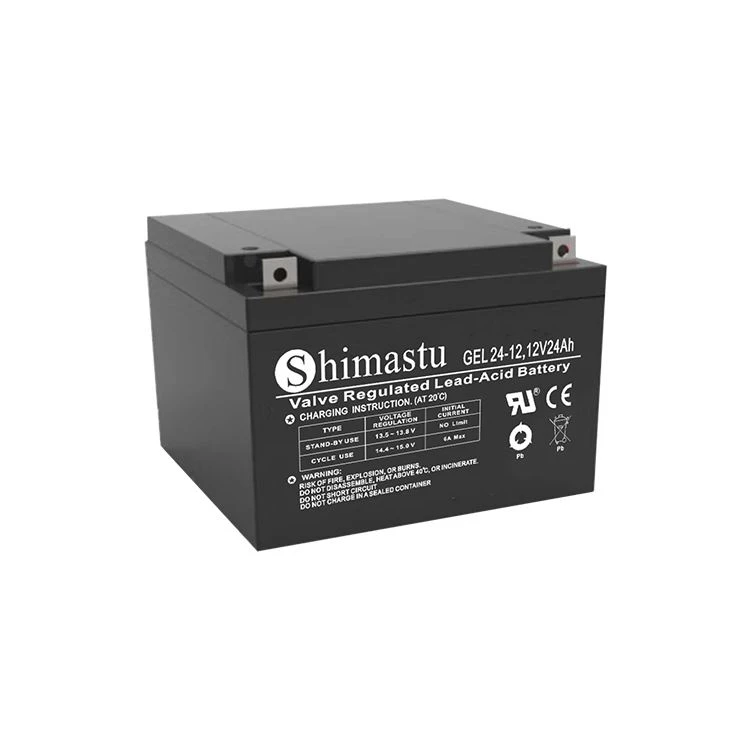

12V 24Ah GEL roj teeb

Shimastu 12v 24ah gel roj teeb yog tsim nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog zoo meej rau nquag cyclic tob paug los yog standby daim ntaub ntawv nyob rau hauv hnyav ib puag ncig, thiab muaj ib tug ntev kev pab cuam lub neej.

Xa kev nug


PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 24 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		175 ± 2 hli (6.89 nti) 165 ± 2 hli (6.50 nti) 126 ± 2 hli (4.96 nti) 126 ± 2 hli (4.96 nti)
Qhov hnyav				Kwv yees li. 8 Kg ± 3% (17.64 lbs)
Standard Terminal				Bolt-thiab-ntsuab terminal Bolt Hom: M5
						Shimastu Gel series Gel Batteries yog tsim los nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev. Nta: 1.Tshwj xeeb polar phaj tsim, uas ua kom paub tseeb tias tus qauv tsim lub neej ntawm 15 xyoo ntawm 25 degree (77⁰F ) 2.Equalized tam sim no faib, cov khoom siv tsis yooj yim rau poob 3.High gas recombination efficiency 4.Zoo sib sib zog nqus tawm resilience kev ua tau zoo 5.No delamination phenomena nyob rau hauv lub electrolyte 6.Manufactured nrog high-porosity
ELECTRICAL SPECIFICATION
Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (2.4A) 5 teev tus nqi (4.08A) 3 teev tus nqi (6A) 1 teev tus nqi (13.16A)		24 Aw 20 Aw 18 Aw 13.2 Aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			240A (5 sec)
Short Circuit Current			850A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 10mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No tsawg dua 6A Voltage 14.1 ~ 14.4V ntawm 25 degree (77⁰F ) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77⁰F ) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	86.77	61.32	44.32	26.25	14.69	6.77	4.53	2.54	1.32
1.65V	80.68	57.94	42.38	25.24	14.18	6.56	4.41	2.50	1.30
1.70V	72.80	53.35	39.69	24.15	13.67	6.39	4.30	2.46	1.28
1.75V	65.23	48.83	36.94	23.05	13.16	6.19	4.19	2.43	1.27
1.80V	57.27	44.20	34.10	22.04	12.73	6.00	4.08	2.40	1.26
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	143.8	104.2	77.48	47.70	27.62	12.91	8.75	5.00	2.58
1.65V	135.3	100.4	75.18	46.33	26.81	12.58	8.52	4.91	2.55
1.70V	124.9	94.15	71.48	44.76	26.00	12.29	8.34	4.84	2.52
1.75V	114.3	87.70	67.48	43.18	25.19	11.99	8.16	4.80	2.51
1.80V	102.5	80.77	63.17	41.69	24.47	11.65	7.98	4.72	2.50

Cim npe nrov: 12v 24ah gel roj teeb, Tuam Tshoj 12v 24ah gel roj teeb manufacturers, lwm tus neeg, Hoobkas

Lub 12V 24Ah GEL roj teeb no yog lub roj teeb gel uas ruaj khov, cov khoom siv sab hauv yog diaphragm, silica gel thiab electrolyte, tshwj xeeb tshaj yog tsim los rau ntau lub voj voog sib sib zog nqus tawm lossis daim ntawv thov standby. Lub roj teeb muaj peev xwm ua kom sov muaj zog thiab ua haujlwm kub ntau, thiab nws tau siv dav hauv qhov chaw thiab cov khoom siv hluav taws xob cia nrog lub sijhawm tos ntev dua. Tsis tas li ntawd, nws txoj kev tso pa tawm tuaj yeem tiv thaiv cov roj tsub zuj zuj, yog li txhim kho kev nyab xeeb thiab ua kom lub neej nyob ntev, ua rau nws tsim nyog rau ntau qhov chaw thiab hnyav.

Qauv: GEL{0}}(12V24AH)

Hom Lub Npe: Shimastu

Keeb kwm: Suav teb

OEM Orders: Txais

Voltage ib txwm: 12V

Rated Peev Xwm: 24Ah

Qhov hnyav (kwv yees): 8KGS

Qhov Loj (hli): 175 * 165 * 126 * 126 (± 2)

Nta

Lub 12V 24Ah GEL Roj teeb no siv cov thev naus laus zis thev naus laus zis tsis muaj oxygen hauv kev tsim khoom, thiab tsis tas yuav tsum tau siv dej ntxiv los yog saib xyuas, yog li nws muaj lub sijhawm tos ntev dua thiab tuaj yeem muab lub zog ruaj khov thiab ruaj khov thaum xav tau. Nws muaj qhov tshwj xeeb polar diaphragm sab hauv, uas tuaj yeem paub qhov sib sib zog nqus tawm thiab tso cai rau rov them rov qab thiab tawm mus yam tsis muaj kev cuam tshuam rau kev ua haujlwm lossis kev pabcuam lub neej. Tsis tas li ntawd, nws cov corrugated separator ua kom muaj zog sib kis tau zoo thiab txo qhov kev pheej hmoo ntawm kev ua haujlwm tsis zoo, kom nws tuaj yeem tswj tau lub xeev ruaj khov ntawm kev siv, thiab tuaj yeem ua haujlwm zoo kawg nkaus hauv qhov kub thiab txias thiab ntau qhov chaw.

Daim ntawv thov

Nws muab lub zog txhim khu kev qha thiab muaj txiaj ntsig zoo rau txhua yam koj xav tau, thiab tau siv dav hauv cov khoom siv kho mob
