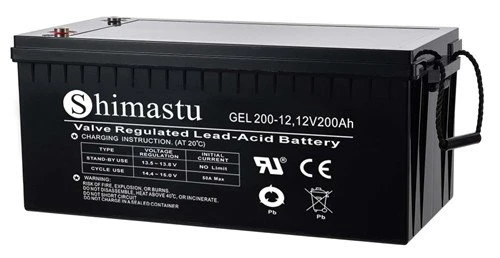

VRLA Roj teeb 12V200AH

Shimastu vrla roj teeb 12v 200ah yog ib qho kev xaiv zoo rau standby lossis niaj hnub siv hluav taws xob xav tau.Lub roj teeb yog tsim los ntawm zoo electrode phaj, tsis zoo electrode phaj, membrane, electrolyte, kev nyab xeeb li qub, roj teeb rooj plaub, thiab lub hau, GEl qauv ntau yam muaj qhov zoo tshaj plaws sib sib zog nqus voj voog durability paug thiab lifespan.

Xa kev nug


PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 200 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		522 ± 2 hli (20.51 nti) 240 ± 2 hli (9.45 nti) 219 ± 2 hli (8.62 nti) 223 ± 2 hli (8.78 nti)
Qhov hnyav				Kwv yees li. 61.2Kg ± 3% (134.92lbs)
Standard Terminal				Bolt-thiab-ntsuab terminal Bolt hom: M8
						Shimastu Gel series Gel Batteries yog tsim los nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev. Nta: 1.Tshwj xeeb polar phaj tsim, uas ua kom paub tseeb tias tus qauv tsim lub neej ntawm 15 xyoo ntawm 25 degree (77⁰F ) 2.Equalized tam sim no faib, cov khoom siv tsis yooj yim rau poob 3.High gas recombination efficiency 4.Zoo sib sib zog nqus tawm resilience kev ua tau zoo 5.No delamination phenomena nyob rau hauv lub electrolyte 6.Manufactured nrog high-porosity
ELECTRICAL SPECIFICATION
Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (20A) 5 teev tus nqi (34A) 3 teev tus nqi (50A) 1 teev tus nqi (110A)		200 Aw 170 Aw 150 Aw 110 Aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			2000A (5 sec)
Short Circuit Current			3430A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 4mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam sim no tsawg dua 50A Voltage 14.1 ~ 14.4V ntawm 25 degree (77⁰F ) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77⁰F ) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	477.1	352.1	216.7	124.0	56.6	37.9	25.4	21.2	11.0
1.65V	438.7	336.6	208.0	119.3	54.8	36.8	25.1	20.9	10.9
1.70V	404.0	315.3	198.9	114.8	53.3	35.9	24.7	20.5	10.7
1.75V	369.8	293.6	190.0	110.0	51.7	35.0	24.4	20.3	10.6
1.80V	334.8	271.0	181.8	106.1	50.0	34.0	24.0	20.0	10.5
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	789.4	615.7	397.7	233.2	108.0	73.1	50.0	41.8	21.7
1.65V	760.4	597.3	385.7	225.6	105.2	71.2	49.1	41.1	21.4
1.70V	712.9	567.7	372.4	218.3	102.7	69.6	48.5	40.6	21.1
1.75V	664.3	536.3	359.7	210.5	100.2	68.1	47.9	40.0	21.0
1.80V	611.7	502.2	347.2	204.0	97.1	66.5	47.3	39.3	20.8

Cim npe nrov: vrla roj teeb 12v200ah, Tuam Tshoj vrla roj teeb 12v200ah manufacturers, lwm tus neeg, Hoobkas

Lub VRLA Battery 12V200AH no yog lub roj teeb zoo tshaj plaws rau kev muag khoom lossis kev siv hluav taws xob txhua hnub, thiab tau siv dav hauv hnub ci lub zog tsim hluav taws xob thiab lub zog cua, sib sib zog nqus tawm UPS, sab nraum zoov lub zog cia thiab lwm yam haujlwm. Nws muaj cov phaj zoo, phaj tsis zoo, daim nyias nyias, electrolyte, kev nyab xeeb valve, lub thawv roj teeb thiab npog. Lub roj teeb yuav muab qhov zoo tshaj plaws kev sib sib zog nqus lub voj voog durability tawm thiab kev pabcuam lub neej, thiab tuaj yeem siv rau ntau qhov chaw hnyav nrog lub neej ua haujlwm ntev. Qhov no yog vim nws yog ua los ntawm high-purity raw cov ntaub ntawv, kom koj muaj kev nyab xeeb, ruaj khov thiab tsis muaj hluav taws xob kev paub.

Specifications

● Nominal voltage: 12V

● Nominal peev: 200Ah (10h tus nqi)

● Kev them nyiaj ntau tshaj tam sim no: 40A

● luv Circuit Court tam sim no: 3430A

● Tus nqi tso tawm tus kheej:<1% per month

● Lub neej voj voog ntawm 30 feem pua DOD: 1800

● Kev tswj lub siab: kev ruaj ntseg valve ntsia

● Terminal hom: M8 (Bolt-and-nut)

● Ua haujlwm kub: los ntawm -20C mus rau 60C

● Loj: 522 x 240 x 219 mm

● Nyhav: 61.2kg

Nta

Lub VRLA Roj teeb 12V200AH yog nruab nrog cov nyiaj-plated tooj liab terminals, tooj dag insertion terminals thiab txhuas terminals, uas tuaj yeem ua kom muaj kev txhim kho ntawm conductivity thiab lub zog zoo thiab zoo ib yam. Nws muaj peev xwm ua kom muaj cua sov muaj zog, uas ua rau nws tuaj yeem tiv taus qhov kub thiab txias thiab ua tau zoo nyob rau hauv kev ua haujlwm hnyav, thiab tuaj yeem siv rau sab nraum zoov thiab sab hauv tsev ntawm ntau qhov kub thiab txias. Nyob rau tib lub sijhawm, kev siv cov tshuab oxygen compound ua rau nws tsis muaj kev saib xyuas, thiab tsis tas yuav muaj kev tshuaj xyuas tsis tu
