12V 250Ah GEL roj teeb

Shimastu 12v 250ah gel roj teeb yog tsim los nrog cov tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev.

Xa kev nug


PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 250 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		520 ± 2 hli (20.47 nti) 269 ± 2 hli (10.59 nti) 220 ± 2 hli (8.66 nti) 225 ± 2 hli (8. {3}} ntiv tes)
Qhov hnyav				Kwv yees li. 73Kg ± 3% (160.94lbs)
Standard Terminal				Bolt-thiab-ntsuab terminal Bolt hom: M8
						Shimastu Gel series Gel Batteries yog tsim los nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev. Nta: 1.Tshwj xeeb polar phaj tsim, uas ua kom paub tseeb tias tus qauv tsim lub neej ntawm 15 xyoo ntawm 25 degree (77⁰F ) 2.Equalized tam sim no faib, cov khoom siv tsis yooj yim rau poob 3.High gas recombination efficiency 4.Zoo sib sib zog nqus tawm resilience kev ua tau zoo 5.No delamination phenomena nyob rau hauv lub electrolyte 6.Manufactured nrog high-porosity
ELECTRICAL SPECIFICATION

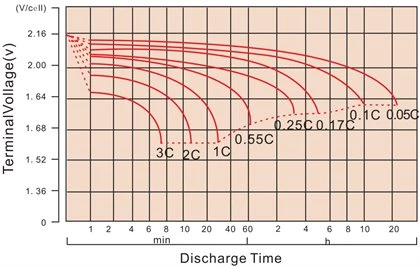

Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (25A) 5 teev tus nqi (42.5A) 3 teev tus nqi (62.5A) 1 teev tus nqi (137.5A)		250 Aw 213 Aw 188 Aw 138 Aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			2500A (5 sec)
Short Circuit Current			4000A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 4mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No tsawg dua 62.5A Voltage 14.1 ~ 14.4V ntawm 25 degree (77⁰F ) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77⁰F ) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	15 MIN	30 MIN	1 HR	3 HR	4 HR	5 HR	8 HR ua	10 HR		20 HR
1.60V	440.2	270.9	155.0	70.8	55.6	47.3	31.8	26.4		13.8
1.65V	420.8	260.0	149.1	68.6	54.1	46.1	31.4	26.1		13.6
1.70V	394.1	248.7	143.5	66.7	52.7	44.8	30.9	25.7		13.4
1.75V	367.0	237.6	137.5	64.6	51.3	43.7	30.5	25.3		13.3
1.80V	338.8	227.2	132.6	62.5	49.8	42.5	30.0	25.0		13.1
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	15 MIN	30 MIN	1 HR	3 HR	4 HR	5 HR	8 HR ua		10 HR		20 HR
1.60V	769.5	492.1	291.5	135.0	106.8	91.4	62.5		52.2		27.1
1.65V	746.6	477.2	282.0	131.5	104.3	89.0	61.4		51.4		26.8
1.70V	709.6	461.1	272.9	128.3	101.8	87.0	60.6		50.7		26.4
1.75V	670.5	445.0	263.1	125.2	99.6	85.1	59.9		50.0		26.3
1.80V	627.7	429.7	254.9	121.3	97.1	83.1	59.1		49.2		26.0

Cim npe nrov: 12v 250ah gel roj teeb, Tuam Tshoj 12v 250ah gel roj teeb manufacturers, lwm tus neeg, Hoobkas

Lub 12V 250Ah GEL roj teeb no yog tsim los ntawm cov diaphragm tshwj xeeb thiab silica gel tsau electrolyte hauv lub roj teeb, thiab cov khoom siv tshwj xeeb corrosion-resistant grid alloy yog nruab rau hauv, uas tuaj yeem ua haujlwm ruaj khov. Nws siv cov cuab yeej sib dhos nruj kom ntseeg tau tias kev sib koom ua ke ntawm cov khoom sab hauv thiab txo qhov muaj peev xwm ntawm cov khoom siv sab hauv. Nyob rau tib lub sijhawm, nws muaj ntau txoj haujlwm, suav nrog kev sib sib zog nqus lub voj voog tawm ua haujlwm thiab kev tsim cov ntaub ntawv pov thawj, uas tuaj yeem ua kom muaj zog thiab ua haujlwm tau zoo thiab tsim nyog rau kev sib sib zog nqus tawm los yog daim ntawv thov nyob rau hauv ib puag ncig hnyav.

Nta:

Lub 12V 250Ah GEL Roj teeb yog tsim los ntawm cov khoom siv zoo purity, uas tuaj yeem ua kom lub zog cia siab tshaj plaws thiab ua tau raws li txhua yam koj xav tau. Los ntawm cov thev naus laus zis thev naus laus zis thev naus laus zis, nws tuaj yeem txhim kho cov tshuaj tiv thaiv nrawm, tshem tawm cov kev pheej hmoo ntawm cov kua qaub nag lossis daus, thiab txhawb kev huv thiab kev nyab xeeb ntawm lub zog cia. Nyob rau tib lub sijhawm, lub roj teeb tau nruab nrog lub tshuab sealing txhim khu kev qha kom ntseeg tau tias muaj kev nyab xeeb thiab tsis muaj kev siv cov yam ntxwv, los xyuas kom meej qhov chaw ua haujlwm huv thiab nyab xeeb, thiab muab lub zog rau koj cov cuab yeej kom nyab xeeb thiab ruaj khov.

Daim ntawv thov:

1. Kev sib txuas lus: tsheb xov tooj, xov tooj ntawm tes, xov tooj cua xa xov tooj cua, lub davhlau ya nyob twg.
2. Lub hwj chim: cov cuab yeej hluav taws xob, cov khoom ua si, lub tshuab nqus tsev nqus, cov neeg tsis muaj zog.
3. Teeb pom kev zoo, teeb pom kev zoo thaum muaj xwm ceev, kev ruaj ntseg.

4. EPS thiab UPS systems.
5. Fais fab mov rau lwm yam khoom siv portable los yog portable cuab
