PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 200 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		522 ± 2 hli (20.51 nti) 240 ± 2 hli (9.45 nti) 219 ± 2 hli (8.62 nti) 223 ± 2 hli (8.78 nti)
Qhov hnyav				Kwv yees li. 61.2Kg ± 3% (134.92lbs)
Standard Terminal				Bolt-thiab-ntsuab terminal Bolt hom: M8
						Shimastu Gel series Gel Batteries yog tsim los nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev. Nta: 1.Tshwj xeeb polar phaj tsim, uas ua kom paub tseeb tias tus qauv tsim lub neej ntawm 15 xyoo ntawm 25 degree (77⁰F ) 2.Equalized tam sim no faib, cov khoom siv tsis yooj yim rau poob 3.High gas recombination efficiency 4.Zoo sib sib zog nqus tawm resilience kev ua tau zoo 5.No delamination phenomena nyob rau hauv lub electrolyte 6.Manufactured nrog high-porosity
ELECTRICAL SPECIFICATION

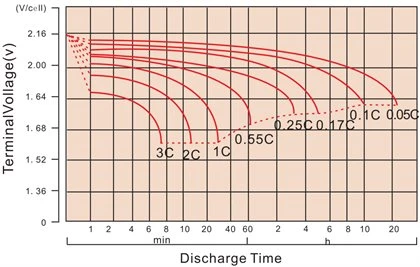

Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (20A) 5 teev tus nqi (34A) 3 teev tus nqi (50A) 1 teev tus nqi (110A)		200 Aw 170 Aw 150 Aw 110 Aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			2000A (5 sec)
Short Circuit Current			3430A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 4mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam sim no tsawg dua 50A Voltage 14.1 ~ 14.4V ntawm 25 degree (77⁰F ) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77⁰F ) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	477.1	352.1	216.7	124.0	56.6	37.9	25.4	21.2	11.0
1.65V	438.7	336.6	208.0	119.3	54.8	36.8	25.1	20.9	10.9
1.70V	404.0	315.3	198.9	114.8	53.3	35.9	24.7	20.5	10.7
1.75V	369.8	293.6	190.0	110.0	51.7	35.0	24.4	20.3	10.6
1.80V	334.8	271.0	181.8	106.1	50.0	34.0	24.0	20.0	10.5
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	789.4	615.7	397.7	233.2	108.0	73.1	50.0	41.8	21.7
1.65V	760.4	597.3	385.7	225.6	105.2	71.2	49.1	41.1	21.4
1.70V	712.9	567.7	372.4	218.3	102.7	69.6	48.5	40.6	21.1
1.75V	664.3	536.3	359.7	210.5	100.2	68.1	47.9	40.0	21.0
1.80V	611.7	502.2	347.2	204.0	97.1	66.5	47.3	39.3	20.8

Cim npe nrov: 200 amp gel roj teeb, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, kev cai, lag luam wholesale, nqe, ntshuam, ua nyob rau hauv Suav teb

Specifications:

● Nominal voltage: 12V

● Nominal peev: 200Ah (10h tus nqi)

● Kev them nyiaj ntau tshaj tam sim no: 40A

● luv Circuit Court tam sim no: 3430A

● Tus nqi tso tawm tus kheej:<1% per="" month="">

● Lub neej voj voog ntawm 30 feem pua DOD: 1800

● Kev tswj lub siab: kev ruaj ntseg valve ntsia

● Terminal hom: M8 (Bolt-and-nut)

● Ua haujlwm kub: los ntawm -20C mus rau 60C

● Loj: 522 x 240 x 219 mm

● Nyhav: 61.2kg

DESCRIPTION:

● Kev Kho Mob Dawb & Tsis Muaj Dej: Lub roj teeb no muaj cov gel es tsis txhob ua kua, yog li tsis muaj kev saib xyuas yuav tsum tau ua kom lub roj teeb ua haujlwm zoo. Tsim nrog lub siab tshaj plaws valve tswj tshuab, Shimastu Deep Cycle Hybrid GEL Roj teeb txuag koj ntawm cov kua qaub thiab tsis tu ncua.

●Extended Service Lifetime: Corrosion-resistant grids enables a design life of up to 15years in standby applications and more than 750 charge/discharge cycles at 50% DOD in cyclic applications.

●Longer Txee L

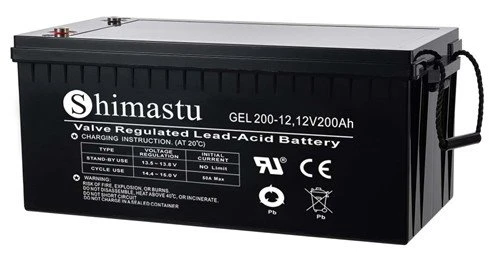

200 Amp GEL roj teeb
