PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 150 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		485 ± 2 hli (19.09 nti) 170 ± 2 hli (6.69 nti) 241 ± 2 hli (9.49 nti) 241 ± 2 hli (9.49 nti)
Qhov hnyav				Kwv yees li. 44Kg ± 3% (97 lbs)
Standard Terminal				Bolt-thiab-ntsuab terminal Bolt hom: M8
						Shimastu Gel series Gel Batteries yog tsim los nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev. Nta: 1.Tshwj xeeb polar phaj tsim, uas ua kom paub tseeb tias tus qauv tsim lub neej ntawm 15 xyoo ntawm 25 degree (77⁰F ) 2.Equalized tam sim no faib, cov khoom siv tsis yooj yim rau poob 3.High gas recombination efficiency 4.Zoo sib sib zog nqus tawm resilience kev ua tau zoo 5.No delamination phenomena nyob rau hauv lub electrolyte 6.Manufactured nrog high-porosity
ELECTRICAL SPECIFICATION

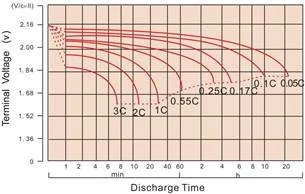

Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (15A) 5 teev tus nqi (25.5A) 3 teev tus nqi (37.5A) 1 teev tus nqi (82.5A)		150 Aw 128 Aw 113 Aw 82,5 ua
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			1500A (5 sec)
Short Circuit Current			2700A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 4.3mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No tsawg dua 37.5A Voltage 14.1 ~ 14.4V ntawm 25 degree (77⁰F ) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77⁰F ) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	357.9	264.1	162.5	93.0	42.5	28.4	19.1	15.9	8.27
1.65V	329.1	252.5	156.0	89.5	41.1	27.6	18.8	15.7	8.16
1.70V	303.0	236.5	149.2	86.1	40.0	26.9	18.5	15.4	8.05
1.75V	277.3	220.2	142.5	82.5	38.8	26.2	18.3	15.2	7.95
1.80V	251.1	203.3	136.3	79.5	37.5	25.5	18.0	15.0	7.88
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	592.1	461.8	295.2	174.9	81.0	54.8	37.5	31.3	16.3
1.65V	570.3	447.9	286.5	169.2	78.9	53.4	36.9	30.9	16.1
1.70V	534.6	425.8	276.6	163.7	77.0	52.2	36.3	30.4	15.8
1.75V	498.2	402.2	266.8	157.8	75.1	51.1	35.9	30.0	15.8
1.80V	458.7	376.6	257.9	153.0	72.8	49.8	35.5	29.5	15.6

Cim npe nrov: 12v150ah gel roj teeb, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, kev cai, lag luam wholesale, nqe, ntshuam, ua nyob rau hauv Suav teb

Shimastu 12v 150ah gel roj teeb yog tsim los nrog cov tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev siv ntau zaus cyclic sib sib zog nqus tawm los yog standby daim ntawv thov nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev.

Nta:

1. Lub neej ntev roj teeb, muaj peev xwm siab, Kev rov zoo dua tom qab tso tawm.
2. Cov khoom siv ABS: Ua kom lub zog ntawm lub thawv roj teeb. (Nplaim-retardant ABS yog xaiv tau)
3. Cov khoom siv purity siab: xyuas kom tus kheej tawm tus nqi qis.
4. tooj liab terminals txhim kho cov hluav taws xob conductivity.
5. Pb CaSn alloy rau phaj daim phiaj: tsawg dua gassing, tsis tshua muaj tus kheej tso tawm zoo.
6. Kev tu-dawb ua haujlwm
7. Tsawg tus kheej tso tawm

Daim ntawv thov:

1.Solar power system & Cua system

2.UPS tso tawm tob

3. Sab nraum zoov lub zog cia tshuab

4. Kev sib txuas lus systems

5. Cov tshuab hluav taws xob

6. Cov tsheb

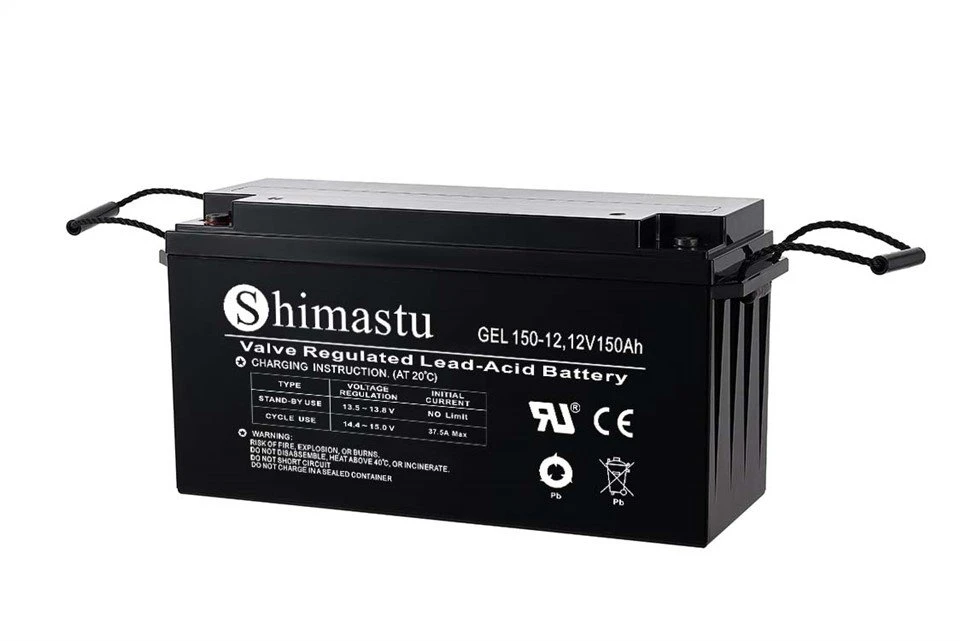

12V 150Ah GEL roj teeb
