PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (20HR)				12V 7 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		151 ± 1 hli (5.94 nti) 65 ± 1 hli (2.56 nti) 95 ± 1 hli (3.74 nti) 101 ± 1 hli (3.98 nti)
Qhov hnyav				Kwv yees li. 2.0 Kg ± 3% (4.41 lbs)
Standard Terminal				Fasten Tab No.187E(F1)
						Shimastu NP series AGM VRLA Roj teeb tau tsim los ua cov roj teeb lub hom phiaj, lawv yog cov roj teeb tswj cov kua qaub uas muaj cov khoom zoo siab Absorbed iav Matt (AGM) cov khoom sib cais & cov khoom siv purity siab, tshwj xeeb los ntawm kev ua tau zoo thiab txhim khu kev qha kev pabcuam lub neej. Nta: 1.Ntawm-spillable 2.Sealed and Maintenance-free Operation 3.Qhov zoo thiab kev ntseeg siab 4. Tsawg gassing, qis tus kheej tso tawm 5. Tsawg sab hauv tsis kam 6.Long tsim lub neej mus txog 6 xyoo hauv kev pabcuam ntab ntawm 25 degree (77 0F)
ELECTRICAL SPECIFICATION
Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			20 teev tus nqi (0.35A) 10 teev tus nqi (0.658A) 5 teev tus nqi (1.19A) 3 teev tus nqi (1.75A) 1 teev tus nqi (3.85A)		7. 0Aw 6.6 aw 6. 0 Aw 5.3 aw 3.9 aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			70A (5 sec)
Short Circuit Current			340A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 25mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No tsawg dua 2.1A Voltage 14.4 ~ 15. 0V ntawm 25 degree (77⁰F ) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77⁰F ) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	26.83	18.96	13.71	7.871	4.305	1.982	1.324	0.691	0.365
1.65V	24.95	17.92	13.10	7.556	4.161	1.925	1.292	0.683	0.360
1.70V	22.50	16.49	12.27	7.222	4.004	1.866	1.257	0.676	0.354
1.75V	20.16	15.10	11.42	6.903	3.850	1.808	1.223	0.665	0.350
1.80V	17.71	13.67	10.54	6.598	3.710	1.750	1.190	0.658	0.346
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	44.47	32.21	23.96	14.30	8.091	3.786	2.552	1.358	0.720
1.65V	41.82	31.06	23.23	13.87	7.863	3.692	2.500	1.346	0.708
1.70V	38.58	29.09	22.09	13.39	7.613	3.596	2.442	1.332	0.699
1.75V	35.35	27.12	20.87	12.93	7.365	3.499	2.383	1.313	0.692
1.80V	31.70	24.98	19.53	12.48	7.139	3.398	2.325	1.298	0.684

Cim npe nrov: 12v7ah roj teeb rau tswb, Tuam Tshoj 12v7ah roj teeb rau tswb system manufacturers, lwm tus neeg, Hoobkas

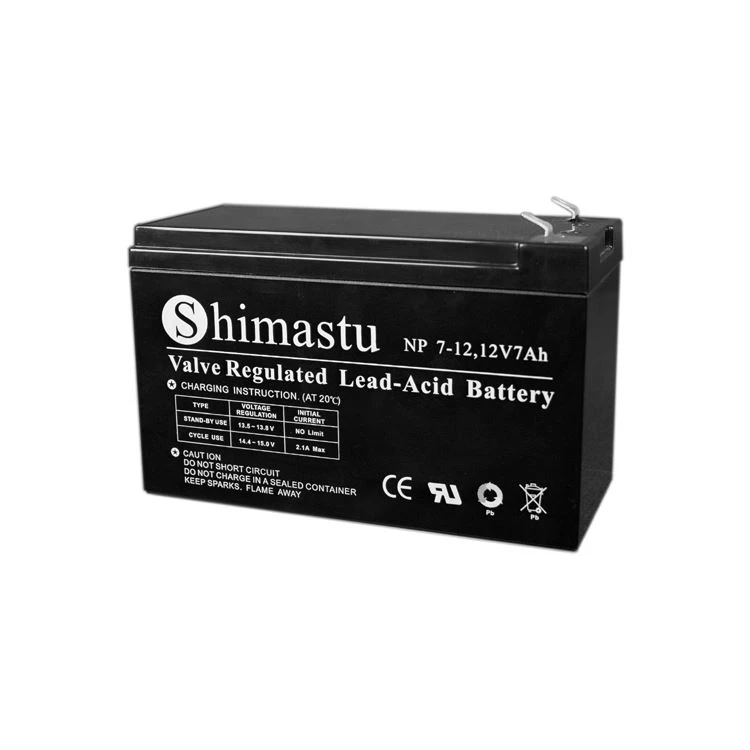

Lub 12V7Ah Roj teeb rau Tswb System yog lub roj teeb tswj cov kua qaub, uas tau txais cov khoom zoo siab absorbing iav lev (AGM) cais thiab cov khoom siv purity siab los muab cov kev daws teeb meem zoo thiab muaj zog. Nws cov electrolyte yog absorbed kiag li nyob rau hauv lub AGM diaphragm, thiab cov electrode phaj muaj ib tug loj loj tsim, uas ua rau nws muaj kev ua tau zoo tso tawm. Nyob rau tib lub sijhawm, qhov tshwj xeeb los ntawm phab ntsa vuam txoj kev ntawm lub roj teeb tuaj yeem ua rau muaj peev xwm ua tau tam sim no thiab txhim kho kev tiv thaiv kev vibration ntawm lub roj teeb, uas tuaj yeem ua haujlwm ruaj khov thaum siv ntau qhov chaw. Qhov no yuav pab kom muaj kev nyab xeeb ntawm koj lub tswb thiab ua rau koj tsev neeg lossis kev lag luam muaj kev nyab xeeb.

Nta

Lub electrolyte ntawm 12V7Ah Roj teeb rau Alarm System txais cov qauv ua kua nyias thiab yog nqus hauv AGM diaphragm, yog li tsis muaj cov dej ntws hauv lub roj teeb, thiab dej tsis tas yuav tsum tau siv thaum siv, uas txo cov txij nkawm lub zog. Lub roj teeb muaj tus nqi qis rau tus kheej, uas ua kom ntseeg tau tias nws tuaj yeem khaws nws cov nqi thaum lub sijhawm khaws cia ntev thiab muab lub zog ruaj khov thaum xav tau. Nrog kev sib khi zoo heev, nws tuaj yeem tiv thaiv kev ua qias tuaj thiab xeb los ntawm cov pa sab nraud thiab cov plua plav, txhawm rau tiv thaiv nws cov khoom siv sab hauv thiab txhawb kev ua haujlwm ntev thiab txhim khu kev qha.
