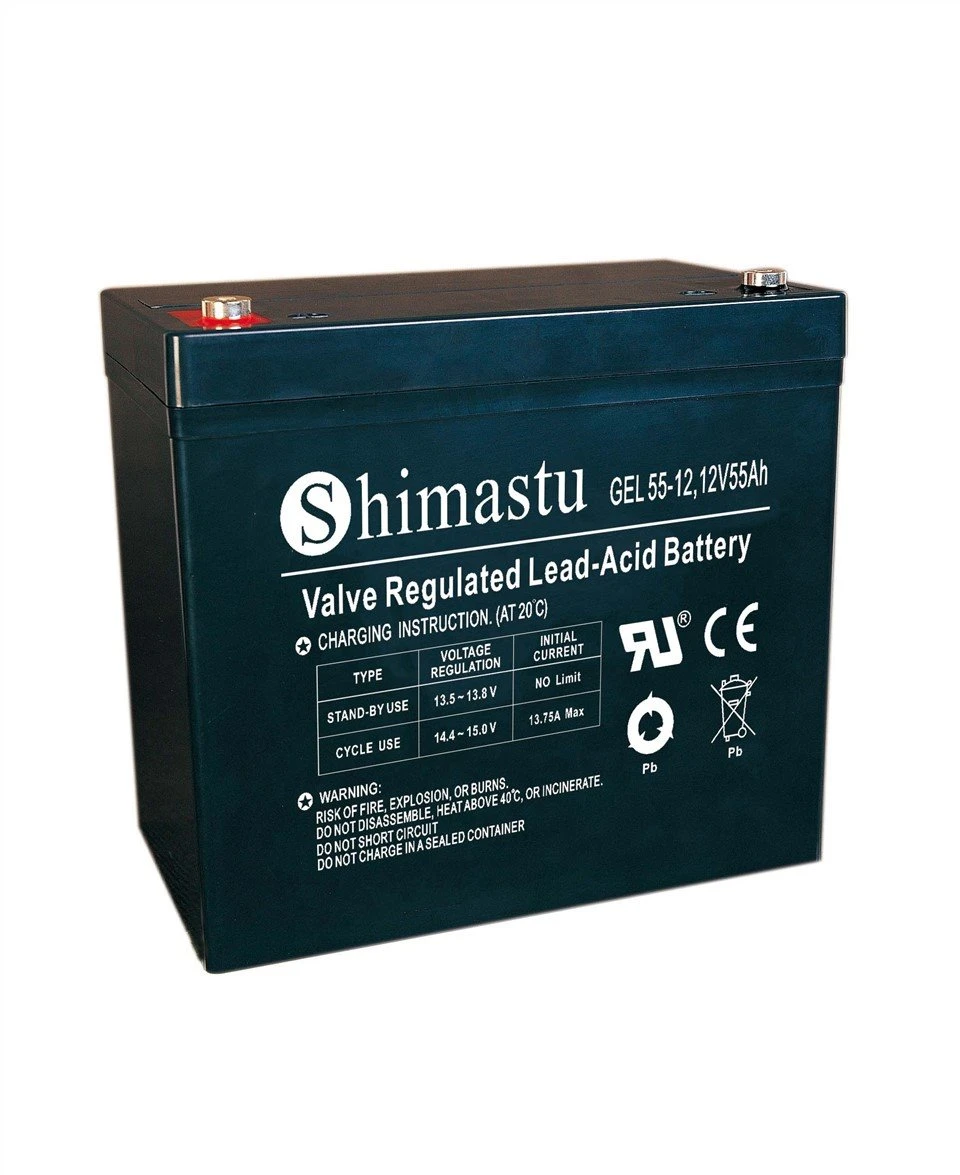

12V 55Ah GEL roj teeb

Shimastu Gel series 12v 55ah gel roj teeb yog tsim nrog tshwj xeeb cais thiab silicagel immobilizing cov electrolyte hauv lub roj teeb, qhov no zoo heev rau kev sib tham sab nraum zoov daim ntawv thov, lub zog tauj dua tshiab & lwm yam kev siv ib puag ncig hnyav.

Xa kev nug


PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 55 Ah aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		229 ± 2 hli (9.02 nti) 138 ± 2 hli (5.43 nti) 208 ± 2 hli (8.19 nti) 213 ± 2 hli (8.39 nti)
Qhov hnyav				Kwv yees li. 17 Kg ± 3% (37.48 lbs)
Standard Terminal				Bolt-thiab-ntsuab terminal Bolt hom: M6
						Shimastu Gel series Gel Batteries yog tsim los nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev. Nta: 1.Tshwj xeeb polar phaj tsim, uas ua kom paub tseeb tias tus qauv tsim lub neej ntawm 15 xyoo ntawm 25 degree (77⁰F ) 2.Equalized tam sim no faib, cov khoom siv tsis yooj yim rau poob 3.High gas recombination efficiency 4.Zoo sib sib zog nqus tawm resilience kev ua tau zoo 5.No delamination phenomena nyob rau hauv lub electrolyte 6.Manufactured nrog high-porosity
ELECTRICAL SPECIFICATION
Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (5.5A) 5 teev tus nqi (9.35A) 3 teev tus nqi (13.8A) 1 teev tus nqi (30.3A)		55 Ah aw 46,8 ua 41.4 aw 30.3 ah ib
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104 0F) 25 degree (77 0F) 0 degree (32 0F)		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			550A (5 sec)
Short Circuit Current			1160A
Internal Resistance			Lub roj teeb them tag nrho (25 degree ,77 0F) 6mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No tsawg dua 13.7A Voltage 14.1 ~ 14.4V ntawm 25 degree (77 0F) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77 0F) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	192.9	132.2	99.5	59.5	34.1	15.6	10.4	5.83	3.03
1.65V	179.4	124.9	95.2	57.2	32.8	15.1	10.1	5.75	3.00
1.70V	161.9	115.0	89.1	54.7	31.6	14.7	9.87	5.64	2.95
1.75V	145.0	105.3	83.0	52.1	30.3	14.2	9.62	5.57	2.92
1.80V	127.3	95.3	76.6	49.8	29.2	13.8	9.35	5.50	2.88
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	319.8	224.7	174.0	108.0	64.1	29.7	20.1	11.5	5.92
1.65V	300.8	216.4	168.9	104.9	62.0	28.9	19.6	11.3	5.87
1.70V	277.6	203.0	160.5	101.4	60.0	28.2	19.1	11.1	5.81
1.75V	254.2	189.1	151.5	97.6	57.9	27.5	18.7	11.0	5.74
1.80V	228.0	174.1	141.9	94.3	56.1	26.7	18.3	10.8	5.72

Daim ntawv thov:

Cim npe nrov: 12v 55ah gel roj teeb, Tuam Tshoj 12v 55ah gel roj teeb manufacturers, lwm tus neeg, Hoobkas

Exhibition:

Lub 12V 55Ah GEL Roj teeb no yog lub roj teeb uas tsim nyog rau kev siv sab nraum zoov, cov tshuab hluav taws xob txuas ntxiv thiab lwm yam kev siv ib puag ncig hnyav. Nws yog tsim los ntawm cov diaphragm tshwj xeeb thiab electrolyte hauv cov roj teeb ruaj khov, thiab muaj lub neej ntev tshaj li 15 xyoo, ua kom lub zog ntev thiab txhim khu kev qha. Lub roj teeb tau tsim tshwj xeeb los tiv thaiv cov xwm txheej huab cua thiab tuaj yeem ua haujlwm zoo kawg nkaus hauv kev ua haujlwm kub ntawm -20 C txog 55 degree, ua rau nws haum rau ntau qhov chaw thiab huab cua. Tsis tas li ntawd, nws muaj qhov tso tawm tus kheej qis, uas tuaj yeem khaws lub zog rau lub sijhawm ntev, yog li txuag lub zog thiab ua kom ntseeg tau tias nws tuaj yeem siv tau thaum twg koj xav tau.

Nta:

Qhov no 12V 55Ah GEL Roj teeb muaj kev ua haujlwm zoo sib sib zog nqus, thiab tuaj yeem raug ua kom zoo nkauj 750 lub voj voog sib sib zog nqus, kom nws tuaj yeem them thiab tawm ntau zaus yam tsis muaj kev cuam tshuam rau kev ua haujlwm. Thib ob, nws qhov kev ua tau zoo tau dhau UL, CE thiab ISO daim ntawv pov thawj, uas qhia tau hais tias muaj peev xwm rov qab tau zoo heev, txawm tias tom qab tawm qhov hnyav, muab kev txhawj xeeb tsis muaj zog rau koj. Tsis tas li ntawd, nws lub roj teeb lub neej expectancy yog ntev li 15 xyoo, ua kom muaj kev ua haujlwm zoo hauv ntau qhov chaw, ua rau nws haum rau ntau yam kev siv thiab qhov chaw.

Cov txheej txheem tsim khoom:

· Cov phaj zoo - tuab siab Sn qis Ca daim phiaj txo qis corrosion thiab ua rau lub neej ntev

· Cov phaj tsis zoo - Sib npaug Pb-Ca daim phiaj rau kev txhim kho kev ua kom rov zoo dua

· Separator – Advanced AGM separator rau ultra low float current

· Electrolyte - Dilute siab purity sulfuric acid nrog nano gel

· Roj teeb ntim thiab npog - ABS

· Pillar foob - 100 feem pua lub Hoobka
