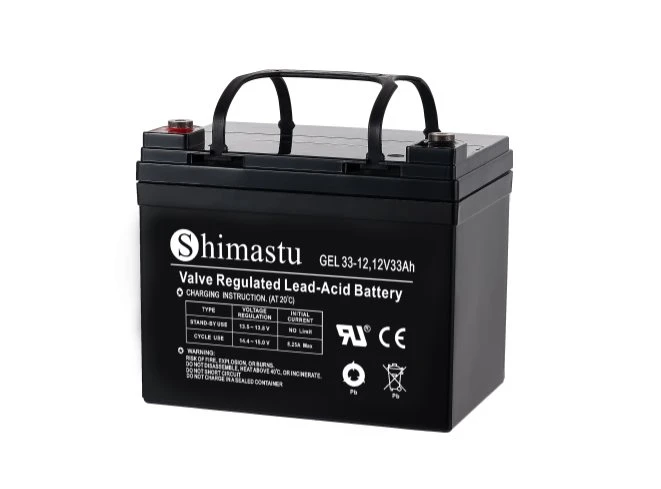

12V 33Ah GEL roj teeb

Shimastu Gel series Gel Batteries yog tsim los nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev.

Xa kev nug

Specifications:


PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 33 Aw
Dimension		Ntev Dav Thawv Hight Tag nrho qhov siab		196 ± 2 hli (7.72 nti) 131 ± 2 hli (5.16 nti) 163 ± 2 hli (6.42 nti) 168 ± 2 hli (6.61 nti)
Qhov hnyav				Kwv yees li. 10.8Kg ± 3% (23.81lbs)
Standard Terminal				Bolt-thiab-ntsuab terminal Bolt hom: M6
						Shimastu Gel series Gel Batteries yog tsim los nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev. Nta: 1.Tshwj xeeb polar phaj tsim, uas ua kom paub tseeb tias tus qauv tsim lub neej ntawm 15 xyoo ntawm 25 degree (77⁰F ) 2.Equalized tam sim no faib, cov khoom siv tsis yooj yim rau poob 3.High gas recombination efficiency 4.Zoo sib sib zog nqus tawm resilience kev ua tau zoo 5.No delamination phenomena nyob rau hauv lub electrolyte 6.Manufactured nrog high-porosity
ELECTRICAL SPECIFICATION
Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (3.3A) 5 teev tus nqi (5.61A) 3 teev tus nqi (8.25A) 1 teev tus nqi (18.2A)		33 Aw 28 Aw 24.8 ah ib 18.2 Nws
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104 0F) 25 degree (77 0F) 0 degree (32 0F)		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			330A (5 sec)
Short Circuit Current			825A
Internal Resistance			Lub roj teeb them tag nrho (25 degree ,77 0F) 10mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No tsawg dua 8.2A Voltage 14.1 ~ 14.4V ntawm 25 degree (77 0F) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77 0F) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	119.3	84.32	60.94	36.40	20.50	9.34	6.25	3.50	1.82
1.65V	110.9	79.67	58.27	35.00	19.70	9.05	6.08	3.45	1.80
1.70V	100.1	73.36	54.57	33.50	19.00	8.80	5.92	3.38	1.77
1.75V	89.68	67.14	50.79	31.90	18.20	8.53	5.77	3.34	1.75
1.80V	78.75	60.78	46.89	30.50	17.50	8.25	5.61	3.30	1.73
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	197.8	143.3	106.5	66.13	38.55	17.81	12.07	6.89	3.55
1.65V	186.0	138.0	103.4	64.25	37.24	17.36	11.75	6.76	3.52
1.70V	171.7	129.5	98.3	62.11	36.13	16.94	11.48	6.66	3.49
1.75V	157.2	120.6	92.78	59.75	34.82	16.53	11.23	6.60	3.45
1.80V	141.0	111.1	86.86	57.71	33.65	16.02	10.97	6.49	3.43

Daim ntawv thov:

Cim npe nrov: 12v 33ah gel roj teeb, Tuam Tshoj 12v 33ah gel roj teeb manufacturers, lwm tus neeg, Hoobkas

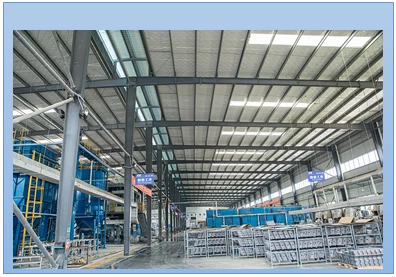

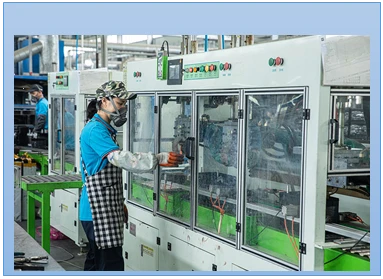

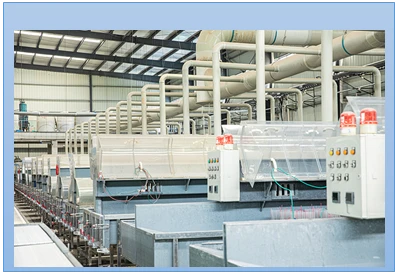

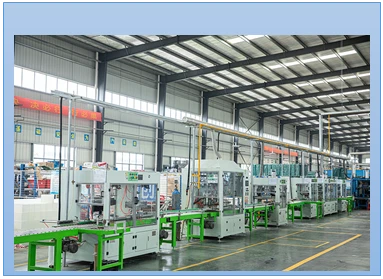

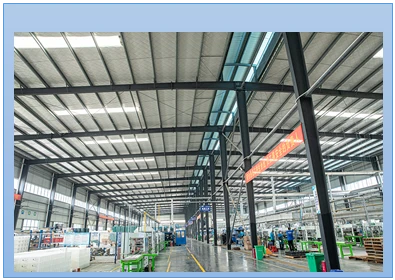

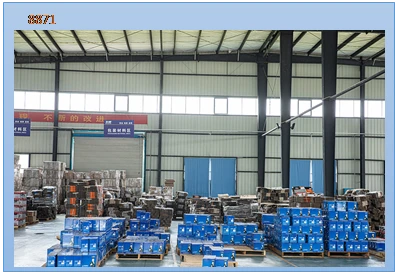

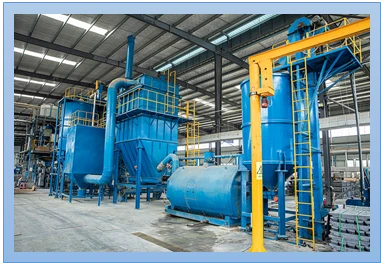

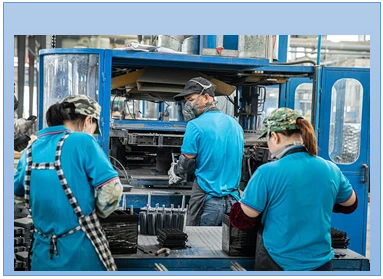

Hoobkas:

Lub 12V 33Ah GEL roj teeb no yog ua los ntawm cov ntawv tshwj xeeb diaphragm thiab colloidal lossis foamed silicon dioxide, thiab cov electrolyte yog tsau rau hauv lub roj teeb nrog silica gel. silica gel tshuab nws siv tuaj yeem txhim kho nws lub voj voog lub neej thiab kev ua haujlwm ntawm qhov txias ambient kub, ua kom muaj qhov sib sib zog nqus tawm mus los ntawm 50 feem pua. Nyob rau tib lub sijhawm, lub roj teeb tau siv cov cuab yeej sib dhos nruj, uas yog ruaj khov thiab tsis muaj pov thawj, yog li ua rau lub neej ua haujlwm ntev thiab txo qhov kev xav tau ntawm kev hloov ntau zaus. Cov qauv tsim no tuaj yeem ua kom cov lus teb tsis sib xws ntawm tag nrho cov roj teeb, yog li ua tiav cov roj teeb ua tau zoo thiab txhim khu kev qha thiab ua kom ntseeg tau lub zog ceev thiab txhim khu kev qha thaum koj xav tau.

12V 33AH Gel roj teeb nta:

Qhov 12V 33Ah GEL Roj teeb no siv cov qauv tsim hluav taws xob tshiab, uas tuaj yeem tswj tau qhov sib xws ntawm tag nrho cov roj teeb, tshem tawm cov kev pheej hmoo ntawm cov tshuaj tiv thaiv tsis sib xws thiab txhim kho kev ua haujlwm tag nrho. Cov gel sab hauv yog ua tib zoo sib sau ua ke los xyuas kom meej cov qauv nruj thiab txhim khu kev qha, uas tuaj yeem tiv thaiv kom tsis txhob yaig thiab txhim kho tag nrho cov kav ntev thiab kev pabcuam lub neej ntawm lub roj teeb. Nrog nws cov kev ua haujlwm siab tshaj tawm, nws tuaj yeem muab lub zog tawg thaum nws xav tau tshaj plaws, thiab muab kev ua haujlwm zoo tshaj plaws hauv kev kub ntxhov thiab kev thov. Tsis tas li ntawd, nws lub tshuab tso tawm tsis siv neeg tuaj yeem tso tawm cov roj ntau dhau thaum lub sijhawm ua haujlwm los tiv thaiv kev sib sau ua ke thiab ua kom muaj kev nyab xeeb thiab ruaj khov ntawm roj teeb kev ua haujlwm.

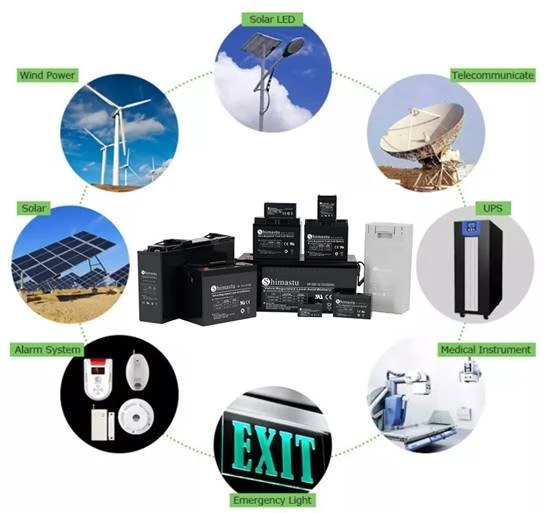

Daim ntawv thov:

Lub roj teeb tuaj yeem txhim kho koj lub zog kev paub dhau los thiab rov txheeb xyuas koj lub zog daw
