100Ah 12V Gel Cell Deep Cycle Battery

Shimastu Gel series Gel Batteries yog tsim los nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev.

Xa kev nug


PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 100 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		331 ± 2 hli (13.03 nti) 172 ± 2 hli (6.77 nti) 216 ± 2 hli (8.50 nti) 222 ± 2 hli (8.74 nti)
Qhov hnyav				Kwv yees li. 28.5 Kg ± 3% (62.83 lbs)
Standard Terminal				B3 (Bolt-thiab-txiv ntseej davhlau ya nyob twg) Bolt hom: M6
						Shimastu Gel series Gel Batteries yog tsim los nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev. Nta: 1.Tshwj xeeb polar phaj tsim, uas ua kom paub tseeb tias tus qauv tsim lub neej ntawm 15 xyoo ntawm 25 degree (77⁰F ) 2.Equalized tam sim no faib, cov khoom siv tsis yooj yim rau poob 3.High gas recombination efficiency 4.Zoo sib sib zog nqus tawm resilience kev ua tau zoo 5.No delamination phenomena nyob rau hauv lub electrolyte 6.Manufactured nrog high-porosity
ELECTRICAL SPECIFICATION
Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (10A) 5 teev tus nqi (17A) 3 teev tus nqi (25A) 1 teev tus nqi (60A)		100 Aw 85ah ua 75 aw ah 55 Ah aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104 0F) 25 degree (77 0F) 0 degree (32 0F)		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			1000A (5 sec)
Short Circuit Current			2150A
Internal Resistance			Lub roj teeb them tag nrho (25 degree, 77 0F) 6.8mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No tsawg dua 25A Voltage 14.1 ~ 14.4V ntawm 25 degree (77 0F) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77 0F) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	240.4	181.0	108.1	62.0	28.3	18.9	12.7	10.6	5.51
1.65V	218.9	173.0	103.9	59.7	27.4	18.4	12.5	10.4	5.44
1.70V	198.9	162.1	99.5	57.4	26.7	17.9	12.4	10.3	5.36
1.75V	181.7	150.8	94.7	55.0	25.8	17.5	12.2	10.1	5.30
1.80V	165.0	139.2	90.6	53.0	25.0	17.0	12.0	10.0	5.25
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	397.7	316.5	196.4	116.6	54.0	36.6	25.0	20.9	10.8
1.65V	379.4	307.0	190.8	112.8	52.6	35.6	24.6	20.6	10.7
1.70V	351.0	291.8	184.4	109.1	51.3	34.8	24.2	20.3	10.6
1.75V	326.3	275.5	177.3	105.2	50.1	34.0	23.9	20.0	10.5
1.80V	301.5	258.0	171.4	102.0	48.5	33.2	23.7	19.7	10.4

Daim ntawv thov:

Cim npe nrov: 100ah 12v gel cell sib sib zog nqus voj voog roj teeb, Tuam Tshoj 100ah 12v gel cell sib sib zog nqus voj voog roj teeb manufacturers, lwm tus neeg, Hoobkas

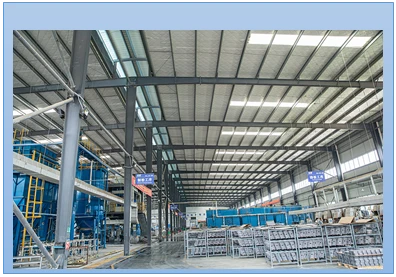

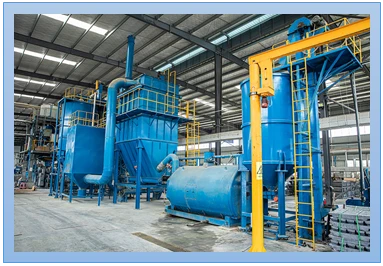

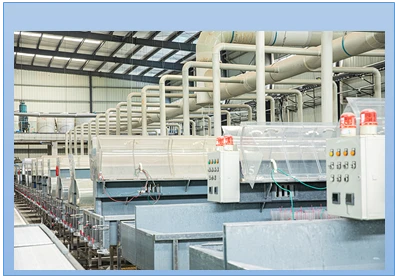

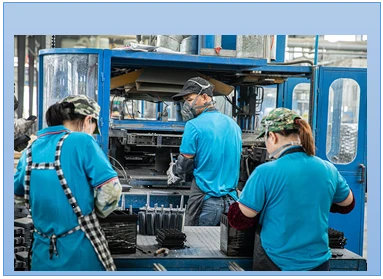

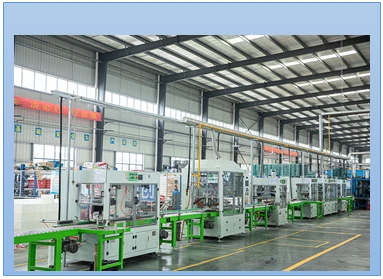

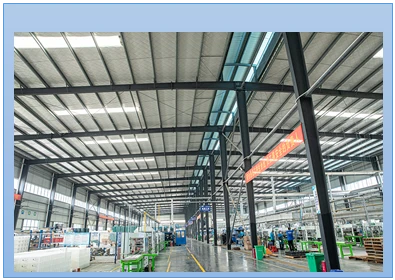

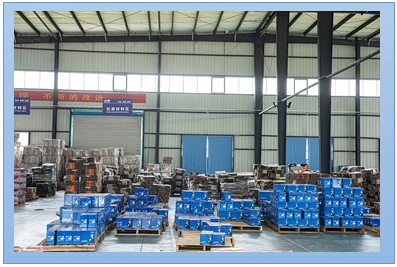

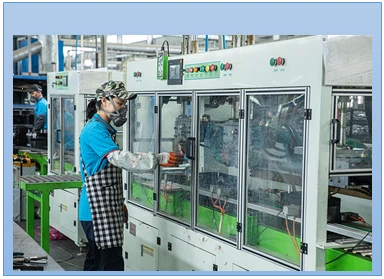

Peb lub Hoobkas:

Qhov no 100Ah 12V Gel Cell Deep Cycle Battery txais kev siv thev naus laus zis gel thiab yog nyob rau hauv nruab nrog cov hlau lead-calcium-tin alloy zoo thiab tsis zoo daim hlau, aiming ntawm muab kev ua tau zoo thiab kav ntev. Nrog lub peev xwm loj ntawm 100Ah, nws tuaj yeem ua kom lub zog txuas ntxiv thiab txhim khu kev qha rau koj cov khoom siv thiab khoom siv, txo qis sijhawm thiab ua kom muaj txiaj ntsig zoo. Nyob rau tib lub sijhawm, nws cov cuab yeej sib sib zog nqus ua rau nws tuaj yeem cuam tshuam nrog kev rov qab sib sib zog nqus tawm thiab xyuas kom muaj qhov sib xws ntawm txhua qhov tshuaj tiv thaiv, kom nws tuaj yeem ua haujlwm ntawm lub siab sab hauv nrog superior zog ceev.

Nta:

Qhov no 100Ah 12V Gel Cell Deep Cycle Battery yog tsim los nrog cov cuab yeej siv hluav taws xob qis, uas tuaj yeem khaws lub zog rau lub sijhawm ntev thiab muab lub zog xa mus ruaj khov thaum xav tau, yog li koj tuaj yeem txaus siab rau qhov yooj yim ntawm cov khoom siv hluav taws xob. Qhov thib ob, nws qhov kev ua tau zoo ua tau raws li cov qauv kev nyab xeeb thiab ib puag ncig, thiab tau dhau qhov kev xeem thiab ntawv pov thawj ntawm CE thiab ROHS. Nws cov qauv ruaj khov ua kom ntseeg tau tias nws tuaj yeem tiv taus ib puag ncig hnyav thiab muab kev ua haujlwm zoo ib yam hauv ntau yam kev siv. Nws tuaj yeem muab kev siv hluav taws xob ruaj khov thiab muaj kev nyab xeeb hauv kev siv hluav taws xob suav tsis txheeb thiab txo qhov xav tau kev hloov pauv ntau zaus.

Peb qhov kev pabcuam

Peb pab neeg muaj ntau tus kws tshaj lij R & D engineers, nrog rau daim bachelor degree lossis siab dua rau ib tus neeg. Peb muaj cov khoom siv nruj thiab tswj cov khoom lag luam, thiab tuaj yeem muab koj cov khoom siv roj teeb nrog tus nqi tsim nyog thiab nruj zoo. Thiab xyuas kom meej tias lawv tsim nyog rau cov chav kuaj kev ywj pheej

Exhibition:
