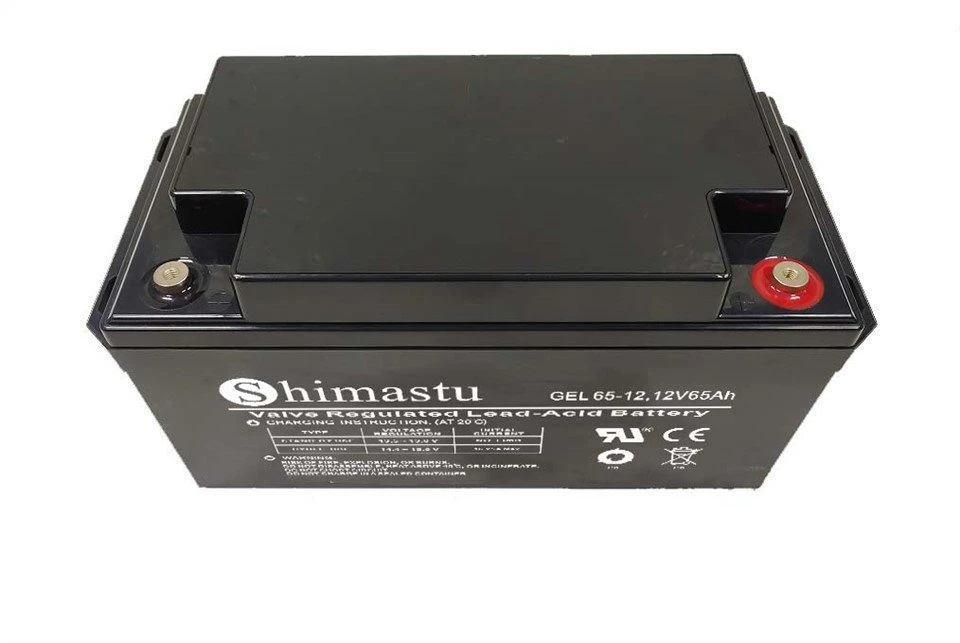

Valve Regulated Lead Acid Gel Roj teeb

Shimastu valve tswj cov kua qaub gel roj teeb yog lub valve tswj, kev saib xyuas tsis pub dawb, roj teeb kua qaub. Gel roj teeb muaj zog heev thiab ntau yam. Hom roj teeb no tsim cov pa taws tsawg thiab tuaj yeem siv rau hauv qhov chaw tsis muaj qhov cua ntau.

Xa kev nug


PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 65 aw ah
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		350 ± 1 hli (13.78 nti) 167 ± 1 hli (6.57 nti) 173 ± 1 hli (6.81 nti) 173 ± 1 hli (6.81 nti)
Qhov hnyav				Kwv yees li. 20Kg ± 3% (44.09lbs)
Standard Terminal				Bolt-thiab-ntsuab terminal Bolt hom: M6
						Shimastu Gel series Gel Batteries yog tsim los nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev. Nta: 1.Tshwj xeeb polar phaj tsim, uas ua kom paub tseeb tias tus qauv tsim lub neej ntawm 15 xyoo ntawm 25 degree (77⁰F ) 2.Equalized tam sim no faib, cov khoom siv tsis yooj yim rau poob 3.High gas recombination efficiency 4.Zoo sib sib zog nqus tawm resilience kev ua tau zoo 5.No delamination phenomena nyob rau hauv lub electrolyte 6.Manufactured nrog high-porosity
ELECTRICAL SPECIFICATION
Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (6.5A) 5 teev tus nqi (11.1A) 3 teev tus nqi (16.3A) 1 teev tus nqi (35.8A)		65 :55 :hli 48,9 ua 35,8 ua
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104 0F) 25 degree (77 0F) 0 degree (32 0F)		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			650A (5 sec)
Short Circuit Current			1500A
Internal Resistance			Lub roj teeb them tag nrho (25 degree ,77 0F) 5mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No tsawg dua 16.2A Voltage 14.1 ~ 14.4V ntawm 25 degree (77 0F) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77 0F) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	227.2	156.3	117.6	70.3	40.3	18.4	12.3	6.89	3.58
1.65V	211.2	147.6	112.5	67.6	38.8	17.8	12.0	6.80	3.54
1.70V	190.6	135.9	105.3	64.7	37.3	17.3	11.7	6.66	3.49
1.75V	170.8	124.4	98.0	61.6	35.8	16.8	11.4	6.58	3.45
1.80V	149.9	112.6	90.5	58.9	34.5	16.3	11.1	6.50	3.41
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	376.6	265.6	205.6	127.7	75.8	35.1	23.8	13.6	6.99
1.65V	354.2	255.8	199.6	124.0	73.3	34.2	23.1	13.3	6.93
1.70V	326.9	239.9	189.7	119.9	70.9	33.4	22.6	13.1	6.87
1.75V	299.4	223.5	179.1	115.3	68.4	32.5	22.1	13.0	6.79
1.80V	268.4	205.8	167.7	111.4	66.3	31.6	21.6	12.8	6.76

Cim npe nrov: Tuam Tshoj valve tswj cov kua qaub gel roj teeb, Tuam Tshoj valve tswj cov kua qaub gel roj teeb manufacturers, lwm tus neeg, Hoobkas

Lub Valve Regulated Lead Acid Gel Roj teeb no yog lub valve tswj thiab kev saib xyuas-dawb lead-acid roj teeb raws li cov roj teeb txhuas-acid, uas tau tsim los ntawm kev tshawb fawb thiab kev tsim kho thiab kev txhim kho ntau yam. Nws tsis tsuas yog muaj cov khoom siv hluav taws xob zoo heev, tab sis kuj tseem siv cov qauv tsim tsim, yog li nws tsim cov pa luam yeeb me me thaum siv, thiab tuaj yeem siv rau hauv qhov chaw cua thiab airtight. Qhov no feature kiag li tshem tawm cov to thiab volatilization ntawm electrolyte, yog li prolonging cov kev pab cuam lub neej ntawm lub roj teeb. Tsis tas li ntawd, nws muaj kev tiv thaiv dhau-tam sim no, kev tiv thaiv dhau-voltage, roj teeb rov qab kev sib txuas tiv thaiv thiab lwm yam kev teeb tsa los tiv thaiv nws los ntawm kev puas tsuaj los ntawm ntau yam xwm txheej thiab yam, muab kev nyab xeeb thiab txhim khu kev qha kev them nyiaj.

Cov yam ntxwv tseem ceeb:

Lub gel electrolyte ntawm Valve Regulated Lead Acid Gel Roj teeb yog tsim los ntawm sulfuric acid thiab silica hmoov, uas tuaj yeem ua kom muaj zog zoo heev thiab muaj zog xa mus. Nrog rau qhov kev tsim kho siab heev no, nws tuaj yeem ua kom tsis muaj qhov xau, txhawb nqa cov tshuaj tiv thaiv zoo ib yam, tiv thaiv cov kua qaub delamination thiab ua kom lub neej ntev ntawm lub roj teeb. Nyob rau tib lub sijhawm, lub roj teeb tau tsim los ntawm cov cuab yeej sib dhos nruj, uas muaj peev xwm ua kom sov tau zoo thiab tuaj yeem ua kom txias txawm tias xav tau daim ntawv thov. Qhov tseem ceeb tshaj, txhua qhov chaw ntawm nws cov ntaub ntawv yog ib puag ncig zoo thiab yooj yim rau kev rov ua dua tshiab, pab txhawb rau kev daws teeb meem hluav taws xob ruaj khov.

Daim ntawv thov:

Lub roj teeb tuaj yeem txhim kho koj lub zog daws teeb meem zoo, thiab siv dav hauv hnub ci thiab cua lub zog cia, EPS thiab UPS cov roj teeb thaub qab, teeb pom kev zoo thau
