PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 150 Aw
Dimension		Ntev Dav Thawv Qhov siab Tag nrho qhov siab		551 ± 2 hli (21.69 nti) 109 ± 2 hli (4.29 nti) 287 ± 2 hli (11.30 nti) 287 ± 2 hli (11.30 nti)
Qhov hnyav				Kwv yees li. 44.5Kg ± 3% (98.10lbs)
Standard Terminal				Bolt-thiab-ntsuab terminal Bolt hom: M6
						Shimastu FA series Pem hauv ntej Access Backup Roj teeb yog tsim tshwj xeeb rau kev lag luam kev sib txuas lus nrog 15 xyoo tsim lub neej hauv kev pab cuam ntab, Nrog cov terminals nyob rau pem hauv ntej, cov roj teeb no yooj yim rau nruab thiab khaws cia. Qhov ntev ntawm cov terminals haum rau hauv 19-inch thiab 23-inch standard power txee. Nta: 1.Designed ntab nqi lub neej ntawm 15 xyoo ntawm 25 degree (77℉). 2. Tsis tshua muaj kev tso tawm tus kheej los ntawm kev siv cov khoom siv ntshiab huv, tso cai rau lub sijhawm so ntev 3. Txais yuav tus tshiab & Zoo siab Adsorbed iav fiber ntau cais, nrog cov roj recombination efficiency ntawm 99 feem pua, tsis tas yuav tsum tau ntxiv nrog dej 4. PbCaSn alloy rau phaj daim phiaj, tsim nyog rau kev tawm hluav taws xob siab 5. Cov qauv nqaim thiab siab nrog kev ua kom sov zoo thiab muaj kev ntseeg siab
ELECTRICAL SPECIFICATION
Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			20 teev tus nqi (7.95A) 10 teev tus nqi (15A) 5 teev tus nqi (25.5A) 3 teev tus nqi (37.5A) 1 teev tus nqi (82.5A)		159 aw 150 Aw 128 Aw 113 Aw 83 aw ah
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			45 degree (117⁰F） 40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		105 feem pua 102 feem pua 100 feem pua 85 feem pua
Max. Tshem tawm tam sim no			1500A (5 sec)
Short Circuit Current			2680A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 4.0mΩ
Tsim lub neej			Ntau dua lossis sib npaug li 15 xyoo (loj) ntawm 25 degree (77⁰F )
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No tsawg dua 38A Voltage 14.1 ~ 14.4V ntawm 25 degree (77⁰F ) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77⁰F ) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	350.7	273.3	163.0	93.0	42.5	28.4	19.1	15.9	8.25
1.65V	331.5	261.2	156.5	89.5	41.1	27.6	18.8	15.7	8.18
1.70V	305.1	244.5	149.6	86.1	40.0	26.9	18.5	15.4	8.05
1.75V	279.2	227.6	143.1	82.5	38.8	26.2	18.3	15.2	7.95
1.80V	252.8	210.4	136.8	79.5	37.5	25.5	18.0	15.0	7.86
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	596.1	477.6	296.2	174.9	81.0	54.8	37.5	31.3	16.1
1.65V	574.2	463.4	287.5	169.2	78.9	53.4	36.9	30.7	16.0
1.70V	538.2	440.7	277.4	163.7	77.0	52.2	36.3	30.3	15.8
1.75V	501.7	416.1	267.8	157.8	75.1	51.1	35.9	30.0	15.7
1.80V	461.9	389.5	258.8	153.0	72.8	49.8	35.5	29.5	15.6

Cim npe nrov: Pem hauv ntej nkag mus thaub qab roj teeb 12v150ah, Tuam Tshoj pem hauv ntej nkag mus thaub qab roj teeb 12v150ah manufacturers, lwm tus neeg, Hoobkas

Kev piav qhia
Shimastu Front Access Backup Batteries 12V150AH yog tsim los rau cov kev pabcuam nrog cov kev xav tau siab. Txij li thaum nws daim phiaj yog ua los ntawm cov khoom siv tshwj xeeb ntau yam, lub xov tooj ntawm tes muaj lub neej ntev dua thiab kev ua haujlwm tawm zoo dua. Shimastu Front Access Backup Batteries 12V150AH nrog rau pem hauv ntej davhlau ya nyob twg tsim los rau kev sib txuas nrog rau sab nraud Circuit Court thiab muaj cov kev sib txuas sib txawv, lub roj teeb mounts thiab dismounts yooj yim thiab txo tus nqi ntawm kev txij nkawm. Cov khoom tsim nyog rau kev pabcuam hauv Telecom, UPS, Fais fab nroj tsuag, transformer substation, tswj system, microwave relay chaw nres tsheb, tej thaj chaw deb sensing ntaus ntawv, hnub ci thiab cua zog daim ntaub ntawv.

Nta
AGM & Gel Technology
Muaj nyob rau hauv 12 Volts & 2 Volts Series
10 Xyoo Tsim Lub Neej (25 degree)
Pem hauv ntej Access Terminal kom yooj yim installation & txij nkawm
Nplaim Retardant Thawv & Npog nrog ABS Khoom
Kev ntseeg siab & Lub neej ntev

Daim ntawv thov
Uninterruptible Power Supply (UPS)
Teeb meem kub ntxhov
Fais fab nroj tsuag
Telecom Backup Power Supplies
Lawn & Garden Tools
Gen teeb pib
Auto Control Khoom
Hnub Ci Zog
Railway Signaling Systems

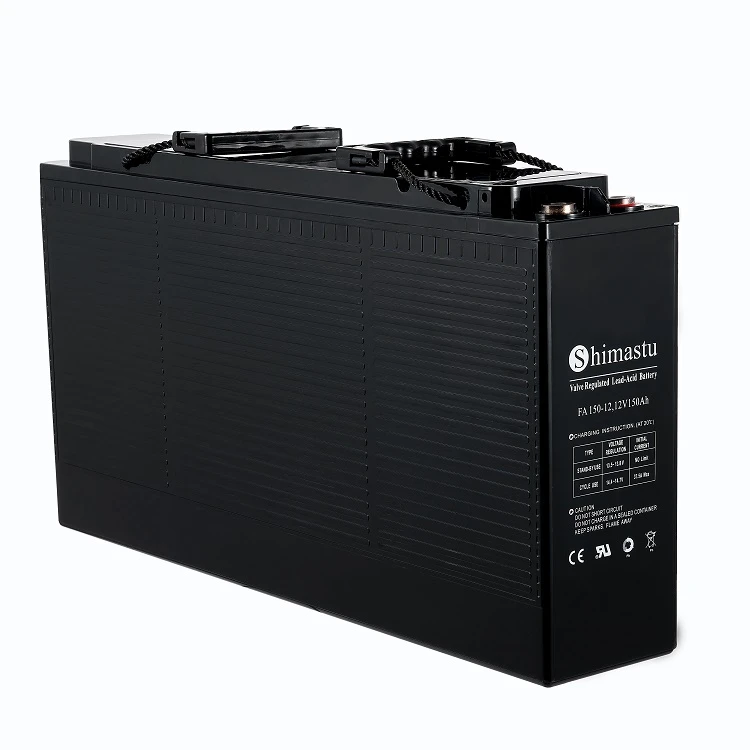

Pem hauv ntej Access Backup Roj teeb 12V150AH
