PHYSICAL SPECIFICATION |
||||||
|
Nominal voltage Nominal Peev Xwm (10HR) |
12V 150 Aw |
|
||||
|
Dimension |
Ntev Dav Thawv qhov siab Tag nrho qhov siab |
485 ± 2 hli (19.09 nti) 170 ± 2 hli (6.69 nti) 241 ± 2 hli (9.49 nti) 241 ± 2 hli (9.49 nti) |
||||
|
Qhov hnyav |
Kwv yees li. 44Kg ± 3% (97 lbs) |
|||||
|
Standard Terminal |
Bolt-thiab-ntsuab terminal Bolt hom: M8 |
|||||
|
|
Shimastu Gel series Gel Batteries yog tsim los nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev. Nta: 1.Tshwj xeeb polar phaj tsim, uas ua kom paub tseeb tias tus qauv tsim lub neej ntawm 15 xyoo ntawm 25 degree (770F ) 2.Equalized tam sim no faib, cov khoom siv tsis yooj yim rau poob 3.High gas recombination efficiency 4.Zoo sib sib zog nqus tawm resilience kev ua tau zoo 5.No delamination phenomena nyob rau hauv lub electrolyte 6.Manufactured nrog high-porosity |
|||||
|
ELECTRICAL SPECIFICATION |
||||||
|
Yam ntxwv |

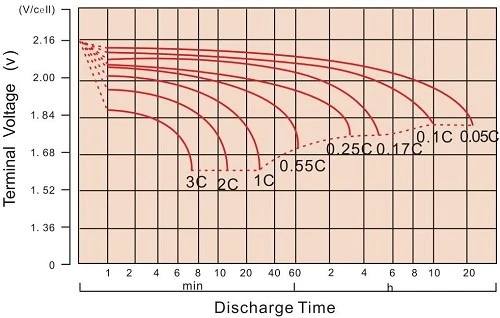

Tshem tawm curves @ 25 degree (77 degree F) |
|||||
|
Muaj peev xwm |
10 teev tus nqi (15A) 5 teev tus nqi (25.5A) 3 teev tus nqi (37.5A) 1 teev tus nqi (82.5A) |
150 Aw 128 Aw 113 Aw 82,5 ua |
|
|||
|
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias |
40 degree (1040F） 25 degree (770F） 0 degree (320F） |
102 feem pua 100 feem pua 85 feem pua |
||||
|
Max tawm tam sim no |
1500A (5 sec) |
|||||
|
Short Circuit Current |
2700A |
|||||
|
Internal Resistance |
Lub roj teeb tag nrho (25 degree, 770F) 4.3mΩ |
|||||
|
Tsis tu ncua Voltage Them nqi |
Lub voj voog |
Pib Them Tam Sim No tsawg dua 37.5A Voltage 14.1 ~ 14.4V ntawm 25 degree (770F ) Kub Coefficient -30mV / degree |
||||
|
Standby |
Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (770F ) Kub Coefficient -20mV / degree |
|||||
|
NTAUB NTAWV TAM SIM NO RATING A@25 degree |
|||||||||
|
FV/TSI |
10 MIN |
15 MIN |
30 MIN |
1 HR |
3 HR |
5 HR |
8 HR ua |
10 HR |
20 HR |
|
1.60V |
357.9 |
264.1 |
162.5 |
93.0 |
42.5 |
28.4 |
19.1 |
15.9 |
8.27 |
|
1.65V |
329.1 |
252.5 |
156.0 |
89.5 |
41.1 |
27.6 |
18.8 |
15.7 |
8.16 |
|
1.70V |
303.0 |
236.5 |
149.2 |
86.1 |
40.0 |
26.9 |
18.5 |
15.4 |
8.05 |
|
1.75V |
277.3 |
220.2 |
142.5 |
82.5 |
38.8 |
26.2 |
18.3 |
15.2 |
7.95 |
|
1.80V |
251.1 |
203.3 |
136.3 |
79.5 |
37.5 |
25.5 |
18.0 |
15.0 |
7.88 |
|
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree |
|||||||||
|
FV/TSI |
10 MIN |
15 MIN |
30 MIN |
1 HR |
3 HR |
5 HR |
8 HR ua |
10 HR |
20 HR |
|
1.60V |
592.1 |
461.8 |
295.2 |
174.9 |
81.0 |
54.8 |
37.5 |
31.3 |
16.3 |
|
1.65V |
570.3 |
447.9 |
286.5 |
169.2 |
78.9 |
53.4 |
36.9 |
30.9 |
16.1 |
|
1.70V |
534.6 |
425.8 |
276.6 |
163.7 |
77.0 |
52.2 |
36.3 |
30.4 |
15.8 |
|
1.75V |
498.2 |
402.2 |
266.8 |
157.8 |
75.1 |
51.1 |
35.9 |
30.0 |
15.8 |
|
1.80V |
458.7 |
376.6 |
257.9 |
153.0 |
72.8 |
49.8 |
35.5 |
29.5 |
15.6 |
