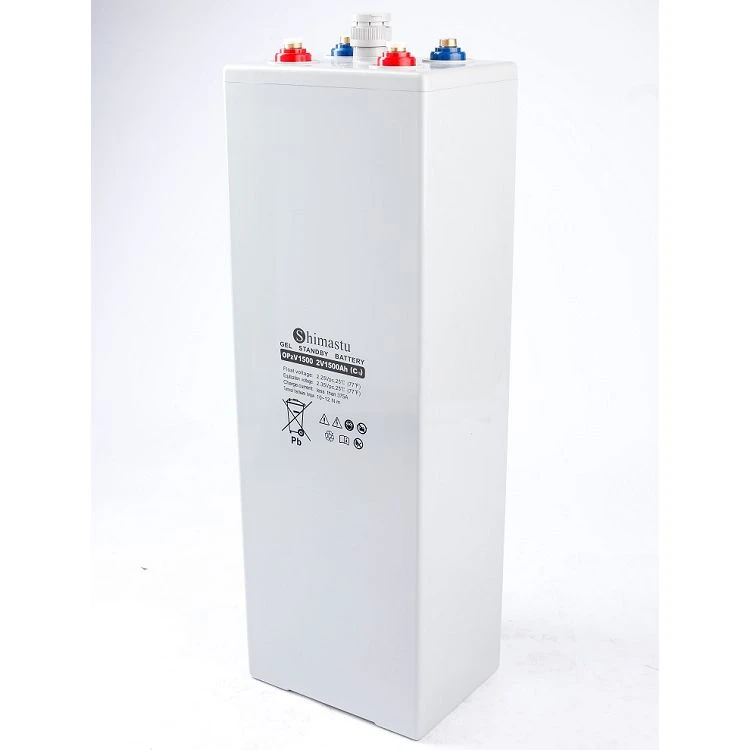

OPzV1500 Tubular GEL roj teeb |
|||||
|
PHYSICAL SPECIFICATION |
||||||
|
Nominal voltage Nominal Peev Xwm (10HR) |
2V 1500 Aw |
|
||||
|
Dimension |
Ntev Dav Thawv Qhov siab Tag nrho qhov siab |
275 ± 2 hli (10.83 nti) 210 ± 2 hli (8.27 nti) 795 ± 2 hli (31.30 nti) 827 ± 2 hli (32.56 nti) |
||||
|
Qhov hnyav |
Kwv yees li. 113.5 Kg ± 3% (250.15 lbs) |
|||||
|
Standard Terminal |
Bolt-and-nuts davhlau ya nyob twg Bolt hom: M8 |
|||||
|
|
||||||
|
ELECTRICAL SPECIFICATION |
||||||
|
Yam ntxwv |
Qhov Zoo Tshaj Plaws |
|||||
|
Muaj peev xwm |
10 teev tus nqi (150.8A t0 1.80v/cell) 5 teev tus nqi (267.0A t0 1.70v/cell) 3 teev tus nqi (390.0A t0 1.70v/cell) 1 teev tus nqi (900.0A t0 1.60v/cell) |
1 508 awm 1 335 awm 1170 Aw 9 00ah |
|
|||
|
Kev khiav hauj lwm Temp. Ntau yam |
Tawm: -40 degree ~ 55 degree Them nqi: -15 degree ~ 50 degree Cia: -15 degree ~ 40 degree |
|||||
|
Max. Tshem tawm tam sim no |
7500A (5 sec) |
|||||
|
Short Circuit Current |
12500A |
|||||
|

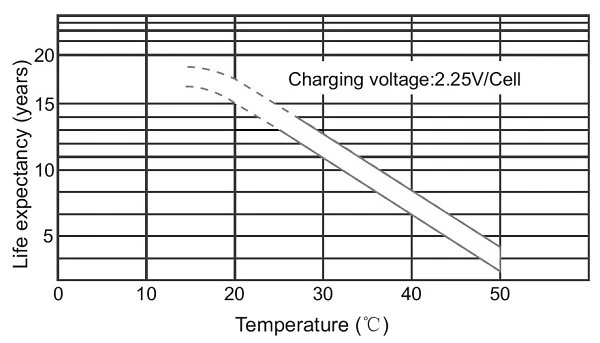

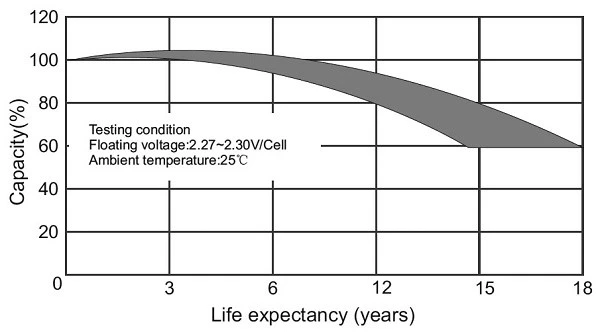

Tsim lub neej |
20 xyoo (loj) ntawm 25 degree (770F) |
|||||
|
Internal Resistance |
Lub roj teeb tag nrho (25 degree, 770F) 0.35mΩ |
|||||
|

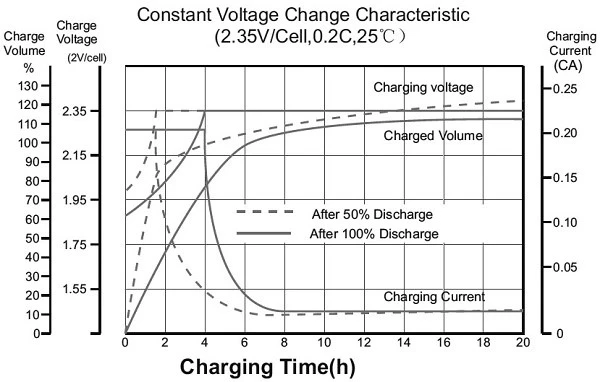

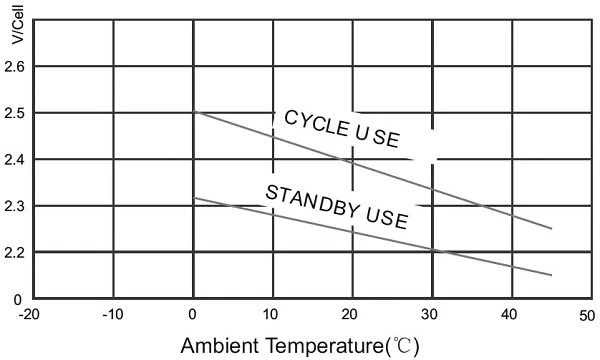

Tsis tu ncua Voltage Them nqi |
Lub voj voog |
Pib Them Nqi Tam sim no tsawg dua : Tsawg dua lossis sib npaug rau 375.0A Voltage: 2.35 ~ 2.40V ntawm 25 degree (770F ) Kub Coefficient -5mV / degree |
||||
|
Standby |
Tsis muaj kev txwv rau Initial Charging Current Voltage: 2.25V ntawm 25 degree (770F ) Kub Coefficient -3mV / degree |
|||||
|

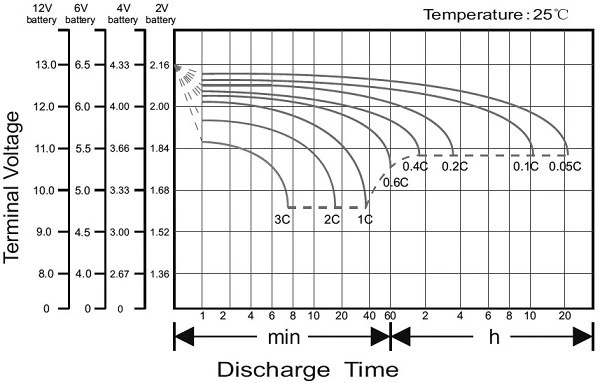

NTAUB NTAWV TAM SIM NO RATING A@25 degree |
|||||||||
|
FV/TSI |
15 feeb |
30 feeb |
1h |
2h |
3h |
4h |
5h |
8h |
10h |
|
1.60V |
1575 |
1238 |
900 |
563 |
405 |
323 |
273.8 |
194.3 |
159.0 |
|
1.65V |
1485 |
1178 |
848 |
548 |
398 |
315 |
270.8 |
192.8 |
158.3 |
|
1.70V |
1403 |
1125 |
833 |
533 |
390 |
314 |
267.0 |
190.5 |
157.5 |
|
1.75V |
1313 |
1065 |
780 |
518 |
383 |
308 |
262.5 |
186.8 |
155.3 |
|
1.80V |
1223 |
998 |
743 |
503 |
375 |
300 |
256.5 |
182.3 |
150.8 |
|
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree |
|||||||||
|
FV/TSI |
15 feeb |
30 feeb |
1h |
2h |
3h |
4h |
5h |
8h |
10h |
|
1.60V |
2715 |
2175 |
1643 |
1050 |
765 |
611 |
519.8 |
371.3 |
304.5 |
|
1.65V |
2595 |
2063 |
1545 |
1028 |
754 |
599 |
515.3 |
369.0 |
303.8 |
|
1.70V |
2453 |
1980 |
1523 |
1005 |
743 |
598 |
510.0 |
366.0 |
303.0 |
|
1.75V |
2318 |
1898 |
1455 |
983 |
731 |
589 |
503.3 |
360.0 |
300.0 |
|
1.80V |
2190 |
1823 |
1395 |
960 |
720 |
577 |
493.5 |
351.8 |
291.8 |
|
OPzV1500 Tubular GEL roj teeb |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
