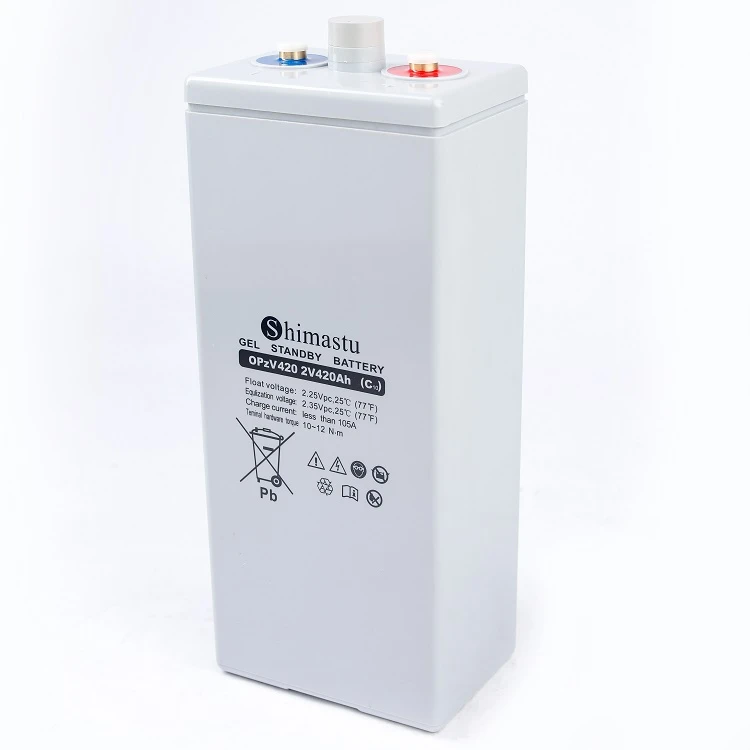

OPzV roj teeb 2V420AH

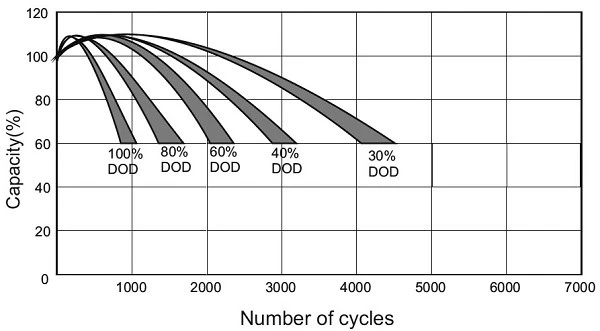

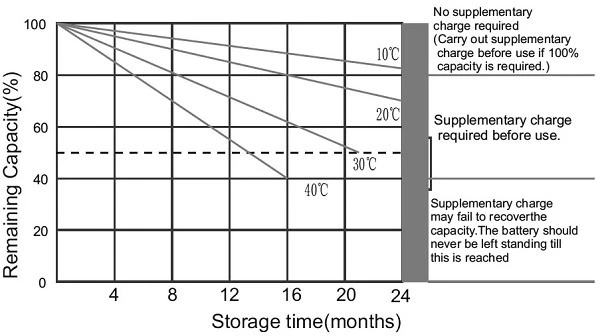

Shimastu OPzV Roj teeb 2V420AH lub xeev-ntawm-the-art raug chaw tsim khoom nrog kev nplua nuj kom ntseeg tau tias nws yog tubular OPzV gelled roj teeb txhim khu kev qha, kev nyab xeeb, roj teeb lub neej zoo thiab tus nqi. Txhua lub xov tooj yog 100 feem pua lub Hoobkas kuaj. Shimastu OPzV Roj teeb 2V2V420AH tuaj yeem siv hauv ntab lossis sib sib zog nqus voj voog (1500 x 80 feem pua) kev pabcuam thiab muaj lub neej tsim ntawm 20 xyoo ntawm 20 degree. Thiab tuaj yeem khaws cia txog 2 xyoos ntawm 20 degree yam tsis muaj kev them nyiaj tshiab.

Xa kev nug

				OPzV420 Tubular GEL roj teeb
PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				2V 4 20 aw
Dimension		Ntev Dav Thawv Qhov siab Tag nrho qhov siab		145 ± 2 hli (5.71 nti) 206 ± 2 hli (8.11 nti) 473 ± 2 hli (18.62 nti) 505 ± 2 hli (19.88 nti)
Qhov hnyav				Kwv yees li. 33.5 Kg ± 3% (73.83 lbs)
Standard Terminal				Bolt-and-nuts davhlau ya nyob twg Bolt hom: M8

ELECTRICAL SPECIFICATION
Yam ntxwv						Qhov Zoo Tshaj Plaws
Muaj peev xwm			10 teev tus nqi (42.2A t0 1.80v/cell) 5 teev tus nqi (74.8A t0 1.70v/cell) 3 teev tus nqi (109A t0 1.70v/cell) 1 teev tus nqi (252A t0 1.60v/cell)		4 22 aw 3 74 aw 3 27 aw 252 aw
Kev khiav hauj lwm Temp. Ntau yam			Tawm: -40 degree ~ 55 degree Them nqi: -15 degree ~ 50 degree Cia: -20 degree ~ 40 degree
Max. Tshem tawm tam sim no			2000A (5 sec)
Short Circuit Current			4500A

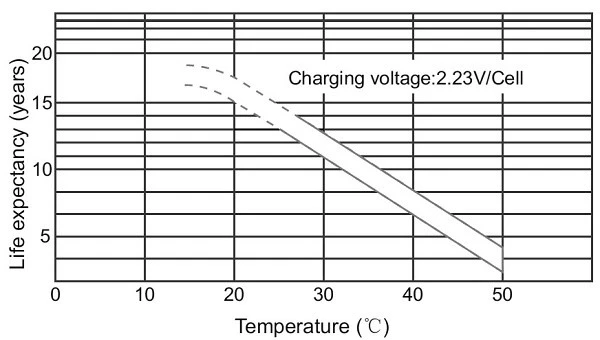

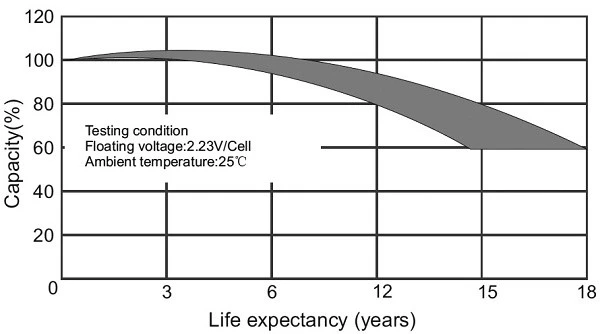

Tsim lub neej			20 xyoo (loj) ntawm 25 degree (77⁰F)
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 0.55mΩ

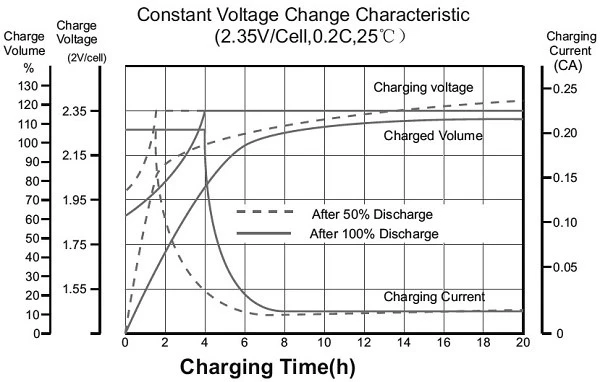

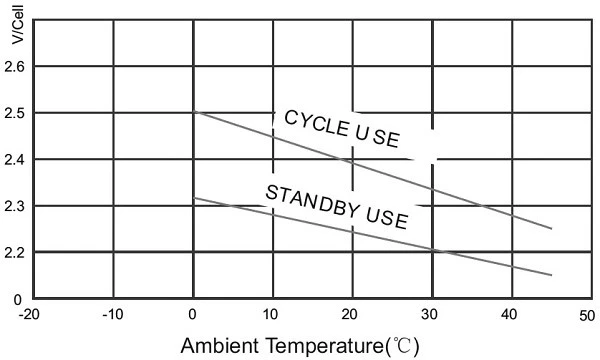

Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No Tsawg dua: Tsawg dua lossis sib npaug li 100A Voltage: 2.35 ~ 2.40V ntawm 25 degree (77⁰F ) Kub Coefficient -5mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage: 2.23V ntawm 25 degree (77⁰F ) Kub Coefficient -3mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	15 feeb	30 feeb	1h	2h	3h	4h	5h	8h	10h
1.60V	441	347	252	158	113	90	76.7	54.4	44.5
1.65V	416	330	237	153	111	89	75.8	54.0	44.3
1.70V	393	315	233	149	109	88	74.8	53.3	44.1
1.75V	368	298	218	145	107	86	73.5	52.3	43.5
1.80V	342	279	208	141	105	84	71.8	51.0	42.2
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	15 feeb	30 feeb	1h	2h	3h	4h	5h	8h	10h
1.60V	760	609	460	294	214	171	145.5	104.0	85.3
1.65V	727	578	433	288	211	168	144.3	103.3	85.1
1.70V	687	554	426	281	208	167	142.8	102.5	84.8
1.75V	649	531	407	275	205	165	140.9	100.8	84.0
1.80V	613	510	391	269	202	161	138.2	98.5	81.7

OPzV420 Tubular GEL roj teeb

Cim npe nrov: opzv roj teeb 2v420ah, Tuam Tshoj opzv roj teeb 2v420ah manufacturers, lwm tus neeg, Hoobkas

Kev piav qhia
Shimastu OPzV Roj teeb 2V420AH lub xeev-ntawm-the-art raug chaw tsim khoom nrog kev nplua nuj kom ntseeg tau tias nws yog tubular OPzV gelled roj teeb txhim khu kev qha, kev nyab xeeb, roj teeb lub neej zoo thiab tus nqi. Txhua lub xov tooj yog 100 feem pua lub Hoobkas kuaj. Shimastu OPzV Roj teeb 2V2V420AH tuaj yeem siv hauv ntab lossis sib sib zog nqus voj voog (1500 x 80 feem pua) kev pabcuam thiab muaj lub neej tsim ntawm 20 xyoo ntawm 20 degree. Thiab tuaj yeem khaws cia txog 2 xyoos ntawm 20 degree yam tsis muaj kev them nyiaj tshiab.

Nta thiab Qhov Zoo
1. Ntau tshaj 20 xyoo tsim lub neej ntawm ntab dej @ 25 degree .
2. Tsis muaj kev saib xyuas thiab tsis muaj qhov yuav tsum tau ua thaum lub sijhawm ua haujlwm tag nrho
3. Kev txuag hluav taws xob tshwj xeeb ntxiv nrog rau kev ntseeg tau zoo
4. Tubular zoo phaj nrog lub neej voj voog ntev.
5. Tsawg tus kheej tawm tus nqi thiab lub neej txee ntev.
6. High quality tubular phaj uas tsis muaj kev pheej hmoo ntawm active khoom shedding.
7. Ua haujlwm tsis tu ncua txawm tias qhov kub thiab txias ntawm -40 degree mus rau 70 degree

Daim ntawv thov
- Kev sib txuas lus
- Kev tsim hluav taws xob
- Kev ruaj ntseg systems
- Photovoltaic systems
- Tswj cov cuab yeej
- Cov khoom siv kho mob
- Cua tiam
