Intruder tswb roj teeb

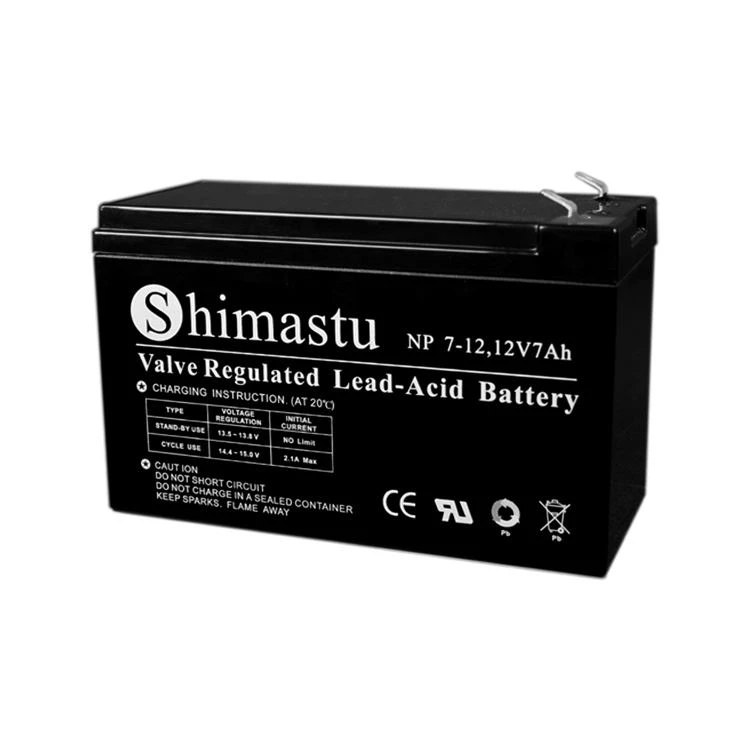

Shimastu intruder tswb lub roj teeb yog cov roj teeb tswj cov kua qaub uas muaj cov khoom zoo Absorbed iav Matt (AGM) cov khoom sib cais & cov khoom siv siab purity, tshwj xeeb los ntawm kev ua tau zoo zoo kawg nkaus thiab txhim khu kev qha kev pabcuam lub neej.

Xa kev nug


PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (20HR)				12V 7 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		151 ± 1 hli (5.94 nti) 65 ± 1 hli (2.56 nti) 95 ± 1 hli (3.74 nti) 101 ± 1 hli (3.98 nti)
Qhov hnyav				Kwv yees li. 2.0 Kg ± 3% (4.41 lbs)
Standard Terminal				Fasten Tab No.187E(F1)
						Shimastu NP series AGM VRLA Roj teeb tau tsim los ua cov roj teeb lub hom phiaj, lawv yog cov roj teeb tswj cov kua qaub uas muaj cov khoom zoo siab Absorbed iav Matt (AGM) cov khoom sib cais & cov khoom siv purity siab, tshwj xeeb los ntawm kev ua tau zoo thiab txhim khu kev qha kev pabcuam lub neej. Nta: 1.Ntawm-spillable 2.Sealed and Maintenance-free Operation 3.Qhov zoo thiab kev ntseeg siab 4. Tsawg gassing, qis tus kheej tso tawm 5. Tsawg sab hauv tsis kam 6.Long tsim lub neej mus txog 6 xyoo hauv kev pabcuam ntab ntawm 25 degree (77 0F)
ELECTRICAL SPECIFICATION

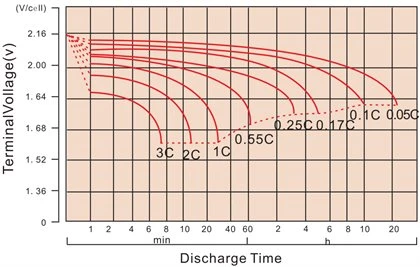

Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			20 teev tus nqi (0.35A) 10 teev tus nqi (0.658A) 5 teev tus nqi (1.19A) 3 teev tus nqi (1.75A) 1 teev tus nqi (3.85A)		7. 0Aw 6.6 aw 6. 0 Aw 5.3 aw 3.9 aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			70A (5 sec)
Short Circuit Current			340A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 25mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No tsawg dua 2.1A Voltage 14.4 ~ 15. 0V ntawm 25 degree (77⁰F ) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77⁰F ) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	26.83	18.96	13.71	7.871	4.305	1.982	1.324	0.691	0.365
1.65V	24.95	17.92	13.10	7.556	4.161	1.925	1.292	0.683	0.360
1.70V	22.50	16.49	12.27	7.222	4.004	1.866	1.257	0.676	0.354
1.75V	20.16	15.10	11.42	6.903	3.850	1.808	1.223	0.665	0.350
1.80V	17.71	13.67	10.54	6.598	3.710	1.750	1.190	0.658	0.346
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	44.47	32.21	23.96	14.30	8.091	3.786	2.552	1.358	0.720
1.65V	41.82	31.06	23.23	13.87	7.863	3.692	2.500	1.346	0.708
1.70V	38.58	29.09	22.09	13.39	7.613	3.596	2.442	1.332	0.699
1.75V	35.35	27.12	20.87	12.93	7.365	3.499	2.383	1.313	0.692
1.80V	31.70	24.98	19.53	12.48	7.139	3.398	2.325	1.298	0.684

Cim npe nrov: Tuam Tshoj intruder tswb roj teeb manufacturers, lwm tus neeg, Hoobkas

Lub Intruder Alarm Battery yog cov roj teeb uas tuaj yeem siv tau tshwj xeeb tsim los muab lub zog thaub qab rau lub tswb. Lub roj teeb ua haujlwm thaum muaj hluav taws xob tawm, ua kom lub tswb nrov tseem ua haujlwm. Qhov no tshwj xeeb tshaj yog muaj txiaj ntsig zoo vim tias cov tub sab feem ntau siv qhov zoo ntawm cov hluav taws xob hluav taws xob kom tsis txhob muaj teeb meem. Nws yog tsim los muab kev ntseeg siab zog. Cov roj teeb muaj peev xwm ua rau lub tswb nrov tsis tu ncua rau ob peb teev, nyob ntawm seb hom roj teeb siv.

Nta ntawm peb intruder tswb roj teeb

Lub Intruder Alarm Battery tuaj nyob rau hauv ntau qhov ntau thiab tsawg thiab hom. Feem ntau hom yog lead-acid, lithium-ion, thiab nickel-cadmium. Cov roj teeb txhuas-acid tau siv dav vim tias lawv pheej yig thiab muab lub zog txaus rau lub tswb nrov. Cov roj teeb lithium-ion yog qhov tseeb ntxiv rau lub tswb pob hluav taws xob, nyiam rau lawv lub teeb yuag thiab muaj peev xwm siab. Nickel-cadmium roj teeb kuj muaj thiab tsim nyog siv rau hauv qhov kub thiab txias. Lwm qhov tseem ceeb ntawm nws yog lub sijhawm them nyiaj. Cov roj teeb yuav tsum tau tsim kom them sai sai kom ntseeg tau tias lawv npaj tau siv sai li sai tau.

Daim ntawv thov

Lub Intruder Alarm Battery yog tus yam ntxwv los ntawm kev saib xyuas yooj yim. Feem ntau cov roj teeb yuav tsum tau saib xyuas me ntsis, nrog rau kev sim tsis tu ncua yog qhov yuav tsum tau ua xwb. Qhov no yooj yim-rau-saib feature kom ntseeg tau lub roj teeb thiab ncua sij hawm siv. Qhov thib ob, nws kuj yog tus nqi-zoo. Txawm hais tias tus nqi pib ntawm kev yuav lub roj teeb yuav zoo li siab, thaum kawg peb cov khoom yog ib qho tseem ceeb ntawm txhua lub tswb nrov. Nws txoj kev ntseeg siab, muaj peev xwm, thiab lub sijhawm them nqi yog cov yam ntxwv tseem ceeb los xav txog thaum yuav lub roj teeb.
