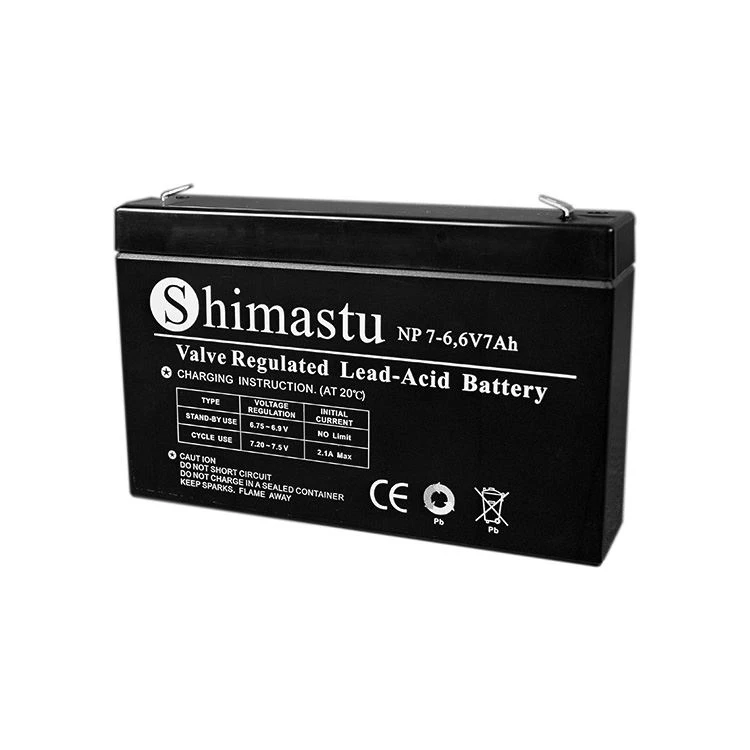

6V7Ah Lead Acid Roj teeb

Shimastu 6v 7ah lead acid roj teeb yog cov roj teeb tswj cov kua qaub uas muaj cov khoom zoo Absorbed iav Matt (AGM) cov khoom sib cais & cov ntaub ntawv siab purity, tshwj xeeb los ntawm kev ua tau zoo zoo kawg nkaus thiab txhim khu kev qha kev pabcuam lub neej.

Xa kev nug


PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (20HR)				6V 7 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		150 ± 1 hli (5.91 nti) 34 ± 1 hli (1.34 nti) 95 ± 1 hli (3.74 nti) 101 ± 1 hli (3.98 nti)
Qhov hnyav				Kwv yees li. 1.1Kg ± 3% (2.42lbs)
Standard Terminal				Fasten Tab No.187E (F1)
						Shimastu NP series AGM VRLA Roj teeb tau tsim los ua cov roj teeb uas muaj lub hom phiaj, lawv yog cov roj teeb tswj cov kua qaub uas muaj cov khoom zoo. Absorbed iav Mat (AGM) cov khoom sib cais & cov ntaub ntawv purity siab, tshwj xeeb los ntawm kev ua haujlwm zoo kawg nkaus thiab txhim khu kev qha kev pabcuam lub neej. Nta: 1.Ntawm-spillable 2.Sealed and Maintenance-free Operation 3.Qhov zoo thiab kev ntseeg siab 4. Tsawg gassing, qis tus kheej tso tawm 5. Tsawg sab hauv tsis kam 6.Long tsim lub neej mus txog 6 xyoo hauv kev pabcuam ntab ntawm 25 degree (77 0F )
ELECTRICAL SPECIFICATION
Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			20 teev tus nqi (0.35A) 10 teev tus nqi (0.658A) 5 teev tus nqi (1.19A) 3 teev tus nqi (1.75A) 1 teev tus nqi (3.85A)		7. 0Aw 6.6 aw 6. 0Aw 5.3 aw 3.9 aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			70A (5 sec)
Short Circuit Current			350A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 15mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No tsawg dua 2.1A Voltage 7.20 ~ 7.50V ntawm 25 degree (77⁰F ) Kub Coefficient -15mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 6.75 ~ 6.90V ntawm 25 degree (77⁰F ) Kub Coefficient -10mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	26.83	18.96	13.71	7.871	4.305	1.982	1.324	0.691	0.365
1.65V	24.95	17.92	13.10	7.556	4.161	1.925	1.292	0.683	0.360
1.70V	22.50	16.49	12.27	7.222	4.004	1.866	1.257	0.676	0.354
1.75V	20.16	15.10	11.42	6.903	3.850	1.808	1.223	0.665	0.350
1.80V	17.71	13.67	10.54	6.598	3.710	1.750	1.190	0.658	0.346
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	44.47	32.21	23.96	14.30	8.091	3.786	2.552	1.358	0.720
1.65V	41.82	31.06	23.23	13.87	7.863	3.692	2.500	1.346	0.708
1.70V	38.58	29.09	22.09	13.39	7.613	3.596	2.442	1.332	0.699
1.75V	35.35	27.12	20.87	12.93	7.365	3.499	2.383	1.313	0.692
1.80V	31.70	24.98	19.53	12.48	7.139	3.398	2.325	1.298	0.684

Cim npe nrov: 6v7ah lead acid roj teeb, Tuam Tshoj 6v7ah lead acid roj teeb manufacturers, lwm tus neeg, Hoobkas

Lub 6V7Ah Lead Acid Battery yog hom roj teeb uas siv dav nrog ntau yam tseem ceeb. Hom roj teeb no paub txog nws cov kav ntev, ntau yam, thiab pheej yig. Ib qho ntawm nws cov yam ntxwv tseem ceeb yog nws cov kav ntev. Nws yog tsim los tiv taus cov xwm txheej hnyav thiab muab kev ua tau zoo. Qhov no ua rau nws zoo tagnrho rau ntau yam kev siv xws li teeb pom kev zoo thaum muaj xwm txheej ceev, ceeb toom kev ruaj ntseg thiab lub zog thaub qab. Txawm hais tias qhov kub thiab txias, kev vibrations lossis shocks, lub roj teeb tuaj yeem tiv taus yam tsis poob nws cov txiaj ntsig.

Specifications

Nominal voltage: 6V

Nominal muaj peev xwm: 7Ah (20h tus nqi)

Kev them nyiaj tam sim no: 70A (5sec)

Luv Circuit Court tam sim no: 350A

Tus kheej tawm tus nqi:<1% per month

Lub voj voog lub neej ntawm 30 feem pua DOD: 1200

Kev tswj siab: kev ruaj ntseg valve ntsia

Terminal hom: F1

Kev khiav hauj lwm kub: los ntawm -20C mus ntxiv 60C

Medidas: 150 x 34 x 95 mm

Qhov hnyav: 1.1 kg

Nta

Versatility yog lwm qhov zoo tshaj plaws ntawm 6V7Ah Lead Acid Roj teeb. Nws tuaj yeem siv rau ntau yam khoom siv, los ntawm cov khoom siv me me mus rau cov tshuab ua lag luam loj. Nws compact loj tuaj yeem ntsia tau yooj yim hauv cov khoom siv sib txawv yam tsis siv ntau qhov chaw. Thiab nws tau sib xws nrog ntau lub tshuab them nyiaj, ua rau nws yooj yim rau siv hauv ntau qhov chaw.

Daim ntawv thov

Lub 6V7Ah Lead Acid Battery tau paub txog lawv cov kev tu ncua tsawg. Tsis zoo li lwm cov roj teeb uas yuav tsum tau saib xyuas thiab saib xyuas, cov roj teeb no muaj lub neej ntev thiab yuav tsum tau ua tib zoo saib xyuas kom zoo. Kev kuaj xyuas tsis tu ncua thiab qee lub sij hawm sau npe feem ntau yog txaus los xyuas kom meej qhov ua tau zoo.
