PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (20HR)				12V 12 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		151 ± 1 hli (5.94 nti) 98 ± 1 hli (3. {3}} ntiv tes) 95 ± 1 hli (3.74 nti) 100 ± 1 hli (3.94 nti)
Qhov hnyav				Kwv yees li. 3.35 Kg (7.39 lbs)
Standard Terminal				Fasten Tab No.250E(F2)
						Shimastu NP series AGM VRLA Roj teeb tau tsim los ua cov roj teeb uas muaj lub hom phiaj, lawv yog cov roj teeb tswj cov kua qaub uas muaj cov khoom zoo. Absorbed Glass Mat (AGM) cov khoom sib cais & cov ntaub ntawv siab purity raw, tshwj xeeb los ntawm kev ua tau zoo zoo thiab txhim khu kev qha standby kev pab cuam lub neej. Nta: 1.Ntawm-spillable 2.Sealed and Maintenance-free Operation 3.Qhov zoo thiab kev ntseeg siab 4. Tsawg gassing, qis tus kheej tso tawm 5. Tsawg sab hauv tsis kam 6.Long tsim lub neej mus txog 6 xyoo hauv kev pabcuam ntab ntawm 25 degree (77 0F )
ELECTRICAL SPECIFICATION
Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			20 teev tus nqi (0.6A) 10 teev tus nqi (1.08A) 5 teev tus nqi (2.04A) 3 teev tus nqi (3.0A) 1 teev tus nqi (7.2A)		12 Aw 11.4 Aw 10.2 Aw 9. 0Aw 7.2 aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104 0F) 25 degree (77 0F) 0 degree (32 0F)		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			120A (5 sec)
Short Circuit Current			560A
Internal Resistance			Lub roj teeb them tag nrho (25 degree ,77 0F) 25mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No tsawg dua 3.6A Voltage 14.4 ~ 15. 0V ntawm 25 degree (77 0F ) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77 0F) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	44.24	31.59	23.06	13.25	7.344	3.381	2.261	1.182	0.624
1.65V	41.13	29.85	22.05	12.72	7.093	3.276	2.203	1.170	0.613
1.70V	37.12	27.49	20.65	12.15	6.852	3.189	2.146	1.150	0.606
1.75V	33.26	25.16	19.22	11.62	6.600	3.092	2.094	1.135	0.600
1.80V	29.20	22.76	17.76	11.11	6.348	3.000	2.040	1.122	0.595
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	73.340	53.700	40.310	24.050	13.800	6.457	4.357	2.324	1.228
1.65V	68.970	51.710	39.110	23.340	13.400	6.282	4.262	2.303	1.209
1.70V	63.670	48.500	37.180	22.510	13.030	6.144	4.165	2.267	1.197
1.75V	58.300	45.190	35.100	21.760	12.630	5.982	4.079	2.240	1.186
1.80V	52.280	41.590	32.890	21.010	12.210	5.827	3.988	2.216	1.178

Cim npe nrov: sealed lead acid roj teeb 12v12ah, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, kev cai, lag luam wholesale, nqe, ntshuam, ua nyob rau hauv Suav teb

Sealed lead acid roj teeb 12v 12ah yog Absorbent Glass Mat (AGM) thev naus laus zis nrog lub valve tswj kev tsim, uas tuaj yeem siv rau hauv ib puag ncig thiab sab hauv tsev yam tsis muaj dej los yog txij nkawm, muab kev ua tau zoo rau ntau txhiab tus qauv.

12V 12AH roj teeb., VdS, 151x98x95 mm (LxWxH), Terminal T1/T2

Warranty: 1 xyoo

Nta

1. Tsis-spillable, tsis-gassing

2. Kev kaw thiab tu-dawb ua haujlwm

3. High durability: Top-Quality cov ntaub ntawv thiab ua tib zoo ua.

4. Tus nqi qis dua tus kheej: cov roj teeb yog ua los ntawm cov hlau lead-calcium alloy tshwj xeeb uas cog lus tias qhov tsawg kawg nkaus nws tus kheej tawm thiab ruaj ntseg cia ntev.

5. Muaj Peev Xwm Loj thiab Ua Tau Zoo: Muaj Peev Xwm Muaj Peev Xwm thiab Kev Ua Haujlwm Tsis tshua muaj kev tiv thaiv sab hauv rau kev tawm siab tam sim no

6. Charged Batteries: Feem ntau cov accumulators tau them tag nrho thaum xa khoom

Daim ntawv thov

Rau kev siv hluav taws xob los yog cov khoom siv st

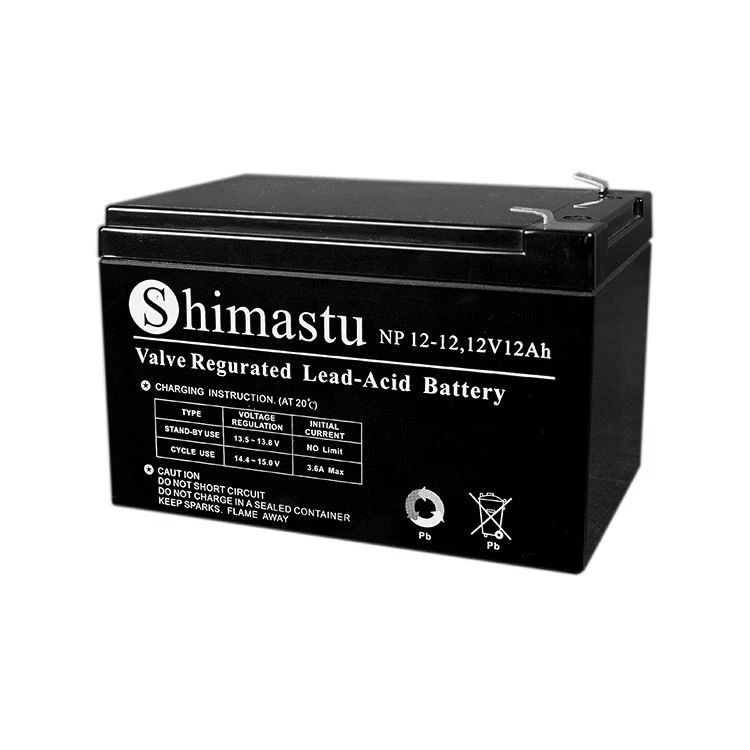

Sealed Lead Acid Roj teeb 12V12Ah
