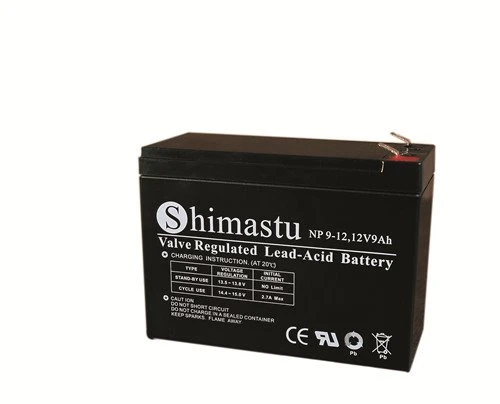

12V 9Ah Roj teeb Rechargeable

12V 9Ah Roj teeb Rechargeable

12v 9ah roj teeb rechargeable yog zoo tagnrho rau lub teeb thaum muaj xwm ceev, backup systems, tswb systems, video soj ntsuam, hluav taws xob tiv thaiv systems, lub tsev automation systems, tsis siv neeg qhov rooj thiab rooj vag, backup roj teeb rau ups, nyob rau hauv kev lag luam, rau cov txheej txheem txuas ntxiv, soj ntsuam thiab video tswj thiab nyob rau hauv ntau yam sectors ntawm electronics. Faston T02 kev sib txuas. Durable, siv koj cov khoom ntev dua.

Xa kev nug

image006.jpg image004

PHYSICAL SPECIFICATION

Nominal voltage
Nominal Peev Xwm (20HR)

12V

9 Ah aw


Dimension

Ntev
Dav
Thawv qhov siab
Tag nrho qhov siab

151 ± 1 hli (5.94 nti)

65 ± 1 hli (2.56 nti)

95 ± 1 hli (3.74 nti)

100 ± 1 hli (3.94 nti)

Qhov hnyav

Kwv yees li. 2.55 Kg ± 3% (5.62 lbs)

Standard Terminal

Fasten Tab No.250E(F2)

image010image012


Shimastu NP series AGM VRLA Roj teeb tau tsim los ua cov roj teeb uas muaj lub hom phiaj, lawv yog cov roj teeb tswj cov kua qaub uas muaj cov khoom zoo. Absorbed iav Mat (AGM) cov khoom sib cais & cov ntaub ntawv purity siab, tshwj xeeb los ntawm kev ua haujlwm zoo kawg nkaus thiab txhim khu kev qha kev pabcuam lub neej.
Nta:
1.Ntawm-spillable
2.Sealed and Maintenance-free Operation
3.Qhov zoo thiab kev ntseeg siab
4. Tsawg gassing, qis tus kheej tso tawm
5. Tsawg sab hauv tsis kam
6.Long tsim lub neej mus txog 6 xyoo hauv kev pabcuam ntab ntawm 25 degree
(77 0F )­

ELECTRICAL SPECIFICATION

Yam ntxwv

Tshem tawm curves @ 25 degree (77 degree F)

Muaj peev xwm

2 0 teev tus nqi (0.45A)

10 teev tus nqi (0.846A)

5 teev tus nqi (1.53A)

3 teev tus nqi (2.25A)

1 teev tus nqi (4.95A)

9 Ah aw

8.5ah ua

7.7 aw

6.8 aw

5 Aw


Muaj peev xwm cuam tshuam
los ntawm qhov kub thiab txias

40 degree (1040F）

25 degree (770F）

0 degree (320F）

102 feem pua

100 feem pua

85 feem pua

Max tawm tam sim no

90A (5 sec)

Short Circuit Current

450A

Internal Resistance

Lub roj teeb tag nrho (25 degree, 770F) 20mΩ

Tsis tu ncua Voltage
Them nqi

Lub voj voog

Pib Them Tam Sim No tsawg dua 2.7A

Voltage 14.4 ~ 15. 0V ntawm 25 degree (770F )

Kub Coefficient -30mV / degree

Standby

Tsis muaj kev txwv rau Initial Charging Current

Voltage 13.5 ~ 13.8V ntawm 25 degree (770F )

Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree

FV/TSI

5 MIN

10 MIN

15 MIN

30 MIN

1 HR

3 HR

5 HR

10 HR

20 HR

1.60V

35.35

24.74

17.71

10.17

5.535

2.548

1.702

0.889

0.470

1.65V

32.87

23.38

16.93

9.76458

5.349

2.475

1.661

0.878

0.462

1.70V

29.66

21.52

15.86

9.333435

5.148

2.399

1.616

0.869

0.455

1.75V

26.57

19.70

14.75

8.92038

4.950

2.325

1.573

0.855

0.450

1.80V

23.33

17.83

13.63

8.52642

4.770

2.250

1.530

0.846

0.445

Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree

FV/TSI

5 MIN

10 MIN

15 MIN

30 MIN

1 HR

3 HR

5 HR

10 HR

20 HR

1.60V

58.59

42.05

30.95

18.47

10.40

4.868

3.282

1.748

0.924

1.65V

55.12

40.50

30.04

17.92

10.11

4.746

3.214

1.728

0.912

1.70V

50.86

37.97

28.55

17.31

9.791

4.622

3.137

1.714

0.897

1.75V

46.58

35.39

26.95

16.70

9.470

4.500

3.065

1.687

0.890

1.80V

41.78

32.59

25.25

16.13

9.180

4.369

2.991

1.672

0.879

Cim npe nrov: 12v 9ah roj teeb rechargeable, Tuam Tshoj 12v 9ah roj teeb rechargeable manufacturers, lwm tus neeg, Hoobkas

Lub 12V 9Ah Roj teeb Rechargeable yog qhov tseem ceeb ntawm ntau cov khoom siv thiab tshuab. Nws yog lub roj teeb uas muaj cov kua qaub uas muaj peev xwm ntawm 9Ah. Lub roj teeb no tuaj yeem rov them ntau zaus thiab feem ntau siv rau hauv lub tshuab hluav taws xob thaub qab, ceeb toom kev ruaj ntseg thiab teeb pom kev kub ceev. Ib qho ntawm nws cov txiaj ntsig tseem ceeb yog nws lub neej ua haujlwm ntev. Cov roj teeb tuaj yeem siv tau ntau xyoo yog tias siv thiab khaws cia kom zoo. Ntxiv mus, lub roj teeb muaj kev ntseeg siab heev thiab tuaj yeem ua haujlwm zoo hauv ntau qhov chaw thiab qhov kub thiab txias. Lwm qhov tseem ceeb ntawm nws yog nws lub zog siab ceev. Cov roj teeb tuaj yeem khaws ntau lub zog hauv qhov chaw me me thiab compact. Qhov no ua rau lub roj teeb no zoo tagnrho rau cov khoom siv portable uas xav tau lub zog ntau.


Shimastu NP9-12, 12v 9ah roj teeb rechargeable

Hom Lub Npe: Shimastu
Lub zog: 12v
ua :9ah

Qhov hnyav: 2.55 kg

Dimensions: 151mm Ntev X 65mm Dav X 95mm High (101mm Tshaj Terminals).

Terminals: F2 (T02)

Roj teeb hom: Standby roj teeb

Tsim lub neej: 6 Xyoo tsim lub neej ntawm 25 degree (77 0F ) thaum siv hauv cov ntawv thov tos


Nta

Siv 12V 9Ah Roj teeb Rechargeable yog qhov zoo heev. Nws muaj tus nqi qis tus kheej tawm, uas txhais tau hais tias nws khaws nws cov nqi rau lub sijhawm ntev yam tsis muaj kev saib xyuas ntau zaus lossis rov them dua. Ntxiv rau, lub roj teeb tsub nqi zoo, txhais tau tias nws tuaj yeem them sai sai yam tsis poob ntau lub zog. Ib qho ntawm peb lub zog tseem ceeb tshaj plaws yog nws cov versatility. Lub roj teeb tuaj yeem siv tau rau ntau yam kev siv, los ntawm cov khoom siv hluav taws xob yooj yim mus rau cov khoom siv hauv kev lag luam. Nws tuaj yeem yooj yim ua ke rau hauv ntau lub tshuab thiab nws qhov kev ua tau zoo tuaj yeem ua raws li cov kev xav tau tshwj xeeb.
