PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (20HR)				12V 20 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		181 ± 1 hli (7.13 nti) 76 ± 1 hli (2.99 nti) 166 ± 1 hli (6.54 nti) 166 ± 1 hli (6.54 nti)
Qhov hnyav				Kwv yees li. 6Kg ± 3% (13.2lbs)
Standard Terminal				Bolt & ceev terminal Bolt Hom: M5
						Shimastu NPC series Deep Cycle Batteries yog cov roj teeb sib sib zog nqus uas tsim los ua kom tsis tu ncua kev tso tawm ntau ntawm nws lub peev xwm, nws cov roj teeb feem ntau siv rau hnub ci off-daim phiaj thiab hybrid zog cia, nrog rau ntau lwm yam kev siv. Nta: 1.Wide tiv thaiv kev ua haujlwm kub ntawm -20 degree ( -4℉) txog 50 degree (122℉). 2. Txhua hli tus kheej tawm tus nqi qis dua 2 feem pua ntawm 25 degree (77℉). 3. Lub roj teeb muaj kev ua haujlwm zoo tshaj plaws hauv kev txij nkawm-dawb, tom qab 12 lub hlis, nws qhov chaw cia tseem tuaj yeem ncav cuag 65 feem pua, uas yog cov kev daws teeb meem zoo rau lub hnub ci, cua tshuab hluav taws xob thiab lwm lub tshuab hluav taws xob txuas ntxiv. 4.Tshwj xeeb polar phaj tsim, uas ua kom lub neej ntev mus txog 8 xyoo hauv kev pabcuam ntab.
ELECTRICAL SPECIFICATION
Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			2 0 teev tus nqi (1.0A) 10 teev tus nqi (1.87A) 5 teev tus nqi (3.4A) 3 teev tus nqi (5A) 1 teev tus nqi (10.58A)		20 Aw 19 Aw 17 Aw 15 Aw 10.6 Aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			200A (5 sec)
Short Circuit Current			800A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 13mΩ
Tsim lub neej			Ntau dua lossis sib npaug rau 650 Cycles @ 50 feem pua DOD (25 degree)
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No tsawg dua 6A Voltage 7.20 ~ 7.50V ntawm 25 degree (77⁰F ) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 6.75 ~ 6.90V ntawm 25 degree (77⁰F ) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	76.03	53.74	38.84	22.31	12.24	5.640	3.772	1.973	1.040
1.65V	70.71	50.78	37.14	21.42	11.80	5.466	3.674	1.947	1.024
1.70V	63.79	46.75	34.78	20.47	11.41	5.318	3.579	1.919	1.012
1.75V	57.16	42.79	32.36	19.57	11.00	5.159	3.489	1.893	1.000
1.80V	50.19	38.73	29.89	18.70	10.58	4.999	3.398	1.870	0.990
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	5 MIN	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	10 HR	20 HR
1.60V	126.0	91.34	67.91	40.53	23.01	10.79	7.287	3.884	2.054
1.65V	118.6	87.98	65.89	39.31	22.34	10.50	7.124	3.842	2.025
1.70V	109.4	82.48	62.64	37.95	21.75	10.26	6.963	3.790	2.003
1.75V	100.2	76.86	59.13	36.65	21.09	10.00	6.811	3.744	1.981
1.80V	89.86	70.79	55.37	35.38	20.40	9.729	6.659	3.701	1.964

Cim npe nrov: 12v 20ah agm sib sib zog nqus voj voog roj teeb, Tuam Tshoj 12v 20ah agm sib sib zog nqus voj voog roj teeb manufacturers, lwm tus neeg, Hoobkas

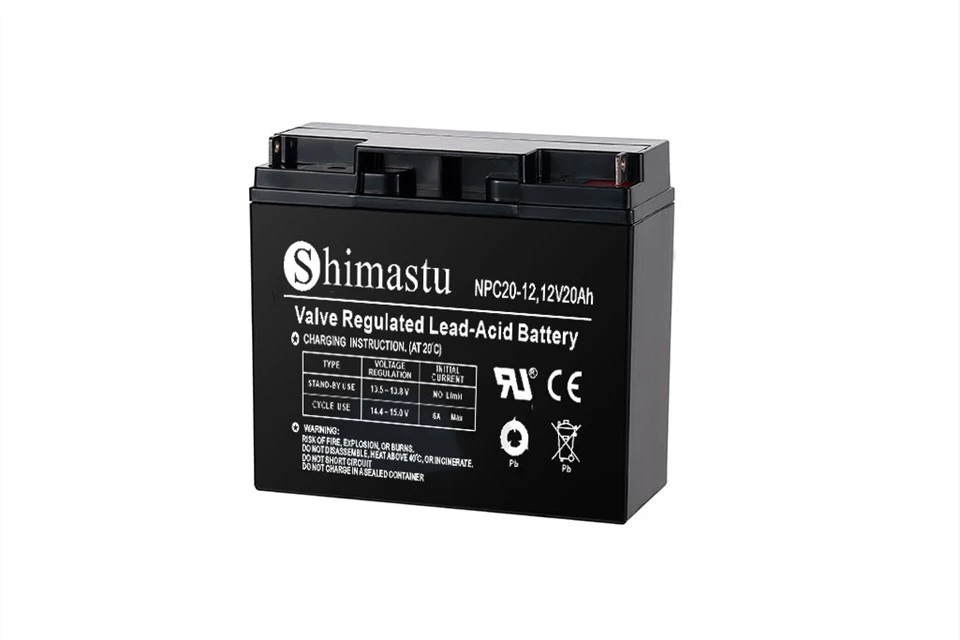

Qhov no 12v 20ah agm sib sib zog nqus voj voog roj teeb tuaj yeem ua tau raws li koj lub zog xav tau zoo. Nws yog ib qho kev kho-dawb kaw-acid roj teeb nrog cov yam ntxwv ntawm tus kheej tawm me me thiab kev ua haujlwm zoo sib sib zog nqus. Hom roj teeb lub voj voog sib sib zog nqus no tshwj xeeb tsim los muab lub zog zoo ib yam thiab ruaj khov rau lub sijhawm ntev, uas tsim nyog rau cov ntawv thov uas xav tau kev siv mus ntev. Nyob rau tib lub sijhawm, lub roj teeb muaj qhov kub thiab txias pib, uas tuaj yeem siv rau hauv qhov kub thiab txias ntawm -20 C-60 C, thiab tsim nyog rau thaj chaw roob sab qaum teb. Nws tuaj yeem tiv taus ntau lub sijhawm them thiab tawm mus yam tsis muaj kev cuam tshuam rau kev ua haujlwm, thiab tsim nyog rau hnub ci zog cia, nkoj, RVs thiab tsheb fais fab.

Nta

Lub 12v 20Hah agm lub voj voog uas tau txais kev tsim kho lub voj voog uas zoo nkauj, muaj ntau lub sijhawm tuab, ua rau nws muaj lub neej muaj kev pab ntau dua. Qhov thib ob, nws yog me me thiab compact nyob rau hauv tsos, muaj cov qauv ruaj khov, tuaj yeem muab kev tiv thaiv kev vibration, muab kev ua haujlwm zoo seismic, thiab tuaj yeem siv nyab xeeb hauv ntau qhov chaw hnyav. Tsis tas li ntawd, lub roj teeb muaj qhov muaj peev xwm sib piv, uas tuaj yeem ua kom lub zog ruaj khov thiab zoo ib yam thiab tuaj yeem khiav tsis cuam tshuam rau ntau yam kev siv.

Daim ntawv thov

Nws daim ntawv thov ntau yog dav dua li cov roj teeb txhuas-acid zoo tib yam, thiab nws yog qhov tsim nyog rau lub hnub ci zog, lub zog hluav taws xob, lub zog txuas ntxiv thiab lwm yam, thiab siv dav hauv cov tsheb ua si, cov khoom siv hluav taws xob hauv hiav txwv thiab cov khoom siv hluav taws xob standby.
