PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 100 Aw
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		331 ± 2 hli (13.03 nti) 172 ± 2 hli (6.77 nti) 216 ± 2 hli (8.50 nti) 222 ± 2 hli (8.74 nti)
Qhov hnyav				Kwv yees li. 31 Kg ± 3% (68.32 lbs)
Standard Terminal				B3 (Bolt-thiab-txiv ntseej davhlau ya nyob twg) Bolt hom: M6
						Shimastu NPC series Deep Cycle Batteries yog cov roj teeb sib sib zog nqus uas tsim los ua kom tsis tu ncua kev tso tawm siv ntau ntawm nws lub peev xwm, nws cov roj teeb feem ntau siv rau hnub ci off-grid thiab hybrid zog cia, nrog rau ntau yam kev siv. Nta: 1.Wide tiv thaiv kev ua haujlwm kub ntawm -20 degree ( -4℉) txog 50 degree (122℉). 2. Txhua hli tus kheej tawm tus nqi qis dua 2 feem pua ntawm 25 degree (77℉). 3. Lub roj teeb muaj kev ua haujlwm zoo tshaj plaws hauv kev txij nkawm-dawb, tom qab 12 lub hlis, nws qhov chaw cia tseem tuaj yeem ncav cuag 65 feem pua, uas yog cov kev daws teeb meem zoo rau lub hnub ci, cua tshuab hluav taws xob thiab lwm lub tshuab hluav taws xob txuas ntxiv. 4.Tshwj xeeb polar phaj tsim, uas ua kom lub neej ntev mus txog 12 xyoo hauv kev pabcuam ntab.
ELECTRICAL SPECIFICATION
Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (10A) 5 teev tus nqi (17A) 3 teev tus nqi (25A) 1 teev tus nqi (55A)		100 Aw 85ah ua 75 aw ah 55 Ah aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			1000A (5 sec)
Short Circuit Current			2150A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 6.8mΩ
Tsim lub neej			Ntau dua lossis sib npaug rau 700 Cycles @ 50 feem pua DOD (25 degree)
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No tsawg dua 25A Voltage 14.1 ~ 14.4V ntawm 25 degree (77⁰F ) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77⁰F ) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	240.4	181.0	108.1	62.0	28.3	18.9	12.7	10.6	5.51
1.65V	218.9	173.0	103.9	59.7	27.4	18.4	12.5	10.4	5.44
1.70V	198.9	162.1	99.5	57.4	26.7	17.9	12.4	10.3	5.36
1.75V	181.7	150.8	94.7	55.0	25.8	17.5	12.2	10.1	5.30
1.80V	165.0	139.2	90.6	53.0	25.0	17.0	12.0	10.0	5.25
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	397.7	316.5	196.4	116.6	54.0	36.6	25.0	20.9	10.8
1.65V	379.4	307.0	190.8	112.8	52.6	35.6	24.6	20.6	10.7
1.70V	351.0	291.8	184.4	109.1	51.3	34.8	24.2	20.3	10.6
1.75V	326.3	275.5	177.3	105.2	50.1	34.0	23.9	20.0	10.5
1.80V	301.5	258.0	171.4	102.0	48.5	33.2	23.7	19.7	10.4

Cim npe nrov: 12v100ah vrla sib sib zog nqus voj voog roj teeb, Tuam Tshoj 12v100ah vrla sib sib zog nqus voj voog roj teeb manufacturers, lwm tus neeg, Hoobkas

Lub 12V100Ah VRLA Deep Cycle Battery yog lub zog ntau yam thiab muaj txiaj ntsig zoo khaws cov tshuaj uas nrov hauv ntau qhov kev lag luam. Nrog nws lub peev xwm 12V100Ah, nws muaj ntau yam tshwj xeeb uas ua rau nws muaj peev xwm txhim khu kev qha rau ntau yam kev siv. Ib qho ntawm nws cov yam ntxwv zoo tshaj plaws yog nws cov qauv tsim tsis muaj kev saib xyuas. Tsis zoo li cov roj teeb li niaj zaus, hom roj teeb no tsis tas yuav tsum tau kuaj xyuas ib ntus lossis ntxiv cov dej ntau ntxiv. Cov yam ntxwv no tsis tsuas yog txuag lub sijhawm thiab kev siv zog, tab sis kuj ua kom muaj kev lag luam tsis muaj teeb meem, ua rau nws zoo tagnrho rau cov ntawv thov uas xav tau lub zog ruaj khov. Tsis tas li ntawd, peb sawv tawm rau lawv lub neej voj voog zoo heev. Tsim los rau kev siv sib sib zog nqus tawm, nws tuaj yeem tiv taus cov nqi rov qab thiab kev tawm mus tsis muaj peev xwm poob.

12V 100AH VRLA sib sib zog nqus voj voog roj teeb nta hauv qab no
• 12V100Ah VRLA Deep Cycle Battery muaj lub valve-tswj tsim los tiv thaiv electrolyte to. Cov qauv kaw ntawm lub roj teeb ua kom ntseeg tau tias tsis muaj electrolyte dawb, ua rau nws muaj kev nyab xeeb rau kev siv ntau yam kev taw qhia thiab ib puag ncig. Qhov no feature ntxiv rau nws versatility, tso cai rau nws mus siv nyob rau hauv ob qho tib si sab hauv tsev thiab sab nraum zoov daim ntaub ntawv nrog tsawg tsawg. Tsis tas li ntawd, peb muaj kev tiv thaiv zoo rau kev co thiab kev poob siab. Qhov no ua rau nws haum rau tsheb, nkoj thiab lwm yam kev siv mobile uas qhov kev txav mus tas li thiab cov av ntxhib tuaj yeem sib tw roj teeb ua haujlwm. Lub zog tsim kom ntseeg tau tias lub roj teeb tseem txhim khu kev qha txawm nyob rau hauv kev xav tau.

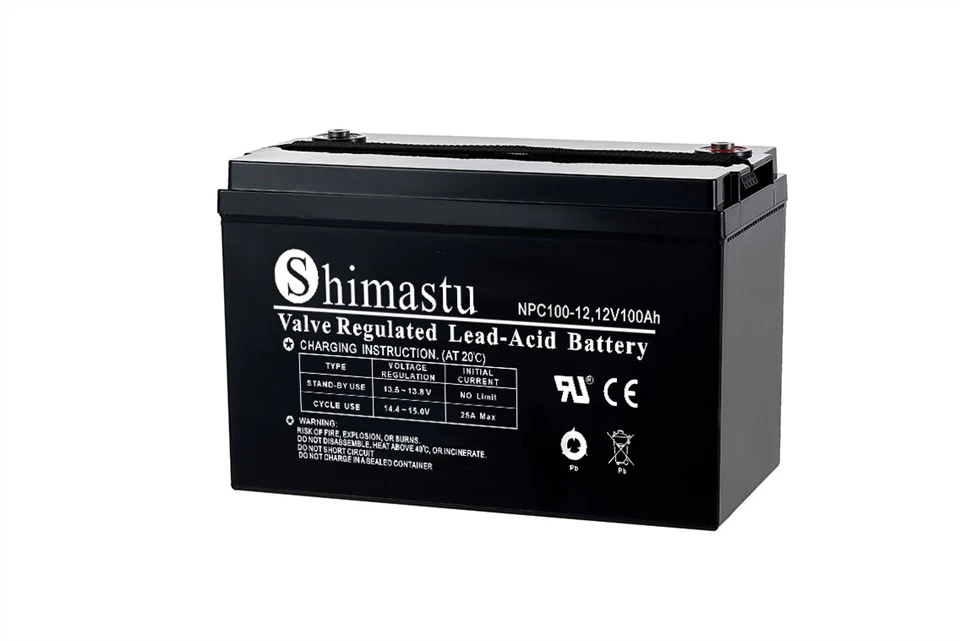

12V 100Ah VRLA Deep Cycle Battery
