High-Rate Discharge Batteries

Shimastu NPH series High-Rate Discharge Batteries yog tsim rau cov hluav taws xob tawm hluav taws xob los ntawm kev siv daim phiaj muaj zog thiab tshwj xeeb tsim cov khoom siv hluav taws xob, nws muaj 20 feem pua tsawg zog ntau dua li cov qauv, tsim nyog rau UPS / EPS, cov chaw zov me nyuam qhov chaw siab tam sim no.

Xa kev nug

Specification:

Qauv	Nominal voltage	Muaj peev xwm		Qhov ntev						Ht.Over Terminal		Nyhav Approx (kg)		Terminals
	Nominal voltage	Muaj peev xwm		L		W		H		Ht.Over Terminal		Nyhav Approx (kg)
	(v)	(AH)	15 min wattage @1.67vpc	hauv	mm	hauv	mm	hauv	mm	hauv	mm	kg	lb
NPH5.5-6	6	5.5	22	2.76	70	1.85	47	3.94	100	4.13	105	0.82	1.81	T01(T02)
NPH12-6	6	12	54	5.94	151	1.97	50	3.7	94	3.9	99	1.9	4.19	T01(T02)
NPH3.2-12	12	3.2	13.5	5.31	135	2.64	67	2.4	61	2.6	66	1.35	2.98	T01(T02)
NPH5.5-12	12	5.5	22	3.54	90	2.76	70	3.98	101	4.17	106	1.55	3.42	T01(T02)
NPH8-12	12	8	32	5.94	151	2.56	65	3.74	95	3.94	100	2.3	5.07	T01(T02)

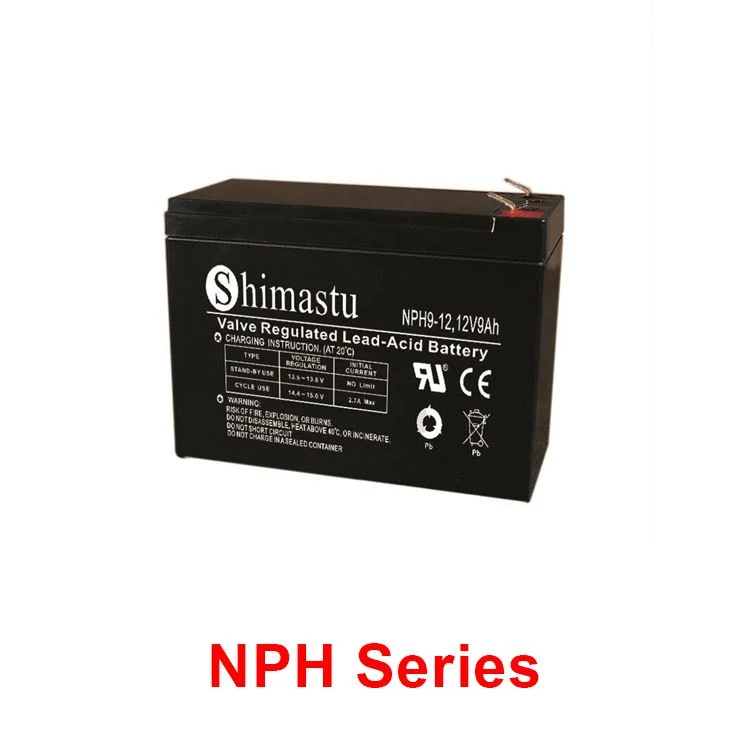

NPH9-12	12	9	36	5.94	151	2.56	65	3.74	95	3.94	100	2.62	5.77	T01(T02)
NPH12-12	12	12	54	5.94	151	3.86	98	3.74	95	3.94	100	3.6	7.93	T01(T02)

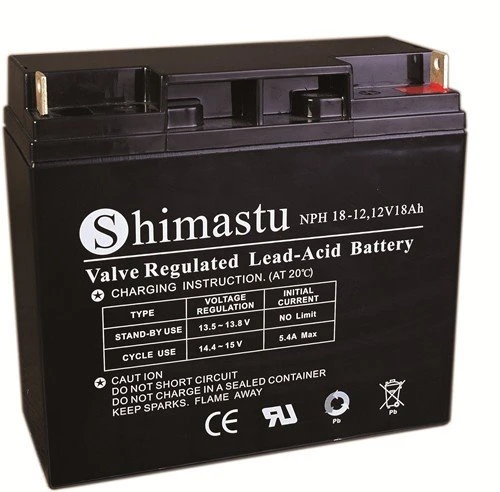

NPH18-12	12	18	78	7.13	181	2.99	76	6.54	166	6.54	166	6.1	13.44	Q02(B02)

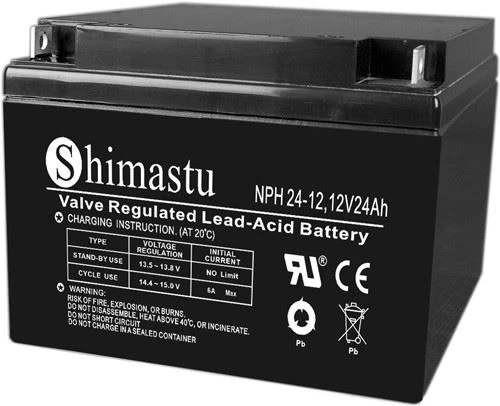

NPH24-12	12	24	106	6.89	175	6.5	165	4.96	126	4.96	126	8.7	19.17	Q04(B03)
NPH33-12	12	33	150	7.72	196	5.16	131	6.42	163	6.61	168	11.2	24.68	B04

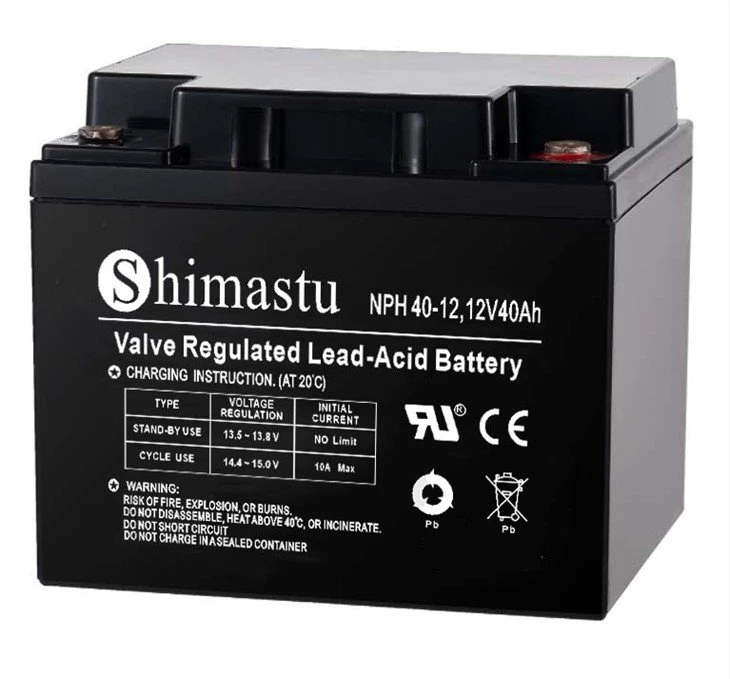

NPH40-12	12	40	170	7.8	198	6.54	166	6.69	170	6.69	170	14.2	31.3	B04
NPH55-12	12	55	200	9.02	229	5.43	138	8.19	208	8.39	213	18	39.67	B04
NPH65-12	12	65	260	13.78	350	6.57	167	6.81	173	6.81	173	22.5	49.59	B04
NPH75-12	12	75	320	10.2	259	6.65	169	8.35	212	8.54	217	25.2	55.54	B04
NPH90-12	12	90	400	12.09	307	6.65	169	8.27	210	8.46	215	28.2	62.15	B04
NPH100-12	12	100	420	13.03	331	6.77	172	8.5	216	8.74	222	31.5	69.43	B04
NPH134-12	12	134	500	13.39	340	6.81	173	11.02	280	11.3	287	45	99.18	B01
NPH150-12	12	150	560	19.09	485	6.69	170	9.49	241	9.49	241	46.5	102.49	B01

Cim npe nrov: Tuam Tshoj high-rate paug roj teeb manufacturers, lwm tus neeg, Hoobkas

Cov Roj Teeb Hluav Taws Xob Hluav Taws Xob no yog tsim los ntawm cov kab sib chaws thiab cov khoom siv tshwj xeeb tsim, uas tuaj yeem muab 20 feem pua tsawg zog ntau dua li cov qauv. Lub roj teeb muaj kev ua tau zoo tshaj plaws thiab kev ua haujlwm tawm thiab tsim nyog rau kev siv lub zog siab, xws li UPS / EPS thiab cov chaw zov me nyuam nrog cov khoom hnyav tam sim no. Nws cov khoom siv high-purity muaj pes tsawg leeg ua rau nws ua tiav qhov kev tso tawm tus kheej tsawg heev, tso cai rau koj txaus siab rau qhov yooj yim nqa los ntawm lub roj teeb lub sijhawm tos ntev. Tsis tas li ntawd, qhov tseem ceeb ntawm nws qhov kev ua tau zoo yog nruab nrog lub adsorption iav fiber ntau muab faib, thiab nws cov roj sib xyaw ua haujlwm siab li 99 feem pua, yog li tsis tas yuav tsum muaj dej ntxiv thiab tsis muaj teeb meem txij nkawm.

Nta:

Lub High-Rate Discharge Batteries tau ua tib zoo tsim thiab muaj lub neej ua haujlwm ntev, thiab nws cov ntab tuaj yeem siv tau rau 6 txog 10 xyoo, ua rau nws muaj kev ntseeg siab rau cov khoom siv hluav taws xob, uas tsim nyog rau ntau yam kev siv los ntawm cov khoom siv hluav taws xob standby rau lub zog tauj dua tshiab. Nws PbCaSn alloy daim phiaj yog tsim tshwj xeeb rau kev siv hluav taws xob tawm hluav taws xob, uas tuaj yeem muab lub zog zoo ib yam thiab txhim khu kev qha thiab tsis txhob xau lossis tsis ruaj khov teeb meem siv hluav taws xob. Tsis tas li ntawd, nws tsis tas yuav ntxiv dej ntxiv thaum siv, thiab tuaj yeem muab kev saib xyuas tsis muaj kev paub, ua kom yooj yim thiab yooj yim rau tib neeg siv.

Daim ntawv thov:

1. hluav taws xob tshuab hluav taws xob

2.Computers 'backup fais fab mov

3.Data centers thiab base transceiver chaw nres tsheb

4.Emergency Power System

5. Cov khoom siv sib txuas lus

6. Cov khoom siv sib txuas lus

Tug

High-Rate Discharge Batteries
