PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 200 Aw
Dimension		Ntev Dav Thawv Qhov siab Tag nrho qhov siab		522 ± 2 hli (20.55 nti) 240 ± 2 hli (9.45 nti) 219 ± 2 hli (8.62 nti) 223 ± 2 hli (8.78 nti)
Qhov hnyav				Kwv yees li. 61.2Kg (134.92 lbs)
Standard Terminal				Bolt-thiab-ntsuab terminal Bolt hom: M8
						Shimastu Gel series Gel Batteries yog tsim los nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev. Nta: 1. Tshwj xeeb polar phaj tsim, uas ua kom ib tug tsim floating nqi lub neej ntawm 15 xyoo ntawm 25 degree (77⁰F ) 2. Kev faib tawm tam sim no sib npaug, cov khoom siv tsis yooj yim poob 3. High gas recombination efficiency 4. Zoo sib sib zog nqus paug resilience kev ua tau zoo 5. Tsis muaj delamination tshwm sim hauv cov electrolyte 6. Tsim los nrog high-porosity
ELECTRICAL SPECIFICATION
Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (20A) 5 teev tus nqi (34A) 3 teev tus nqi (50A) 1 teev tus nqi (120A)		200 Aw 170 Aw 150 Aw 120 Aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			2000A (5 sec)
Short Circuit Current			3430A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 4mΩ
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam sim no tsawg dua 50A Voltage 14.1 ~ 14.4V ntawm 25 degree (77⁰F ) Kub Coefficient -30mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77⁰F ) Kub Coefficient -20mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	477.1	352.1	216.7	124.0	56.6	37.9	25.4	21.2	11.0
1.65V	438.7	336.6	208.0	119.3	54.8	36.8	25.1	20.9	10.9
1.70V	404.0	315.3	198.9	114.8	53.3	35.9	24.7	20.5	10.7
1.75V	369.8	293.6	190.0	110.0	51.7	35.0	24.4	20.3	10.6
1.80V	334.8	271.0	181.8	106.1	50.0	34.0	24.0	20.0	10.5
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	789.4	615.7	397.7	233.2	108.0	73.1	50.0	41.8	21.7
1.65V	760.4	597.3	385.7	225.6	105.2	71.2	49.1	41.1	21.4
1.70V	712.9	567.7	372.4	218.3	102.7	69.6	48.5	40.6	21.1
1.75V	664.3	536.3	359.7	210.5	100.2	68.1	47.9	40.0	21.0
1.80V	611.7	502.2	347.2	204.0	97.1	66.5	47.3	39.3	20.8

Cim npe nrov: Tuam Tshoj hnub ci gel roj teeb 12v200ah, Tuam Tshoj hnub ci gel roj teeb 12v200ah manufacturers, lwm tus neeg, Hoobkas

Kev piav qhia
Shimastu SOLAR GEL BATTERY 12V200AH yog ib hom roj teeb uas muaj cov kua qaub, zoo li absorbed iav lev (AGM) roj teeb. Vim tias lawv tau "tau kaw lawm", cov roj teeb gel tsis xav tau lawv cov qib dej tshuaj xyuas thiab saib xyuas zoo li cov txheej txheem txhuas-acid, thiab lawv tsis tshem cov roj. Cov yam tseem ceeb no feem ntau ua rau SOLAR GEL BATTERY 12V200AH qhov kev xaiv muaj kev nyab xeeb dua li cov kev xaiv cov hmoov lead-acid ib txwm, vim lawv muaj ntau dua ntawm "teeb nws thiab tsis nco qab nws" cov khoom. Txij li cov roj teeb gel muaj qhov sib txawv ntawm sab hauv, koj tuaj yeem nruab SOLAR GEL BATTERY 12V200AH hauv ntau hom kev taw qhia thiab txoj haujlwm. Kev sib xyaw ua ke nrog cov pa qis dua / tsis muaj pa tawm thaum lub sijhawm ua haujlwm ua rau cov roj teeb gel siv tau rau hauv cov xwm txheej uas qhov cua tsuas yog txwv.

Nta
♦ Gelled electrolyte ua los ntawm kev sib xyaw sulfuric acid nrog silica fume.
♦ Gas Recombination thev naus laus zis ua kom lub roj teeb siab sealing reacting tus nqi, uas tuaj yeem tiv thaiv cov kua qaub los ntawm kev sib cais.
♦ Cov kab sib chaws tshwj xeeb & tshwj xeeb zoo / tsis zoo cov hmoov txhuas muab tshuaj txhuam ua rau lub roj teeb ua tau zoo nyob rau hauv lub voj voog sib sib zog nqus siv thiab rov qab sai sai thaum tshaj tawm thiab txuas ntxiv lub neej kev pab cuam ntab.
♦ Siv cov khoom siv purity siab thiab cov gel electrolyte kom cov roj teeb muaj tsawg dua tus kheej.

Daim ntawv thov
1. Hnub ci thiab cua zog cia qhov system
2. EPS thiab UPS roj teeb thaub qab
3. Cov khoom siv tswj kev sib txuas lus
4. Cov khoom siv marine
5. Cov khoom siv kho mob

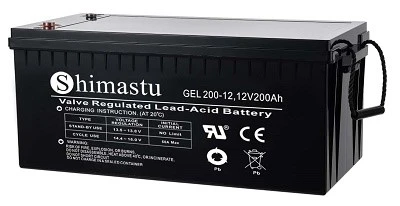

Hnub Ci GEL roj teeb 12V200AH
