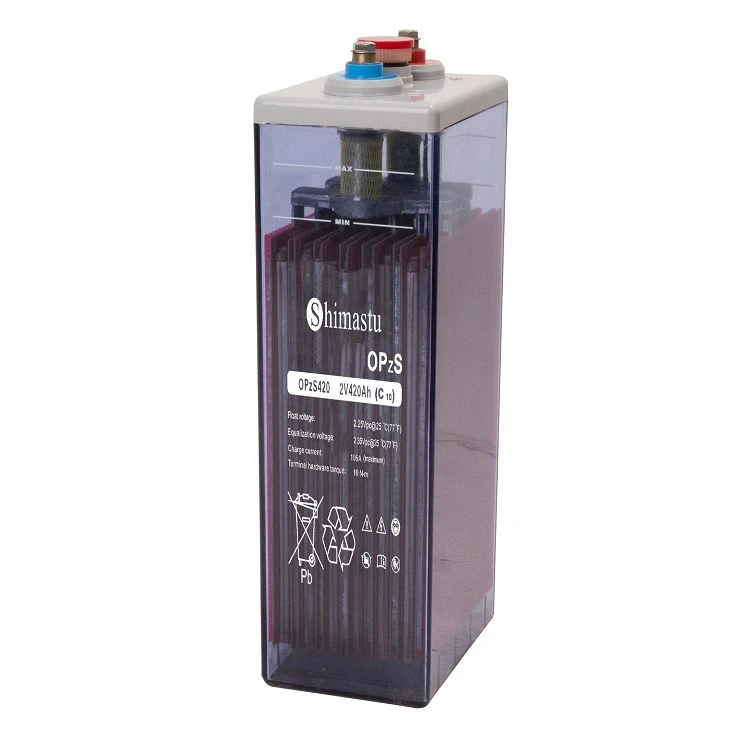

OPzS 420 roj teeb

- Tubular zoo daim hlau nrog tshwj xeeb qis antimony txhuas alloy txo qhov poob dej (3- xyoo topping-up ncua sij hawm ntawm fl oat mob)
- Muaj peev xwm tshaj DIN nominal tus nqi
- Electrolyte: siab purity sulfuric acid tov nrog 1,24 lub ntiajteb txawj nqus ntawm 20 degree

Xa kev nug

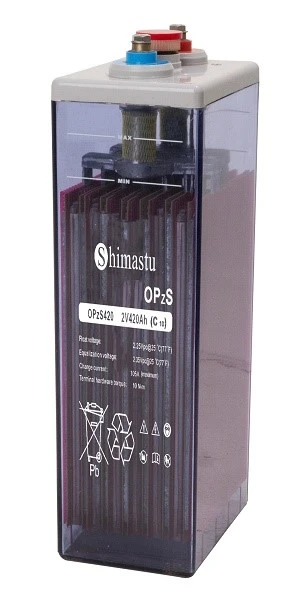

				OPzS420 Tubular Roj teeb
PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				2V 4 20 aw
Dimension		Ntev Dav Thawv Qhov siab Tag nrho qhov siab		145 ± 2 hli (5.71 nti) 206 ± 2 hli (8.11 nti) 471 ± 2 hli (18.54 nti) 526 ± 2 hli (20.70 nti)
Qhov hnyav				Kwv yees li. 32 Kg ± 3% (70.53 lbs)
Standard Terminal				Bolt-and-nuts davhlau ya nyob twg Bolt hom: M8

ELECTRICAL SPECIFICATION
Yam ntxwv						Qhov Zoo Tshaj Plaws
Muaj peev xwm			20 teev tus nqi (24.82A t0 1.80v/cell) 10 teev tus nqi (42.25A t0 1.80v/cell) 5 teev tus nqi (72.16A t0 1.75v/cell) 1 teev tus nqi (242.3A t0 1.60v/cell)		496.4 ua 422.5 ua 360,8 ua 242.3 ua
Kev khiav hauj lwm Temp. Ntau yam			Tawm: -20 degree ~ 55 degree Them nqi: -10 degree ~ 45 degree Cia: -15 degree ~ 45 degree
Max. Tshem tawm tam sim no			2000A (5 sec)
Short Circuit Current			4500A

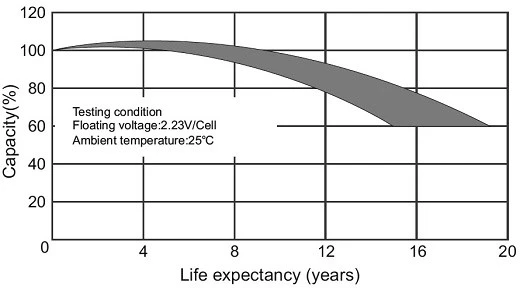

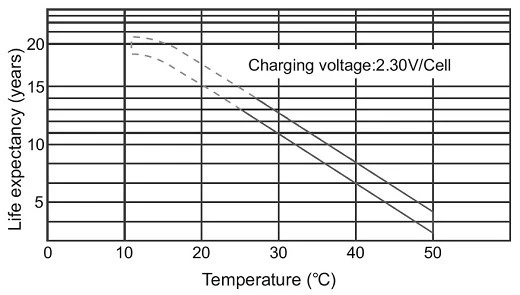

Tsim lub neej			20 xyoo (loj) ntawm 25 degree (77⁰F)
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 0.5mΩ

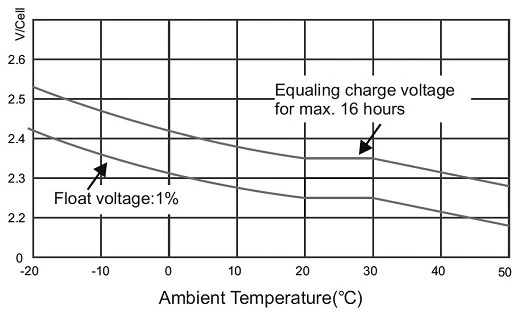

Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam Sim No Tsawg dua: Tsawg dua lossis sib npaug li 100A Voltage: 2.35 ~ 2.40V ntawm 25 degree (77⁰F ) Kub Coefficient -5mV / degree

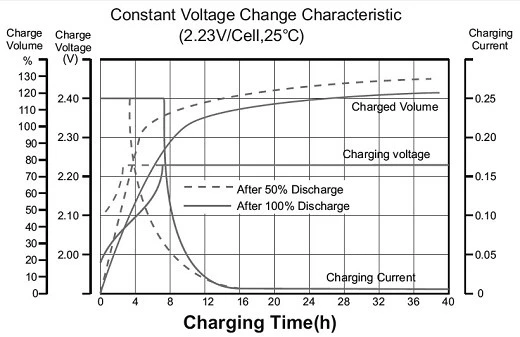

	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage: 2.23V ntawm 25 degree (77⁰F ) Kub Coefficient -3mV / degree

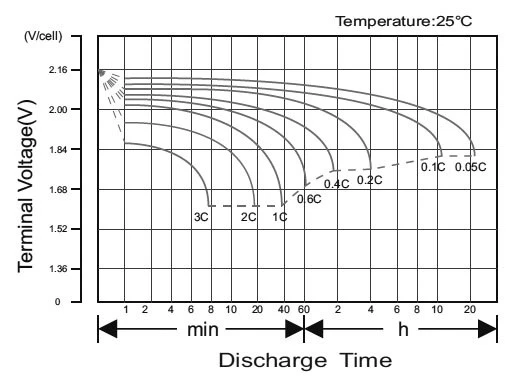

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	30 feeb	1h	2h	3h	4h	5h	8h	10h	24h
1.60V	354	242	151	109	87	75	53.6	44.6	19.82
1.65V	342	237	148	107	86	74	53.2	44.3	19.80
1.70V	328	230	144	106	85	73	52.5	44.1	19.61
1.75V	316	223	141	103	83	72	51.6	43.5	19.28
1.80V	289	212	135	101	81	70	50.3	42.1	18.82
1.85V	256	197	128	98	79	68	48.8	41.6	18.23
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	30 feeb	1h	2h	3h	4h	5h	8h	10h	24h
1.60V	645	446	279	202	161	139	99.6	82.8	37.00
1.65V	630	437	273	199	159	137	98.8	82.5	36.92
1.70V	605	424	267	196	158	135	97.5	82.0	36.50
1.75V	584	414	262	192	155	134	96.2	81.3	36.20
1.80V	539	399	255	191	154	133	95.5	79.5	35.74
1.85V	487	374	244	187	151	130	93.7	79.8	35.32

OPzS420 Tubular Roj teeb

Cim npe nrov: opzs 420 roj teeb, Tuam Tshoj opzs 420 roj teeb manufacturers, lwm tus neeg, Hoobkas

Technical nta
- Tubular zoo daim hlau nrog tshwj xeeb qis antimony txhuas alloy txo qhov poob dej (3- xyoo topping-up ncua sij hawm ntawm fl oat mob)
- Muaj peev xwm tshaj DIN nominal tus nqi
- Electrolyte: siab purity sulfuric acid tov nrog 1,24 lub ntiajteb txawj nqus ntawm 20 degree
- Pasted daim phiaj tsis zoo daim phiaj tsim kom muaj kev pabcuam lub neej raws li daim phiaj zoo
- Separators nrog porosity siab heev thiab tsis tshua muaj kev tiv thaiv sab hauv
- Ntim hauv acid resistant SAN, tsim rau unsurpassed mechanical zog
- Lub hau hauv tus qauv ABS
- Threaded poj niam M10 davhlau ya nyob twg posts lav siab tshaj plaws conductivity, siab tshaj plaws torque tuav thiab yooj yim installation
- Kev ntseeg siab siab tshaj plaws tsim los tiv thaiv electrolyte to thiab davhlau ya nyob twg corrosion
- Ceramic plugs lim electrolyte los ntawm kev khiav tawm gasses
- Cov nplaim taws tiv thaiv cov nplaim taws los yog nplaim taws nkag mus rau hauv lub roj teeb

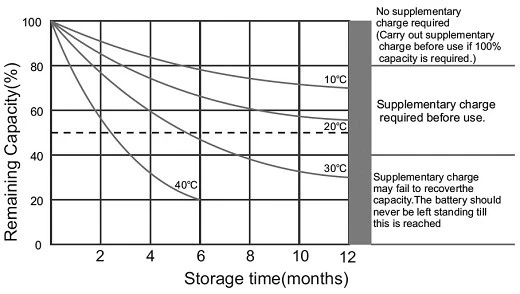

- <3% self-discharge per month at 20°C allows 6 months shelf life
- Kev teeb tsa hauv txoj haujlwm ntsug
- Slexible, tag nrho insulated cable connectors nrog insulated ntsia hlau nrog sojntsuam qhov nyob rau sab saum toj rau hluav taws xob ntsuas

Daim ntawv thov
- IT thiab Telecom network ua haujlwm
- Cov chaw tsim hluav taws xob thiab kev faib hluav taws xob
- Teeb pom kev kub ceev thiab kev ruaj ntseg
- Automation & Muaj zog thaub qab
- Railway, tshav dav hlau & Seaport signaling
- Lwm daim ntawv thov hauv thaj chaw uas tsis muaj zog txaus
