Specification:

Qauv	Nominal voltage	Nominal Peev Xwm	Qhov ntev						Ht.Over Terminal		Nyhav Approx (kg)		Terminals
	Nominal voltage	Nominal Peev Xwm	L		W		H		Ht.Over Terminal		Nyhav Approx (kg)
	(v)	(Ah)	hauv	mm	hauv	mm	hauv	mm	hauv	mm	kg	ib lb
GEL100-2	2	100	6.73	171	2.83	72	8.07	205	8.27	210	5.9	13	B05
GEL200-2	2	200	6.81	173	4.37	111	12.95	329	14.37	365	13.5	29.75	B05
GEL300-2	2	300	6.73	171	5.94	151	12.99	330	14.41	366	19.5	42.98	B05
GEL400-2	2	400	8.31	211	6.93	176	12.95	329	14.45	367	27	59.5	B05
GEL500-2	2	500	9.49	241	6.77	172	13.03	331	14.33	364	32.8	72.29	B05
GEL600-2	2	600	11.85	301	6.89	175	13.03	331	14.41	366	40	88.16	B05
GEL800-2	2	800	16.14	410	6.89	175	12.99	330	14.37	365	55	121.2	B05
GEL1000-2	2	1000	18.7	475	6.85	174	12.91	328	14.37	365	63.5	140	B05
GEL1500-2	2	1500	15.79	401	13.82	351	13.5	343	14.88	378	110	242.2	B05
GEL2000-2	2	2000	19.33	491	13.82	351	13.54	344	15.08	383	134	295	B05
GEL150-6	6	150	10.24	260	7.09	180	9.72	247	9.92	252	23.8	52.46	B01
GEL180-6	6	180	12.05	306	6.61	168	8.66	222	8.74	227	27.1	59.74	B01
GEL200-6	6	200	12.72	323	7.01	178	8.82	224	9.02	229	30.2	66.58	B01
GEL225-6	6	225	10.24	260	7.09	180	9.72	247	10	254	30.5	67.24	B01
GEL24-12	12	24	6.89	175	6.49	165	4.96	126	4.96	126	8	17.64	Q04(B03)
GEL26-12	12	26	6.89	175	6.49	165	4.96	126	4.96	126	8.4	18.52	Q04(B03)
GEL26-12SX	12	26	6.5	165	4.96	126	6.89	175	7.17	182	9	19.84	Q05

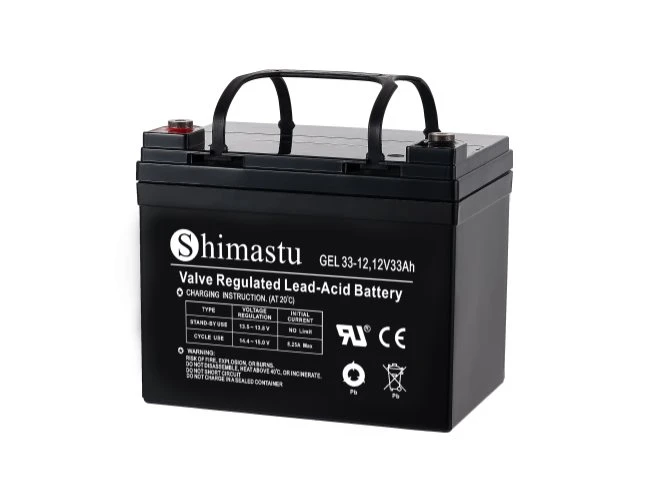

GEL33-12	12	33	7.72	196	5.16	131	6.42	163	6.61	168	10.8	23.81	Q06
GEL38-12	12	38	7.8	198	6.54	166	6.69	170	6.69	170	12.4	27.34	Q07(B04)
GEL40-12	12	40	7.8	198	6.54	166	6.69	170	6.69	170	13	28.65	Q07(B04)

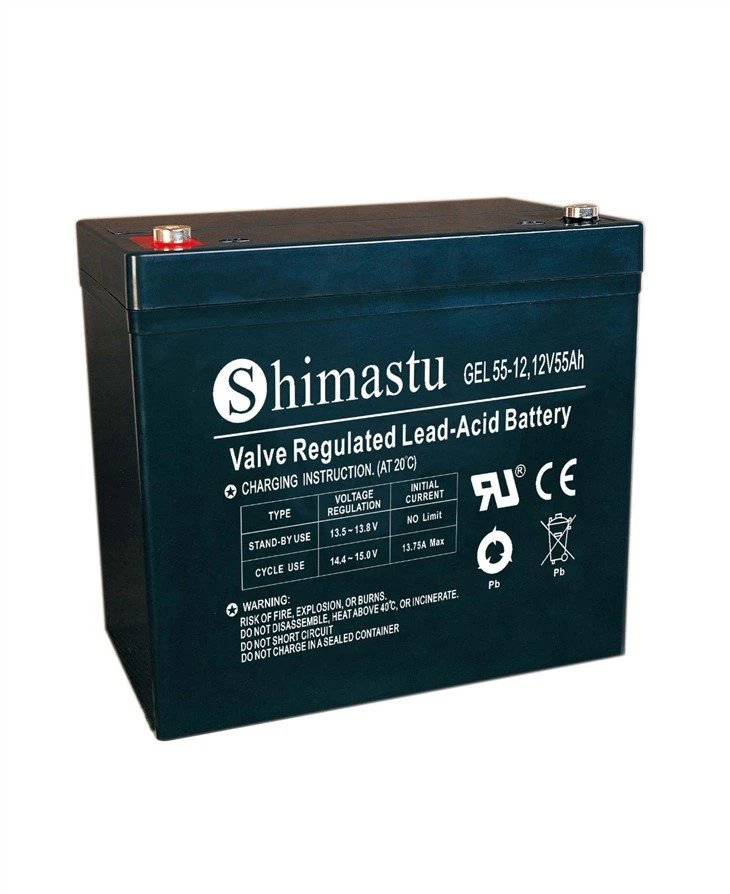

GEL55-12	12	55	9.02	229	5.43	138	8.19	208	8.39	213/227	17	37.48	Q08(B04)
GEL60-12	12	60	10.12	257	5.24	133	7.87	200	7.87	200	18.1	39.89	Q09
GEL65-12	12	65	13.78	350	6.57	167	6.81	173	6.81	173	20	44.09	Q10(B04)

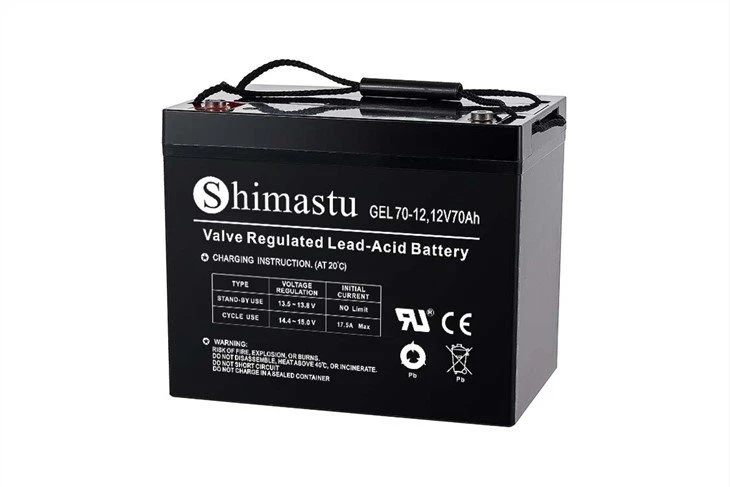

GEL70-12	12	70	10.2	259	6.65	168	8.19	208	8.39/8.94	213/217	21.7	47.84	Q11(B04)
GEL80-12	12	80	13.78	350	6.54	166	6.85	174	6.85	174	22.8	50.26	Q12
GEL90-12	12	90	12.09	307	6.65	169	8.19	210	8.46	215	26.2	57.76	Q13
GEL100-12	12	100	13.03	331	6.77	172	8.5	216	8.74/9.57	222/243	28.5	62.83	Q14(B04)
GEL120-12	12	120	16.02	407	6.85	174	8.23	209	9.37	238	35.5	78.26	Q15(B04)
GEL134-12	12	134	15.38	340	6.81	173	11.02	280	11.26	286	40	88.16	88.6
GEL150-12	12	150	19.09	485	6.69	170	9.49	241	9.49	241	44	97	Q16(B05)

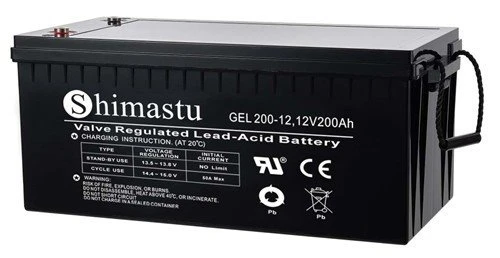

GEL200-12	12	200	20.55	522	9.45	240	8.62	219	8.78/9.65	223/245	61.2	134.92	Q17(B06
GEL250-12	12	250	20.47	520	10.59	269	8.66	220	8.86	225	73	160.94	B05

Cim npe nrov: gel roj teeb, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, kev cai, lag luam wholesale, nqe, ntshuam, ua nyob rau hauv Suav teb

Shimastu Gel series Gel Batteries yog tsim los nrog tshwj xeeb cais thiab silica gel immobilizing cov electrolyte hauv lub roj teeb, nws yog qhov zoo tshaj plaws rau kev sib sib zog nqus sib sib zog nqus tawm los yog kev siv standby nyob rau hauv ib puag ncig hnyav, thiab muaj lub neej ua haujlwm ntev.

Nta:

1. Tshwj xeeb polar phaj tsim, uas ua kom ib tug tsim floating nqi lub neej ntawm 15 ~ 20 xyoo

2. Kev faib tawm tam sim no sib npaug, cov khoom siv tsis yooj yim poob

3. High gas recombination efficiency

4. Zoo sib sib zog nqus paug resilience kev ua tau zoo

5. Tsis muaj delamination tshwm sim hauv cov electrolyte

6. Tsim los nrog high-porosity

7. Tshwj xeeb PbCaSn alloy rau phaj daim phiaj, uas txhawb nqa daim phiaj tiv thaiv kev ua haujlwm zoo thiab txuas ntxiv lub roj teeb siv lub neej.

8.Siv tshwj xeeb cais los txhim kho lub roj teeb kev ua tau zoo

9. Low self-discharge rate < 0.08 %/day , at 20℃>;

10. Thaum tshav kub kub sealing txheej txheem es tsis txhob ntawm cov k
