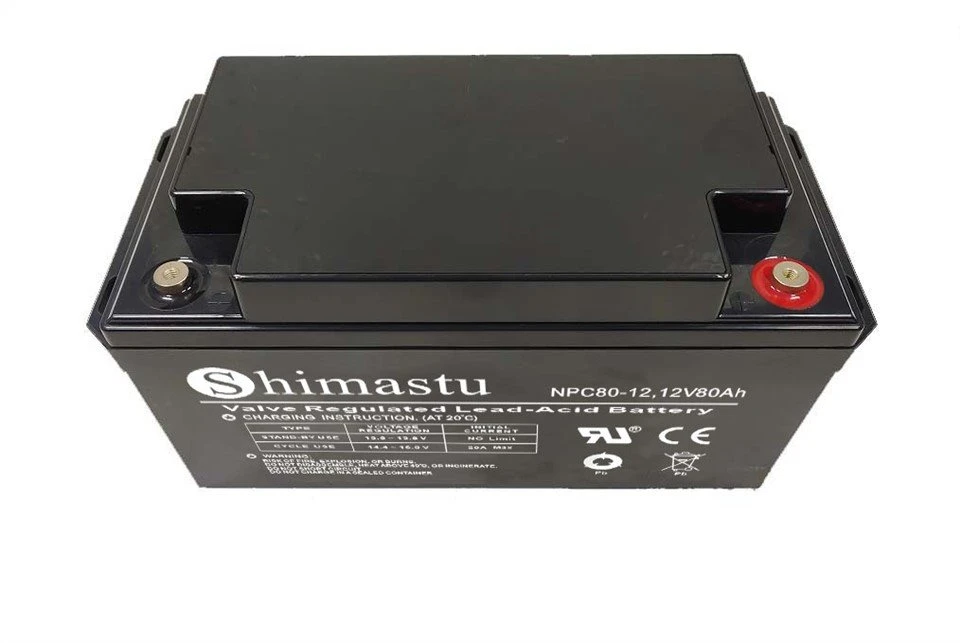

12V 80Ah Deep Cycle Roj teeb

Shimastu 12v 80ah sib sib zog nqus voj voog roj teeb tshwj xeeb tsim los rau kev siv cov khoom siv hauv tsev, ua kom zoo tshaj plaws los muab cov khoom siv hluav taws xob siab txhawb kev siv xws li teeb pom kev kub ntxhov, khoom siv hluav taws xob tsis cuam tshuam (UPS), cov cuab yeej siv xov tooj, hloov iav, kev ruaj ntseg thiab ntau yam khoom siv ntxiv uas muab lub zog offline rau cov kev pabcuam tseem ceeb hauv tsev.


PHYSICAL SPECIFICATION
Nominal voltage Nominal Peev Xwm (10HR)				12V 80 aw ah
Dimension		Ntev Dav Thawv qhov siab Tag nrho qhov siab		259 ± 2 hli (10.20 nti) 168 ± 2 hli (6.61 nti) 208 ± 2 hli (8.23 nti) 213 ± 2 hli (8.94 nti)
Qhov hnyav				Kwv yees li. 23.1 Kg ± 3% (50.93bs)
Standard Terminal				Bolt-thiab-ntsuab terminal Bolt hom: M6
						Shimastu NPC series Deep Cycle Batteries yog cov roj teeb sib sib zog nqus uas tsim los ua kom tsis tu ncua kev tso tawm ntau ntawm nws lub peev xwm, nws cov roj teeb feem ntau siv rau hnub ci off-daim phiaj thiab hybrid zog cia, nrog rau ntau lwm yam kev siv. Nta: 1.Wide tiv thaiv kev ua haujlwm kub ntawm -20 degree ( -4℉) txog 50 degree (122℉). 2. Txhua hli tus kheej tawm tus nqi qis dua 2 feem pua ntawm 25 degree (77℉). 3. Lub roj teeb muaj kev ua haujlwm zoo tshaj plaws hauv kev txij nkawm-dawb, tom qab 12 lub hlis, nws qhov chaw cia tseem tuaj yeem ncav cuag 65 feem pua, uas yog cov kev daws teeb meem zoo rau lub hnub ci, cua tshuab hluav taws xob thiab lwm lub tshuab hluav taws xob txuas ntxiv. 4.Tshwj xeeb polar phaj tsim, uas ua kom lub neej ntev mus txog 12 xyoo hauv kev pabcuam ntab.
ELECTRICAL SPECIFICATION
Yam ntxwv						Tshem tawm curves @ 25 degree (77 degree F)
Muaj peev xwm			10 teev tus nqi (8A) 5 teev tus nqi (13.6A) 3 teev tus nqi (20A) 1 teev tus nqi (44A)		80 aw ah 68 aw ah 60 Aw 44 Aw
Muaj peev xwm cuam tshuam los ntawm qhov kub thiab txias			40 degree (104⁰F） 25 degree (77⁰F） 0 degree (32⁰F）		102 feem pua 100 feem pua 85 feem pua
Max tawm tam sim no			800A (5 sec)
Short Circuit Current			1840A
Internal Resistance			Lub roj teeb tag nrho (25 degree, 77⁰F) 6mΩ
Tsim lub neej			Ntau dua lossis sib npaug rau 700 Cycles @ 50 feem pua DOD (25 degree)
Tsis tu ncua Voltage Them nqi	Lub voj voog		Pib Them Tam sim no tsawg dua 20A Voltage 14.1 ~ 14.4V ntawm 25 degree (77⁰F ) Kub Coefficient -18mV / degree
	Standby		Tsis muaj kev txwv rau Initial Charging Current Voltage 13.5 ~ 13.8V ntawm 25 degree (77⁰F ) Kub Coefficient -18mV / degree

NTAUB NTAWV TAM SIM NO RATING A@25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	192.3	144.8	86.5	49.6	22.6	15.2	10.2	8.46	4.41
1.65V	181.7	138.4	83.2	47.7	21.9	14.7	10.0	8.35	4.35
1.70V	167.3	129.6	79.6	45.9	21.3	14.4	9.89	8.22	4.29
1.75V	153.1	120.7	75.8	44.0	20.7	14.0	9.75	8.10	4.24
1.80V	138.6	111.4	72.5	42.4	20.0	13.6	9.59	8.00	4.20
Lub Hwj Chim Ruaj Ntseg WATT PER CELL @ 25 degree
FV/TSI	10 MIN	15 MIN	30 MIN	1 HR	3 HR	5 HR	8 HR ua	10 HR	20 HR
1.60V	326.9	253.1	157.1	93.3	43.2	29.3	20.0	16.7	8.67
1.65V	314.8	245.6	152.7	90.2	42.1	28.5	19.7	16.5	8.56
1.70V	295.3	233.5	147.5	87.3	41.1	27.8	19.4	16.2	8.45
1.75V	275.0	220.4	142.0	84.2	40.1	27.2	19.2	16.0	8.37
1.80V	253.3	206.4	137.1	81.6	38.8	26.6	18.9	15.7	8.32

Cim npe nrov: 12v 80ah sib sib zog nqus voj voog roj teeb, Tuam Tshoj 12v 80ah sib sib zog nqus voj voog roj teeb manufacturers, lwm tus neeg, Hoobkas

Qhov no yog lub roj teeb muaj zog thiab siv tau ntev uas feem ntau siv rau ntau yam kev siv. Hom roj teeb no yooj yim pom nyob rau hauv kev ua lag luam rau lub hnub ci fais fab kev lag luam, kev siv dej hiav txwv, mus pw hav zoov thiab lwm yam dej num uas yuav tsum tau muaj lub zog nqa tau. Ib qho ntawm qhov txawv ntawm 12V 80Ah Deep Cycle Battery yog lawv lub peev xwm sib sib zog nqus. Sib sib zog nqus voj voog txhais tau hais tias lub roj teeb tuaj yeem tawm mus txog 80 feem pua ntawm nws lub peev xwm them tag nrho yam tsis muaj kev cuam tshuam lub roj teeb kev ua haujlwm lossis lub neej ntev. Yog li ntawd, nws tuaj yeem muab lub zog siv tau ntau dua li lwm hom roj teeb uas muaj tus nqi qis dua.

Specifications

● Nominal muaj peev xwm: 80Ah (10h tus nqi)

● Kev them nyiaj ntau tshaj tam sim no: 800A (5sec)

● luv Circuit Court tam sim no: 1840A

● Tus nqi tso tawm tus kheej:<1% per month

● Lub neej voj voog ntawm 30 feem pua DOD: 1500

● Kev tswj lub siab: kev ruaj ntseg valve ntsia

● Terminal hom: M8 (Bolt-and-nut)

● Ua haujlwm kub: los ntawm -20C mus rau 60C

● Loj: 259 x 168 x 208mm

● Nyhav: 23.1kg

Nta

Lub 12V 80Ah Deep Cycle Battery yog tsim los ntawm cov ntaub ntawv zoo uas tiv taus kev puas tsuaj los ntawm lwm yam xws li kev co, kev poob siab thiab kub heev. Ntxiv rau, nws tau kaw los tiv thaiv cov khoom sab hauv los ntawm plua plav, noo noo, thiab lwm yam teeb meem. Lwm qhov tseem ceeb ntawm nws yog nws rechargeability. Nws tuaj yeem raug them siv ntau txoj hauv kev xws li hnub ci vaj huam sib luag, AC chargers thiab generators. Qhov no yog qhov yooj yim heev rau cov neeg siv uas xav kom muaj lub zog txhim khu kev qha uas tuaj yeem them sai sai thiab yooj yim. Thaum nws los txog rau kev nyab xeeb, peb muaj ob peb lub built-in nta l
